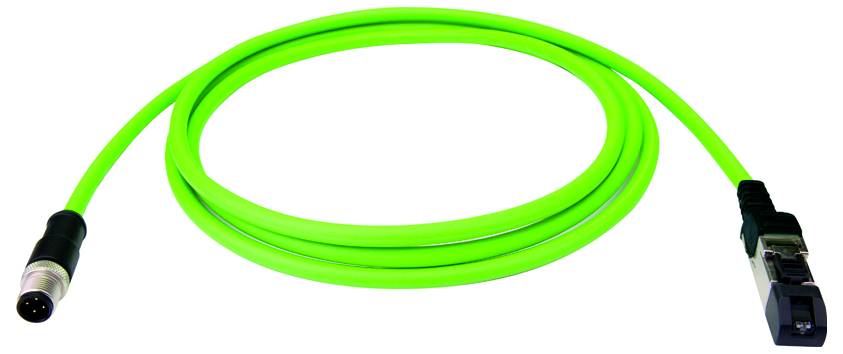

Telegärtner 100017296 Cable connection Plug 1 pc(s)

The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 4-pin, D-coded compact connector in CAT.5, the M12 from Telegärtner can transfer data rates up to 100 Mbit/s in the PROFINET environment.

Specifications:
D-coding according to plug connector standard IEC 61076-2-101,
RJ45 according to plug connector standard IEC 60603-7-51,
Fast-Ethernet according to IEEE 802.3,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.5 according to ISO/IEC 11801; DIN EN 50173-1,
Protection class IP67 | IP20

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant

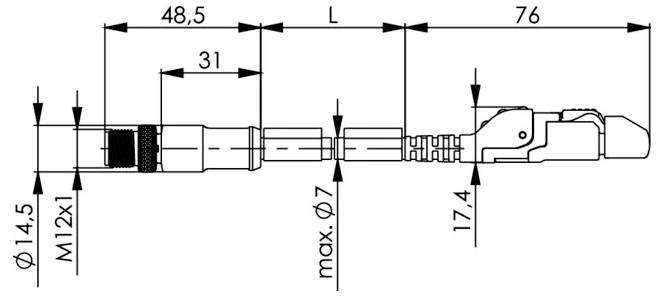

Version: Page 1: M12x1 Cable plug D-coded, IP67; Page 2: RJ45 Cable plug IP20
Name:STX M12x1-RJ45 VL D-cod. CAT 5
Colour: Sleeve: Black; sheath: Green
SHORT NAME: CP02CP04ASFUTP2207C5-1PUR-A1000
Length: 10 m

This text is machine translated.
