Name: Telegärtner 100017433 Cable connection M12 x 1 Socket 2 m No. of pins (RJ): 8 1 pc(s)
Brand: Telegärtner
SKU: 3737224
Availability: InStock

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

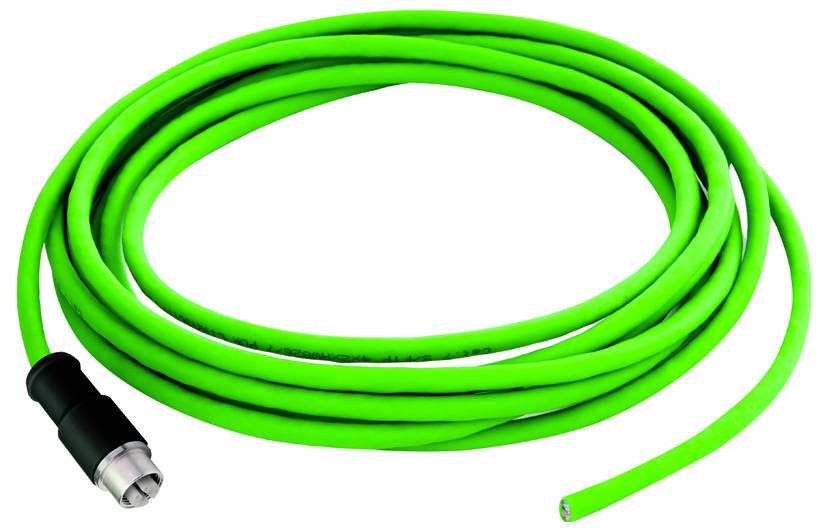

Green coiled cable or hose with a black metal connector on one end, isolated on a white background.

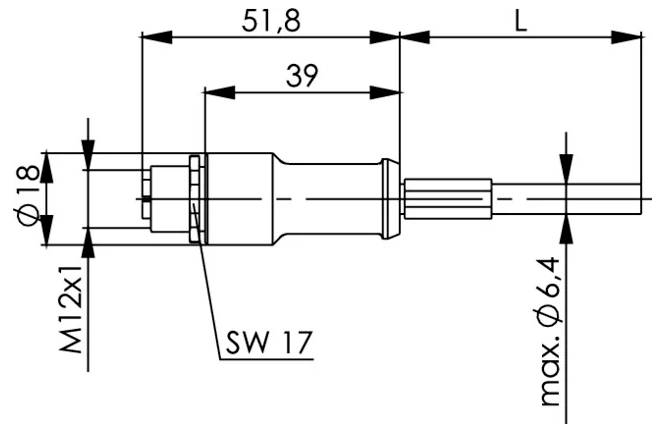

Technical line drawing of a cylindrical connector with dimensions labeled 51.8, 39, L, Ø18, M12x1, SW 17, and max. Ø6.4.

1/2

Image similar

Product type

Cable connection

Connector type

Socket

Connector standard

Sensor connector

Connection side A

M12

Connection side B

Cable, open end

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

STX M12x1 VL X-coding CAT.6A(IEC), CS02FC00B-SFTP2607C7-1PUR-A0200

Our service for you

Technical specifications

Type: 100017433

Product type: Cable connection

Connector type: Socket

Connector standard: Sensor connector

Connection side A: M12

Connection side B: Cable, open end

No. of pins: 8

Cable length: 2 m

Jacket material: PUR

Connection: Open cable ends

Factory colour: Green

Thread type connection side: M12 x 1

Thread type (wiring and installation): M12 x 1

Coding: X

: IP67

Features: X-coded

Manufacturer part #: 100017433

Content: 1 pc(s)

RoHS-compliant: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3737224 Telegärtner 100017433 Cable connection M12 x 1 Socket 2 m No. of pins (RJ): 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3737224 Telegärtner 100017433 Cable connection M12 x 1 Socket 2 m No. of pins (RJ): 8 1 pc(s)

Description

The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 8-pin, X-coded, compact connector in CAT.6A (ISO/IEC), the M12 can transfer data rates up to 10 Gbit/s from Telegärtner.

Specifications:
X-coding according to connector standard IEC 61076-2-109,
10 Gigabit Ethernet according to IEEE 802.3an,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.6A (ISO/IEC) according to ISO/IEC 11801; DIN EN 50173-1,
UL listed
IP67protection class

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Version: Page 1: M12x1 Cable socket, IP67; Page 2: Open cable end
Designation: STX M12x1 VL X-cod. CAT.6A (ISO/IEC)
Colour: Sleeve: Black; sheath: Green
SHORT NAME: CS02FC00B-SFTP2607C7-1PUR-A0200
Length: 2 m
