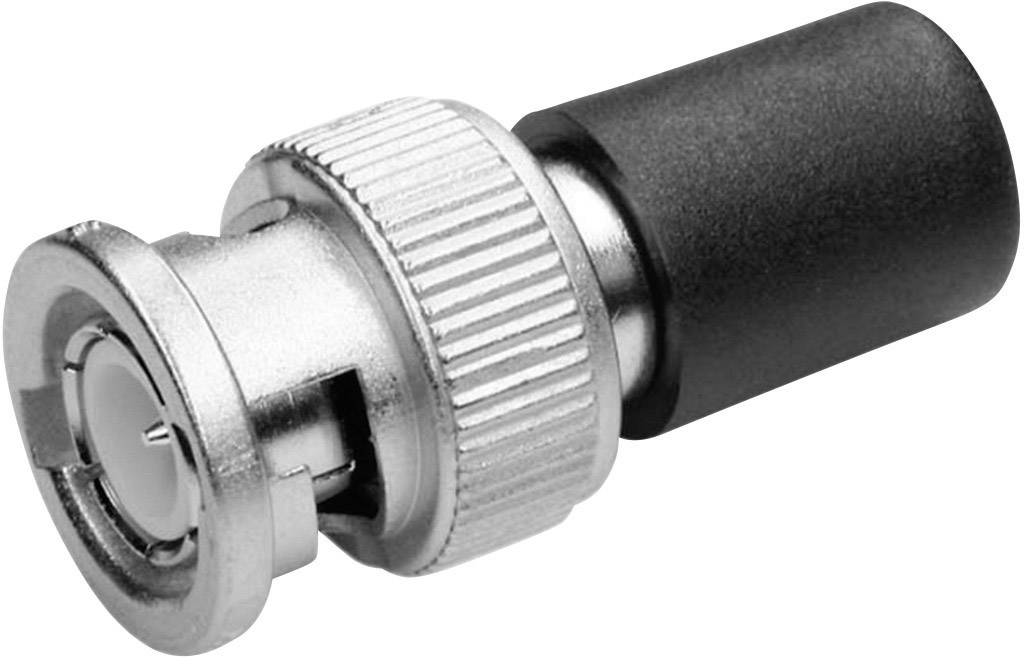

A BNC plug with a black, cylindrical handle and metallic locking mechanism, used in coaxial cable connections.

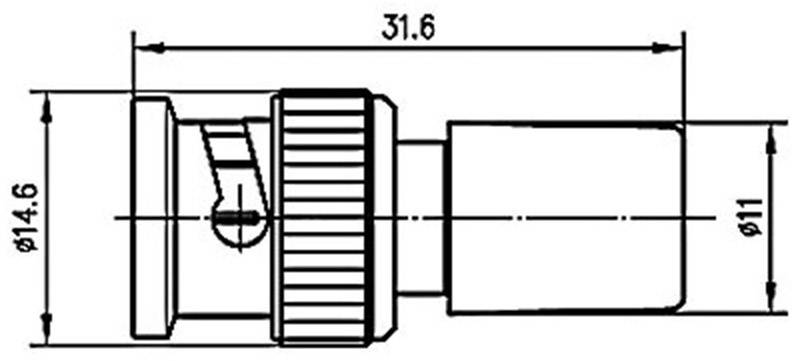

Technical drawing of a connector with the following dimensions: total length 31.6 mm, diameter 14.6 mm (left part) and 11 mm (right part).

1/2

Content

1 pc(s)

Impedance

75 Ω

Manufacturer part #

100023627

Temperature range

-40 - 100 °C

Type

100023627

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.87 / piece)

€ 5.87

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

BNC terminating resistor 75 Ohm

Our service for you

Technical specifications

Content: 1 pc(s)

Impedance: 75 Ω

Manufacturer part #: 100023627

Temperature range: -40 - 100 °C

Type: 100023627

Documents & Downloads

Datasheet

Datasheet 1090837 Telegärtner 100023627 100023627 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1090837 Telegärtner 100023627 100023627 1 pc(s)

Description

The BNC series is the most commonly used coax connector. With its bayonet coupling mechanism this connector can be used up to 4 GHz. Both 50 and 75 Ω impedances are available. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the BNC connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques. Both crimp and clamp cable termination processes are used for this series. BNC connectors are used for signal, data and video transmission applications.
