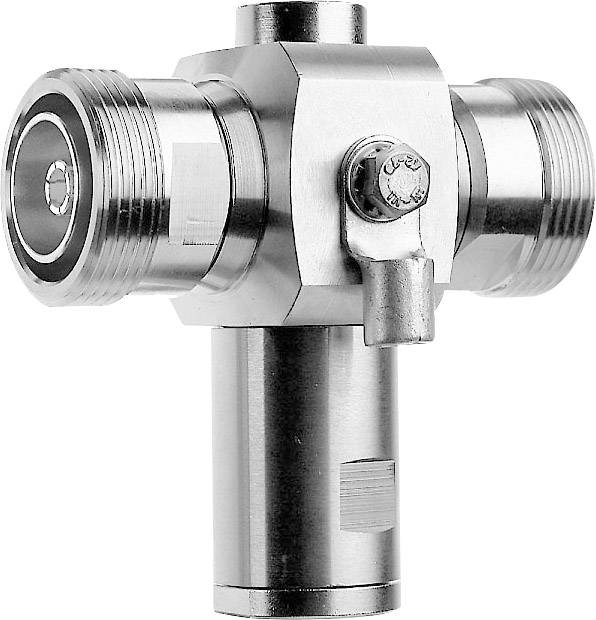

Telegärtner 100024574 100024574 Surge protector 1 pc(s) Piece
Packaging type
Piece
Product type
Surge protector
Content
1 pc(s)
Impedance
50 Ω
Manufacturer part #
100024574
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
14-day return policy included
Highlights & Details
7-16 DIN surge suppressor
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Surge protector
- Content
1 pc(s)
- Impedance
50 Ω
- Manufacturer part #
100024574
- Compatible with
7-16 DIN socket
7-16 DIN plug
- Temperature range
-40 - +85 °C
- Type
100024574
Documents & Downloads
Datasheet
Datasheet 1366920 Telegärtner 100024574 100024574 Surge protector 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 1366920 Telegärtner 100024574 100024574 Surge protector 1 pc(s) Piece
Description
The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
