Buy Telegärtner 100024830 100024830 1 pc(s) Piece

Small, gold-coloured electrical adapter with two ports. Labelled with technical specifications for frequency and attenuation.

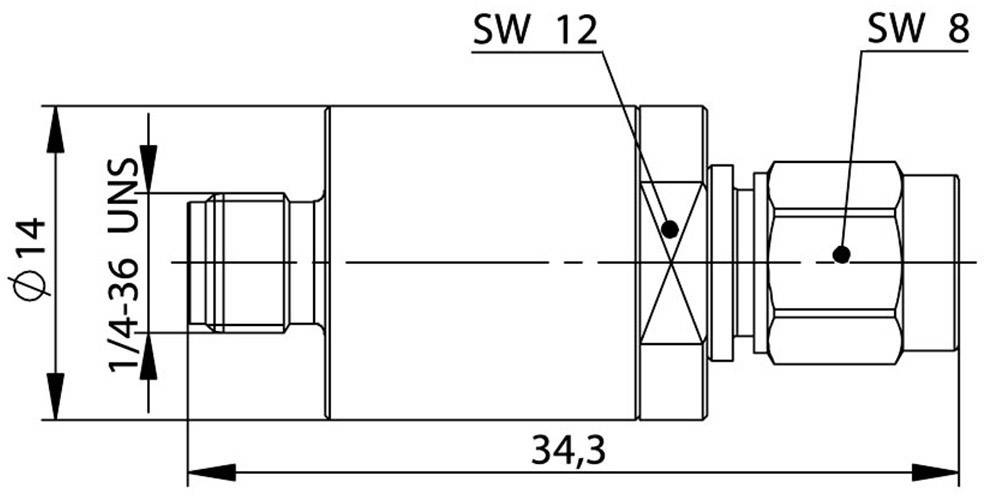

Technical drawing of a pipe connector with dimensions: Diameter 14 mm, Thread 1/4-36 UNS, Total length 34.3 mm, Spanner sizes SW 12 and SW 8.

1/2

Packaging type

Piece

Content

1 pc(s)

Impedance

50 Ω

Manufacturer part #

100024830

Power

2 W

Datasheet (PDF)

Fast track dispatch on Wed, 16 Sep

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 70.58 / piece)

€ 70.58

plus VAT.

Report legal concerns

Highlights & Details

SMA attenuator 10 dB

Our service for you

Technical specifications

2 Watt

Packaging type: Piece

Content: 1 pc(s)

Impedance: 50 Ω

Manufacturer part #: 100024830

: 2 W

Compatible with: SMA socket

Type: 100024830

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1090938 Telegärtner 100024830 100024830 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 1090938 Telegärtner 100024830 100024830 1 pc(s) Piece

Description

The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fittechniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.
