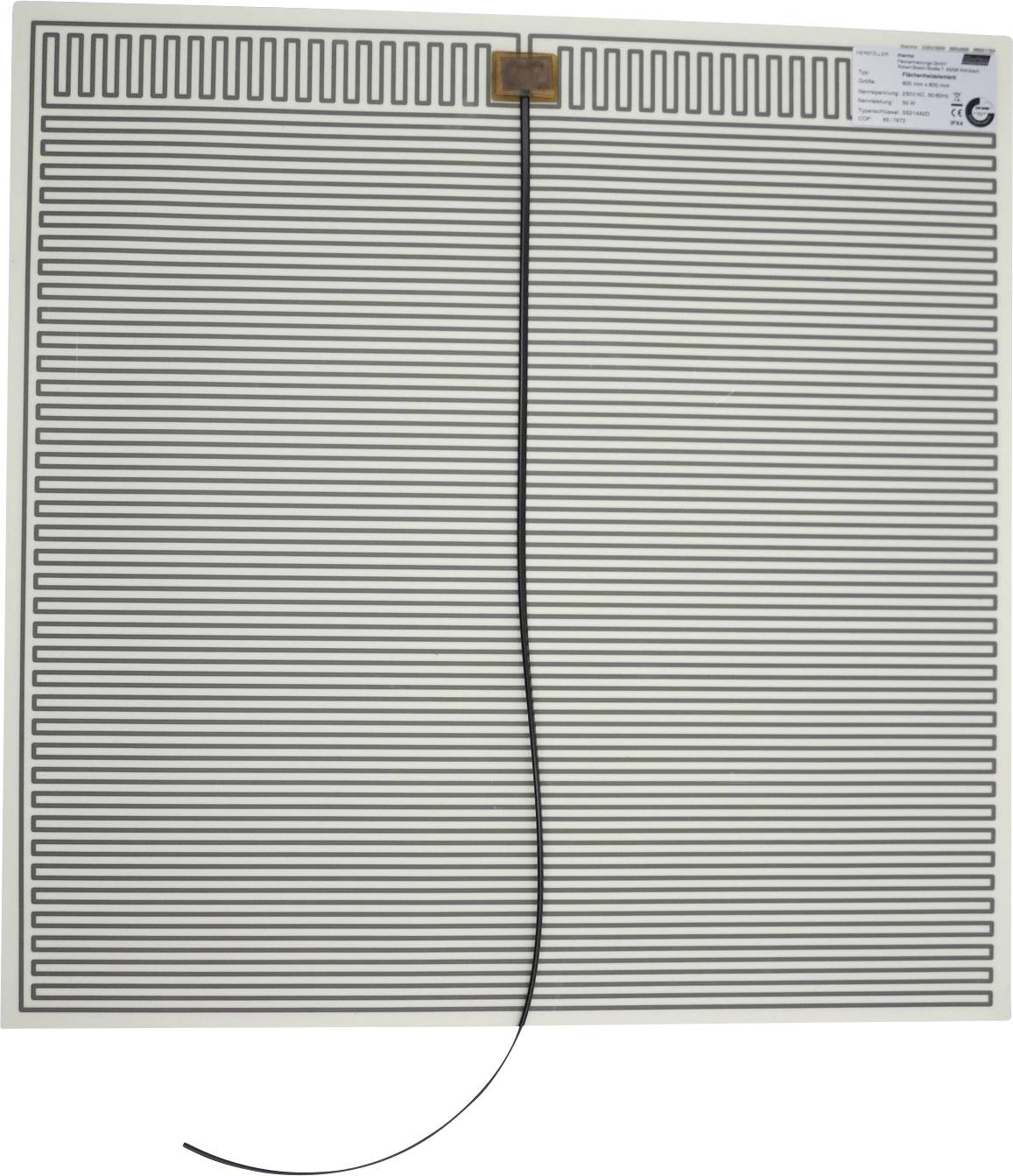

Thermo TECH Heating foil self-adhesive 230 V AC, 230 V DC 50 W IP rating IPX4 (L x W) 600 mm x 600 mm
Product type
Heating foil
Operating voltage
230 V AC
230 V DC
Power
50 W
IP rating
IPX4
Length
600 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
Only 2 Piece(s) available
Technical specifications
- Heat density 0.014 W/cm²
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
230 V AC
230 V DC
50 W
- Material thickness
0.30 mm
- Lead length
800 mm
IPX4
- Min. surface temperature
-40 °C
- Max. surface temperature
+90 °C
- Length
600 mm
- Width
600 mm
- Dim
(L x W) 600 mm x 600 mm
Documents & Downloads
Datasheet
Datasheet 3742793 Thermo TECH Heating foil self-adhesive 230 V AC, 230 V DC 50 W IP rating IPX4 (L x W) 600 mm x 600 mm
User & Safety Instructions
User & Safety Instructions 3742793 Thermo TECH Heating foil self-adhesive 230 V AC, 230 V DC 50 W IP rating IPX4 (L x W) 600 mm x 600 mm
Description
Fully self-adhesive surface-adhesive, connection cable H03VVH2-F 2x0.75 mm2, black, oval, approx. 800 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
