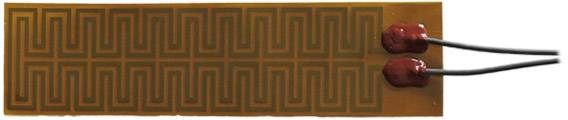

Thermo TECH Polyimide Heating foil self-adhesive 24 V DC, 24 V AC 75 W IP rating IPX4 (L x W) 180 mm x 45 mm
EAN:
Part number:
Item no:
Product type
Heating foil
Operating voltage
24 V DC
24 V AC
Power
75 W
IP rating
IPX4
Surface temperature
+200 °C
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€ 21.00
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Polyimide heating film, self-adhesive
Our service for you
Technical specifications
- Product type
Heating foil
- Features
self-adhesive
- Operating voltage
24 V DC
24 V AC
75 W
- Material
Polyimide
- Material thickness
0.2 mm
- Connection
Open end cable
- Lead length
250 mm
IPX4
- Surface temperature
+200 °C
- Length
180 mm
- Width
45 mm
- Dim
(L x W) 180 mm x 45 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1594196 Thermo TECH Polyimide Heating foil self-adhesive 24 V DC, 24 V AC 75 W IP rating IPX4 (L x W) 180 mm x 45 mm
User & Safety Instructions
User & Safety Instructions 1594196 Thermo TECH Polyimide Heating foil self-adhesive 24 V DC, 24 V AC 75 W IP rating IPX4 (L x W) 180 mm x 45 mm
Description
Hints
Due to the high heating power, relative to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and thus be destroyed! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
