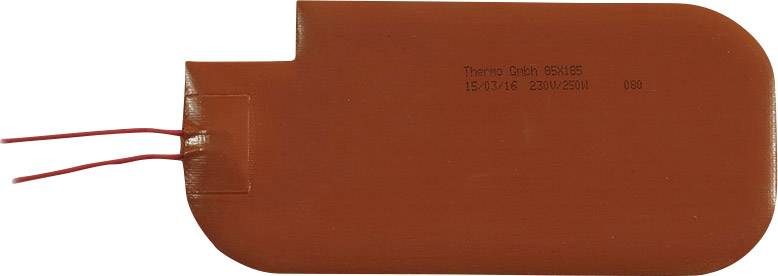

Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 250 W IP rating IPX7 (L x W) 185 mm x 85 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Features
self-adhesive
- Operating voltage
230 V DC
230 V AC
250 W
- Material
Silicone
- Material thickness
1.6 mm
- Connection
Open end cable
- Lead length
500 mm
IPX7
- Surface temperature
+200 °C
- Length
185 mm
- Width
85 mm
- Dim
(L x W) 185 mm x 85 mm
- RoHS-compliant
Yes
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 1594225 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 250 W IP rating IPX7 (L x W) 185 mm x 85 mm
User & Safety Instructions
User & Safety Instructions 1594225 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 250 W IP rating IPX7 (L x W) 185 mm x 85 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
