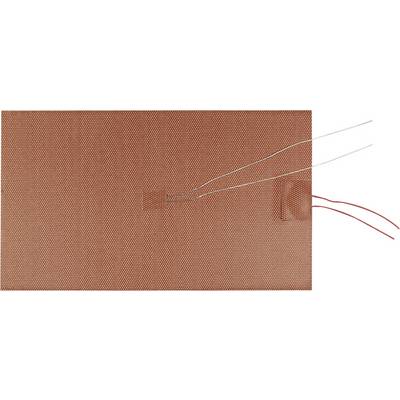

Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 750 W IP rating IPX7 (L x W) 250 mm x 150 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
22 Piece(s)
Sales and shipping:
Number
Total (€ 50.41 / piece)
€
Technical specifications
- Features
self-adhesive
- Operating voltage
230 V DC
230 V AC
750 W
- Material
Silicone
- Material thickness
1.6 mm
- Connection
Open end cable
- Lead length
250 mm
IPX7
- Surface temperature
+200 °C
- Length
250 mm
- Width
150 mm
- Dim
(L x W) 250 mm x 150 mm
- RoHS-compliant
Yes
- Product type
Heating foil
Documents & Downloads
Datasheet
Datasheet 1594237 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 750 W IP rating IPX7 (L x W) 250 mm x 150 mm
User & Safety Instructions
User & Safety Instructions 1594237 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 750 W IP rating IPX7 (L x W) 250 mm x 150 mm
Information
Information 1594237 Thermo TECH Silicone Heating foil self-adhesive 230 V DC, 230 V AC 750 W IP rating IPX7 (L x W) 250 mm x 150 mm
Description
Hints
Due to high heating power referred to the surface, the heating foil can overheat depending on the installation situation, without sufficient cooling or temperature control, and be destroyed thereby! The specified surface temperature corresponds to a mean value with an environmental temperature of 20 °C (45% r.H.) in still air! The target "Heating temperature" is extremely dependent on external influences such as presence and type of underground, thermal insulation, environmental temperature, air flow, air humidity, operating voltage and tolerances.
