Thomsen LED-5-14000W/75° LED wired White Circular 5 mm 14000 mcd 75 ° 100 mA 3.5 V

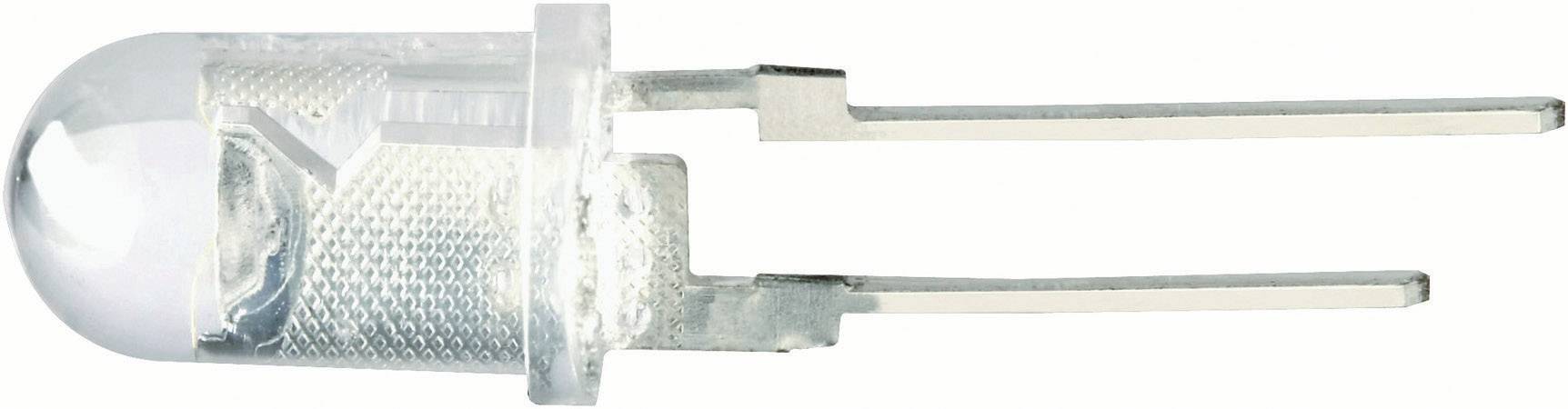

A translucent light-emitting diode (LED) in close-up, showing the metallic contact pins for the electrical connection.
Product type
LED wired
Forward voltage U(F)
3.5 V
Forward current I(F)
100 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 3.79 / piece)
€ 3.79
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Thomsen LED-5-14000W/75° LED wired White Circular 5 mm 14000 mcd 75 ° 100 mA 3.5 V

  • Very wide angle of radiation
  • Tremendous light yield
  • High operating current

Our service for you

Technical specifications

  • Expected life: 50,000 h
  • ESD proof: 2000 V
Product type

LED wired

Type

LED -5-1 4000 W/75°

Factory colour

White

Forward voltage U(F)

3.5 V

Forward current I(F)

100 mA

Operating voltage

3.5 V

Operating current

100 mA

Casing

5 mm

Type

Radial lead

Light intensity I(V)

14000 mcd

Luminous flux (Φ)

18 lm

Colour coordinates

X = 0.28 - 0.29/Y = 0.27 - 0.28

Colour temperature

9000 K

Colour rendering index

75 Ra

Radiation angle

75°

Type (LEDs)

Water clear

LED features

LED 5 mm

Technology

InGaN

Lens type

Circular

Dim

(Ø) 5 mm

Min. temperature

-25 °C

Max. temperature

85 °C

(Ø)

5 mm

RoHS-compliant

Yes

Content

1 pc(s)

Material (details)

InGaN/Sapphire

Type

Waterwhite

Operating temperature

-25 - +85 °C

Documents & Downloads

Datasheet

Datasheet 180005 Thomsen LED-5-14000W/75° LED wired White Circular 5 mm 14000 mcd 75 ° 100 mA 3.5 V

User & Safety Instructions

User & Safety Instructions 180005 Thomsen LED-5-14000W/75° LED wired White Circular 5 mm 14000 mcd 75 ° 100 mA 3.5 V

Description

This LED in a standard housing works with a higher current than conventional LEDs. Its internal design in conjunction together with its extreme brightness produces a wide angle of radiation which means that the LED can also be used for surface illumination.

Hints

Do not look directly into the beam! Risk of retinal damage!
