TinkerForge 2146 E-paper display Suitable for (single board PCs) TinkerForge 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 23.99 / piece)
€ 23.99
incl. VAT
Only 6 Piece(s) available
Highlights & Details

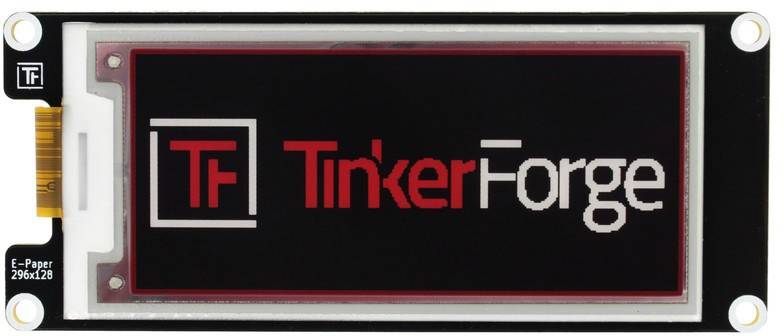

TinkerForge 2146 E-Paper 296x128 Bricklet (black/white/red)
- 7.4 cm (2.9") E-Paper display with a resolution of 296x128 pixels
- Two three-color displays are available: Black/White/Red and Black/White/Gray
- Embedded font for simple text display
Technical specifications
- Dimensions (W x D x H): 100x40x6 mm
- Weight: 20g
- Product type
E-paper display
- Suitable for
TinkerForge
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2255048 TinkerForge 2146 E-paper display Suitable for (single board PCs) TinkerForge 1 pc(s)
Description
The E-Paper 296x128 Bricklet is an E-Paper display with a resolution of 296x128 pixels.
Each pixel can be set individually, so the display can display graphics. The contents of the display remain when the Bricklet is disconnected from the power supply.
The 296x128 Bricklet e-paper is available with two different three-color display options: Black/White/Red and Black/White/Gray.
A three-color refresh of the screen content takes approximately 7.5 seconds. With different update modes it is possible to achieve update rates of up to 1Hz if only black and white is used.

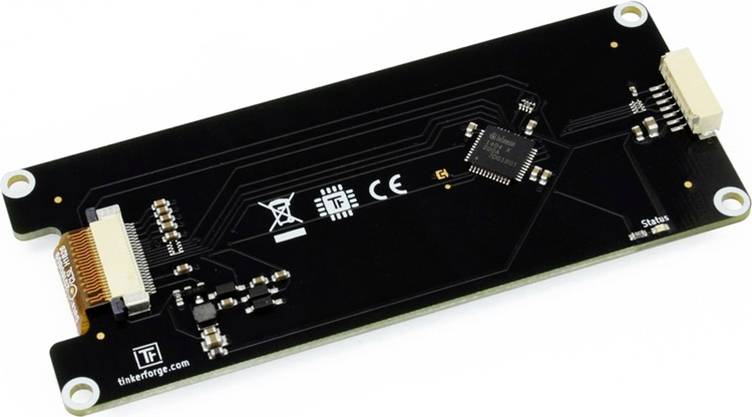

The E-Paper 296x128 Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.
This text is machine translated.
Each pixel can be set individually, so the display can display graphics. The contents of the display remain when the Bricklet is disconnected from the power supply.
The 296x128 Bricklet e-paper is available with two different three-color display options: Black/White/Red and Black/White/Gray.
A three-color refresh of the screen content takes approximately 7.5 seconds. With different update modes it is possible to achieve update rates of up to 1Hz if only black and white is used.
The E-Paper 296x128 Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.
This text is machine translated.
Features
- Power consumption: 45mW (9mA at 5V) inactive; 95mW (19mA at 5V) during the setting of an image
- Display resolution: 296x128 Pixel
- Display size: 7.4 cm (2.9")
- Display colors: Black/white/red or black/white/gray
