Name: TinkerForge 6126 Load cell Suitable for (single board PCs) TinkerForge 1 pc(s)
Brand: TinkerForge
SKU: 2254972
Availability: InStock

'A single-axis load cell sensor with a capacity of 5 kg and RoHS marking, with cable connections.'

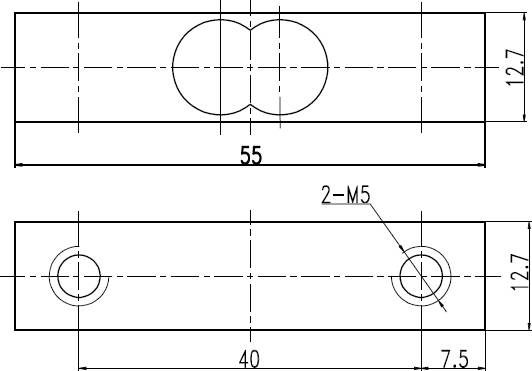

Technical drawing of a metallic connecting element with dimensions: Length 55 mm, Width 12.7 mm, Bore 40 mm, Hole Size M5.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 17.99 / piece)

€ 17.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TinkerForge 6126 load cell 5kg CZL635

Micro load cell
0-5kg measuring range
0.05% accuracy
Compatible to the Load Cell Bricklet

Technical specifications

Dimensions (WxDxH): 55x12.7x12.7 mm
Weight: 20g
Mounting: 2x M5

Product type: Load cell

Suitable for: TinkerForge

Packaging type: Piece

Tool type: Accessory

Content: 1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2254972 TinkerForge 6126 Load cell Suitable for (single board PCs) TinkerForge 1 pc(s)

Description

This micro load cell is compatible with Load Cell Bricklet 2.0.

This text is machine translated.

Features

Measuring range: 0kg to 5kg
Nominal output ratio: 1.0±0.15mV/V
Non-linearity: 0.05%FS
Hysteresis: 0.03%FS
Repeatability: 0.05%FS
Drift: 0.05%FS/10min
Temperature effect at zero point: 0.03%FS/10°C
Temperature effect over measuring range: 0.02%FS/10°C
Zero point balance: ±1.0%FS
Input impedance: 1000±10Ω
Output impedance: 1000±3Ω
Insulation resistance: ≥ 2000MΩ at 100V (DC)
Recommended Excitation voltage: 3V to 10V (DC)
Permitted Excitation voltage: 3V to 18V (DC)
Compensated temperature range: -10°C to +40°C
Operating temperature range: -20°C to +60°C
Limit range Overload: 120%FS
Maximum overload: 150%FS
Connections: Excitation+: Red; Excitation-: Black; Signal+: Green; Signal+: White
