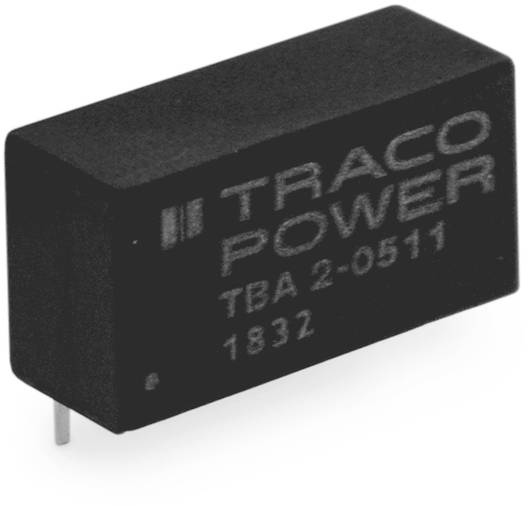

TracoPower TBA 2-0513 DC/DC converter (print) 130 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Product type
DC/DC converter (print)
- Type
TBA 2
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.50 V DC
- No. of outputs
1 x
- Max. output current
130 mA
- Output current (max.) - rounded
130 mA
- Efficiency (max.)
82 %
2 W
- Insulation voltage
1500 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
90 °C
- Dim
(L x W x H) 19.60 x 7.60 x 10.20 mm
- Height
10.20 mm
- Length
19.60 mm
- Width
7.60 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15.0 V DC
- Output voltage (min.)
15.0 V DC
- Weight
2.80 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2196310 TracoPower TBA 2-0513 DC/DC converter (print) 130 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 2196310 TracoPower TBA 2-0513 DC/DC converter (print) 130 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2196310 TracoPower TBA 2-0513 DC/DC converter (print) 130 mA 2 W No. of outputs: 1 x Content 1 pc(s)
