Name: TracoPower TCL 024-105 Rail mounted PSU (DIN) 5 V DC 4 A 24 W No. of outputs:1 x Content 1 pc(s)
Brand: TracoPower
SKU: 510932
Availability: InStock

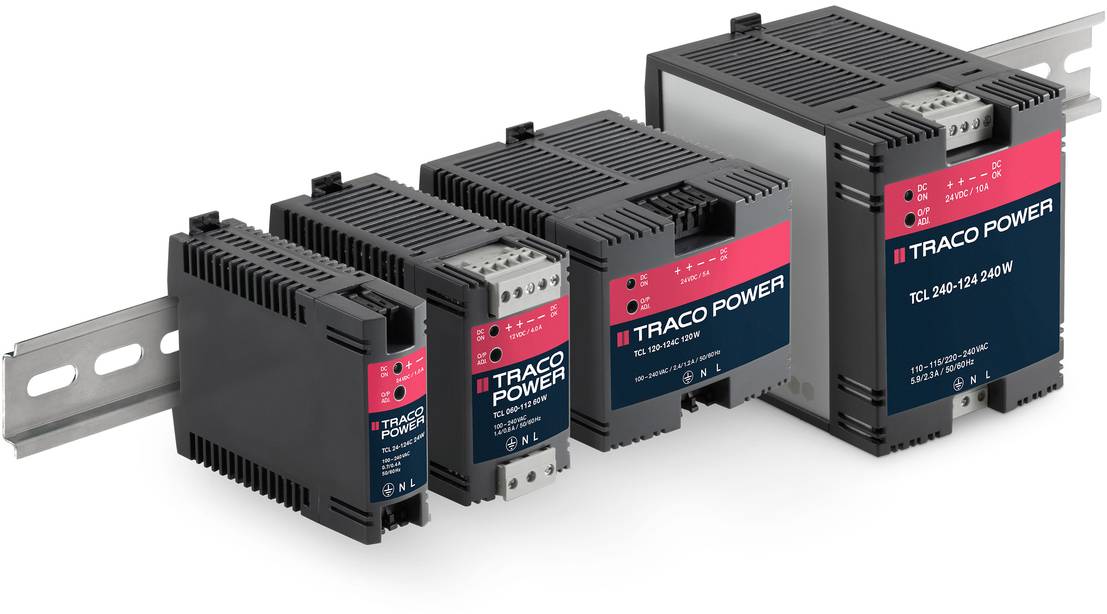

Four TRACO POWER switched-mode power supplies of different sizes are mounted on a DIN rail. They are suitable for industrial applications.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

TracoPower TCL 024-105 Rail mounted PSU (DIN) 5 V DC 4 A 24 W No. of outputs:1 x Content 1 pc(s)

Input 1-phase
input voltage range 85 - 264 V/AC, 85 - 375 V/DC
for applications in industry, office and living areas
Ultra compact plastic housing
can be snapped onto DIN rail
Incl. Adapter for wall mounting
adjustable output voltage
DC-OK Signal
low remaining ripple
Overload and short-circuit protection
Parallel operation possible

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC
85 - 375 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 5 V DC

Input voltage: 85 - 264 Vac, 85 - 375 V DC

Input voltage (max.): 264 V AC

Max. output current: 4 A

Output current (max.) - rounded: 4 A

: 24 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 5 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 27 x 75 x 100 mm

Weight: 140 g

Output voltage (max.): 25 V DC

Output voltage (min.): 5 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -10 °C

Manufacturer part #: TCL 024-105

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 27 mm

Height: 75 mm

Type: TCL 024-105

Depth: 100 mm

: 24 W

Connections: Screw terminal

Output rating: 24 W

Output current (details): 4 A

Compliance & Certifications

Certified by EU Garan

Variants(All information include VAT, plus shipping costs)

Nominal input voltage

Output voltage (nominal)

Output current (max.) - rounded

Output voltage

Input voltage (max.)

Min. input voltage

Power

Connection

Max. output current

Output voltage (max.)

TracoPower TCL 024-105 Rail mounted PSU (DIN) 5 V DC 4 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:510932

Fast track dispatch on Thu 5 Nov

2 Piece(s)Conrad Electronic

This article

115 V/AC

5 V DC

4 A

5 V DC

264 V AC

85 V AC

24 W

Screw terminal

4 A

25 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

TracoPower TCL 024-112 Rail mounted PSU (DIN) 12 V DC 2 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:510934

Fast track dispatch on Thu 5 Nov

7 Piece(s)Conrad Electronic

115 V/AC

12 V DC

2 A

12 V DC

264 V AC

85 V AC

24 W

Screw terminal

2 A

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

TracoPower TCL 024-124 Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:510940

Fast track dispatch on Thu 5 Nov

7 Piece(s)Conrad Electronic

115 V/AC

24 V DC

1 A

24 V DC

264 V AC

85 V AC

24 W

Screw terminal

1 A

28 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 87.99^*

TracoPower TCL 024-124C Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:510941

Fast track dispatch on Thu 5 Nov

17 Piece(s)Conrad Electronic

115 V/AC

24 V DC

1 A

24 V DC

264 V AC

85 V AC

24 W

Spring-loaded terminal

1 A

28 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 79.99^*

TracoPower TCL 024-124DC Rail mounted PSU (DIN) 24 V DC 1 A 24 W No. of outputs:1 x Content 1 pc(s)

Item no:510933

Fast track dispatch on Thu 5 Nov

13 Piece(s)Conrad Electronic

72 V/DC

24 V DC

1 A

24 V DC

75 V DC

18 V DC

24 W

Screw terminal

1 A

28 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

TracoPower TCL 060-112 DC Rail mounted PSU (DIN) 12 V DC 5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:515327

Fast track dispatch on Thu 5 Nov

18 Piece(s)Conrad Electronic

72 V/DC

12 V DC

5 A

24 V DC

75 V DC

18 V DC

60 W

Screw terminal

5 A

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

TracoPower TCL 060-112 Rail mounted PSU (DIN) 12 V DC 4 A 48 W No. of outputs:1 x Content 1 pc(s)

Item no:510942

Fast track dispatch on Thu 5 Nov

9 Piece(s)Conrad Electronic

115 V/AC

12 V DC

4 A

12 V DC

265 V AC

85 V AC

48 W

Screw terminal

4 A

15 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

TracoPower TCL 060-124 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:510945

Available soon

Conrad Electronic

115 V/AC

24 V DC

2.5 A

24 V DC

265 V AC

86 V AC

60 W

Screw terminal

2.5 A

28 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

TracoPower TCL 060-124C Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:510946

Fast track dispatch on Thu 5 Nov

7 Piece(s)Conrad Electronic

115 V/AC

24 V DC

2.5 A

24 V DC

265 V AC

86 V AC

60 W

Spring-loaded terminal

2.5 A

28 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

TracoPower TCL 060-124DC Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:512403

Available soon

Conrad Electronic

72 V/DC

24 V DC

2.5 A

24 V DC

75 V AC

18 V AC

60 W

Screw terminal

2.5 A

28 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

Documents & Downloads

Datasheet

Datasheet 510932 TracoPower TCL 024-105 Rail mounted PSU (DIN) 5 V DC 4 A 24 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 510932 TracoPower TCL 024-105 Rail mounted PSU (DIN) 5 V DC 4 A 24 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 510932 TracoPower TCL 024-105 Rail mounted PSU (DIN) 5 V DC 4 A 24 W No. of outputs:1 x Content 1 pc(s)

Description

TCL 024-105 industrial DIN rail power supply with 5V DC 4A 24W output (Screw terminal type) - from TracoPower's high price/performance ratio TCL series.

With tightly regulated output voltage and high immunity against electrical disturbances on the mains, all power supplies from the TCL series provide a reliable power source for sensitive loads in industrial process controls, machine tools and other equipment exposed to a difficult industrial environment.

The whole TCL series complies with all mayor safety standards for Europe (EN60950, EN50178), North America (UL/cUL60950, UL508C listed) or elsewhere in the world (with CB-Report IEC60950).
