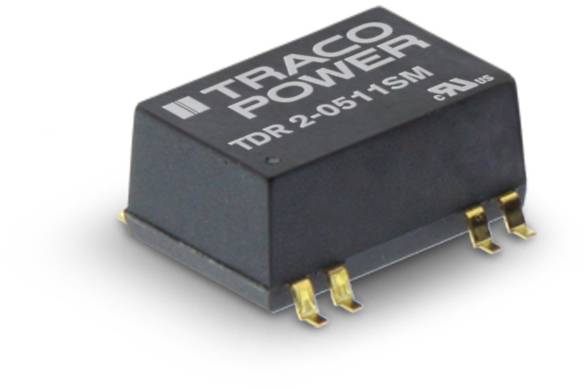

TracoPower TDR 2-0511SM DC/DC converter (SMD) 5 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 30.24
-11 %
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
TDR 2-0511SM
- Nominal voltage
5 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
9 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
400 mA
- Output current (max.) - rounded
400 mA
- Efficiency (max.)
81 %
2 W
- Insulation voltage
1600 V DC
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 13.55 x 12.5 x 18.9 mm
- Height
18.9 mm
- Length
13.55 mm
- Width
12.5 mm
- Output voltage (max.)
5 V DC
- Output voltage (min.)
5 V DC
- Weight
4.5 g
- Content
1 pc(s)
- Type
TDR 2-0511SM
Documents & Downloads
Datasheet
Datasheet 1509373 TracoPower TDR 2-0511SM DC/DC converter (SMD) 5 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 1509373 TracoPower TDR 2-0511SM DC/DC converter (SMD) 5 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1509373 TracoPower TDR 2-0511SM DC/DC converter (SMD) 5 V DC 5 V DC 400 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact 2 W converter in SMD casing, input/output insulation 1600 V/DC, regulated outputs, 2:1 input range, short-circuit proof.
