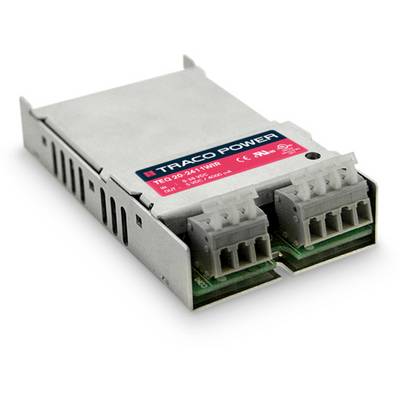

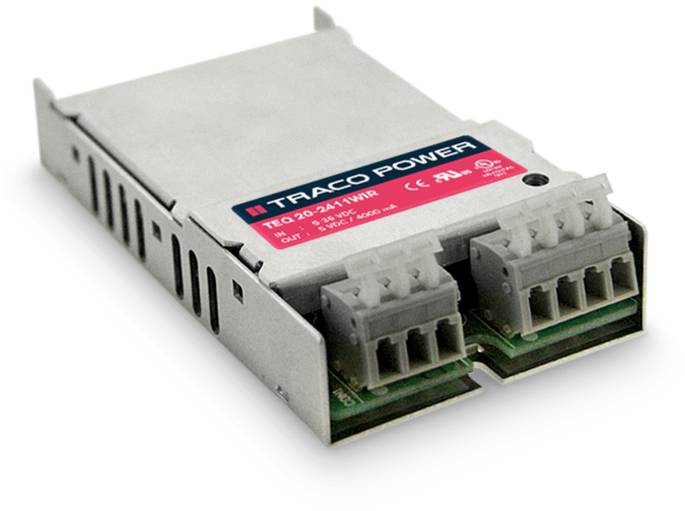

TracoPower TEQ 20-7223WIR DC/DC converter 667 mA 20 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 159.66 / piece)
€ 180.67
-12 %
€
Technical specifications
- Product type
DC/DC converter
- Type
TEQ 20WIR
- Min. input voltage
43 V DC
- Input voltage (max.)
160 V DC
- No. of outputs
2 x
- Max. output current
667 mA
- Output current (max.) - rounded
667 mA
- Efficiency (max.)
88 %
20 W
- Insulation voltage
2250 V DC
- Connection
Spring-loaded connector
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
93 °C
- Dim
(L x W x H) 103 x 57.20 x 26.10 mm
- Height
26.10 mm
- Length
103 mm
- Width
57.20 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15 V DC
-15 V DC
- Output voltage (min.)
15 V DC
-15 V DC
- Weight
122 g
- Content
1 pc(s)
