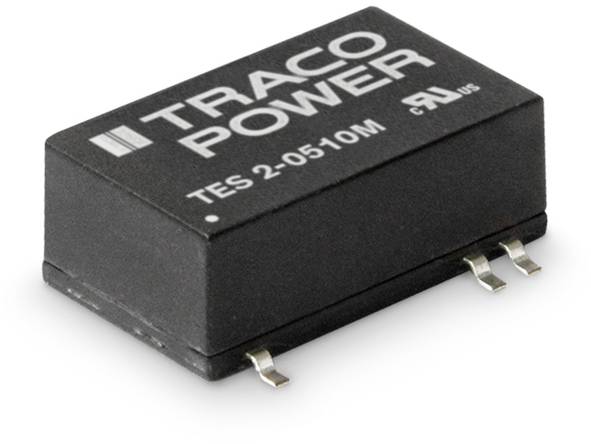

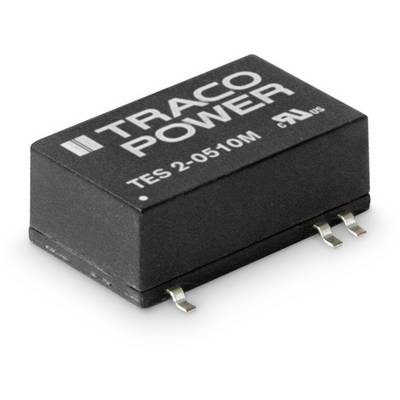

TracoPower TES 2-0512M DC/DC converter (SMD) 5 V DC 12 V DC 165 mA 2 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
TES 2-0512M
- Nominal voltage
5 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
5.5 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
165 mA
- Output current (max.) - rounded
165 mA
- Efficiency (max.)
66 %
2 W
- Insulation voltage
4000 V DC
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 24 x 18.1 x 9 mm
- Height
9 mm
- Length
24 mm
- Width
18.1 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Weight
3.2 g
- Content
1 pc(s)
- Type
TES 2-0512M
Documents & Downloads
Datasheet
Datasheet 1510199 TracoPower TES 2-0512M DC/DC converter (SMD) 5 V DC 12 V DC 165 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 1510199 TracoPower TES 2-0512M DC/DC converter (SMD) 5 V DC 12 V DC 165 mA 2 W No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1510199 TracoPower TES 2-0512M DC/DC converter (SMD) 5 V DC 12 V DC 165 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1510199 TracoPower TES 2-0512M DC/DC converter (SMD) 5 V DC 12 V DC 165 mA 2 W No. of outputs: 1 x Content 1 pc(s)
Description
Compact SMD package with low profile, E/A-insulation 40000 VAC eff. With reinforced and additional insulation designed for 300VAC operating voltage. Safety standards for medical and industrial applications, suitable for lead-free soldering process after IPC-J-STD-020C.
