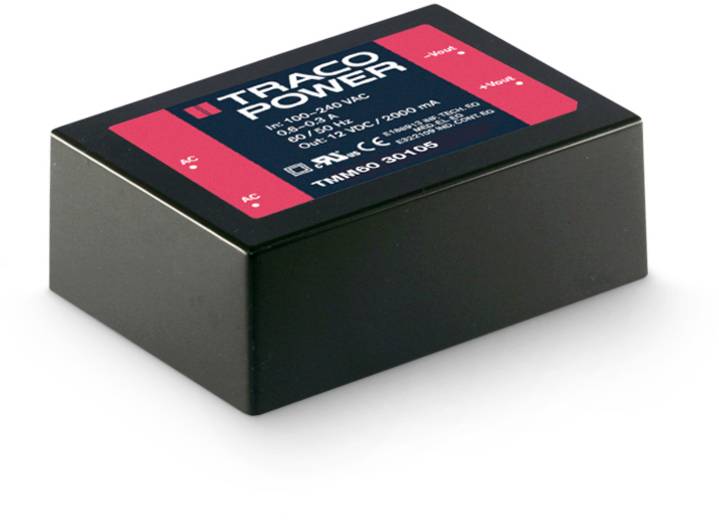

TracoPower TMM 60112 AC/DC PSU (print) 12 V DC 5.0 A 60 W
Part number:
Item no:
Datasheet (PDF)
5 Piece(s)
Sales and shipping:
Number
Minimum order quantity: 5
Total (€ 105.03 / piece)
€
Only 5 Piece(s) available
Highlights & Details
AC/DC-SWITCHED POWER SUPPLY, 60 W, 12 V/5.0 A
- Output 12 V DC / 5.0 A
- Power 60 W
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Max. output current
5.0 A
- Output current (max.) - rounded
5 A
- Min. input voltage
85 V AC
- Dim
(L x W x H) 88.9 x 67.5 x 34.2 mm
- Output voltage (max.)
12 V DC
60 W
- No. of outputs
1 x
- Operating temperature (max.)
80 °C
- Max. operating temperature (derating)
90 °C
- Min. operating temperature (derating)
65 °C
- Operating temperature (min.)
-40 °C
- Weight
360 g
- Width
67.5 mm
- Height
34.2 mm
- Length
88.9 mm
- Type
TMM 60112
Documents & Downloads
Datasheet
Datasheet 3370117 TracoPower TMM 60112 AC/DC PSU (print) 12 V DC 5.0 A 60 W
Datasheet 3370117 TracoPower TMM 60112 AC/DC PSU (print) 12 V DC 5.0 A 60 W
User & Safety Instructions
User & Safety Instructions 3370117 TracoPower TMM 60112 AC/DC PSU (print) 12 V DC 5.0 A 60 W
Warranty Terms
Warranty Terms 3370117 TracoPower TMM 60112 AC/DC PSU (print) 12 V DC 5.0 A 60 W
Description
The switching power supplies of the TMM 24 series offer ultra-compact, completely sealed modules with reinforced/double I/O insulation according to the latest safety standards 60601-3, 3rd edition for 2 x MOPP (Means Of Patient Protection). Due to their high degree of efficiency and the use of high-quality components, these modules can be used in a working temperature range from –40°C to +65°C, with a power reduction of 50% even up to +80°C. Due to their good EMC properties, they can be used not only in medical applications but also in demanding industrial and transport applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- AC/DC-switched power supply
