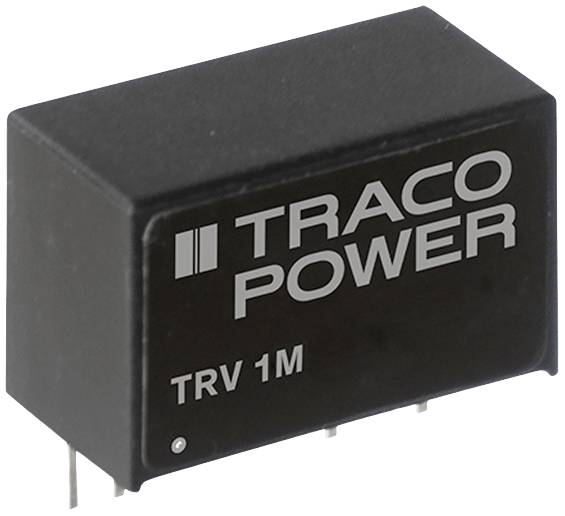

TracoPower TRV 1-1223M DC/DC converter (print) 34 mA 1 W No. of outputs: 2 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 16.80
30
5% = € 0.83
€ 15.97
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 16.80 / piece)
€ 168.00
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TRV 1-1223M
- Min. input voltage
9.6 V DC
- Input voltage (max.)
14.4 V DC
- No. of outputs
2 x
- Max. output current
34 mA
- Output current (max.) - rounded
34 mA
- Efficiency (max.)
83 %
1 W
- Insulation voltage
5000 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 19.6 x 9.9 x 12.5 mm
- Height
12.5 mm
- Length
19.6 mm
- Width
9.9 mm
- RoHS-compliant
Yes
- Output voltage (max.)
15 V DC
-15 V DC
- Output voltage (min.)
15 V DC
-15 V DC
- Weight
4.8 g
- Content
1 pc(s)
