TRU COMPONENTS 736360 Butt joint + heatshrink 0.08 mm² 0.202 mm² Insulated White 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Insulation type
Insulated
Length
25 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Minimum order quantity: 3
Total (€ 0.61 / piece)
€ 1.83
plus VAT.
Highlights & Details
Butt joint + heatshrink 0.08 mm² 0.22 mm²
- Shrink ratio 2:1
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Butt joint
- Factory colour
White
- Insulation type
Insulated
- Length
25 mm
- Content
1 pc(s)
- Manufacturer part #
736360
- Type
JFST-1-W
- max. cross section
0.202 mm²
- Min. cross section
0.08 mm²
- Inside diameter
1.7 mm
- Cross-section range
0.08 - 0.202 mm²
- RoHS-compliant
Yes
- Features
+ heatshrink
- Temperature range
Melt-temperature solder: 180°C operating temperature range: -55 - 135 °C
Documents & Downloads
Datasheet
Datasheet 1566693 TRU COMPONENTS 736360 Butt joint + heatshrink 0.08 mm² 0.202 mm² Insulated White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1566693 TRU COMPONENTS 736360 Butt joint + heatshrink 0.08 mm² 0.202 mm² Insulated White 1 pc(s)
Description

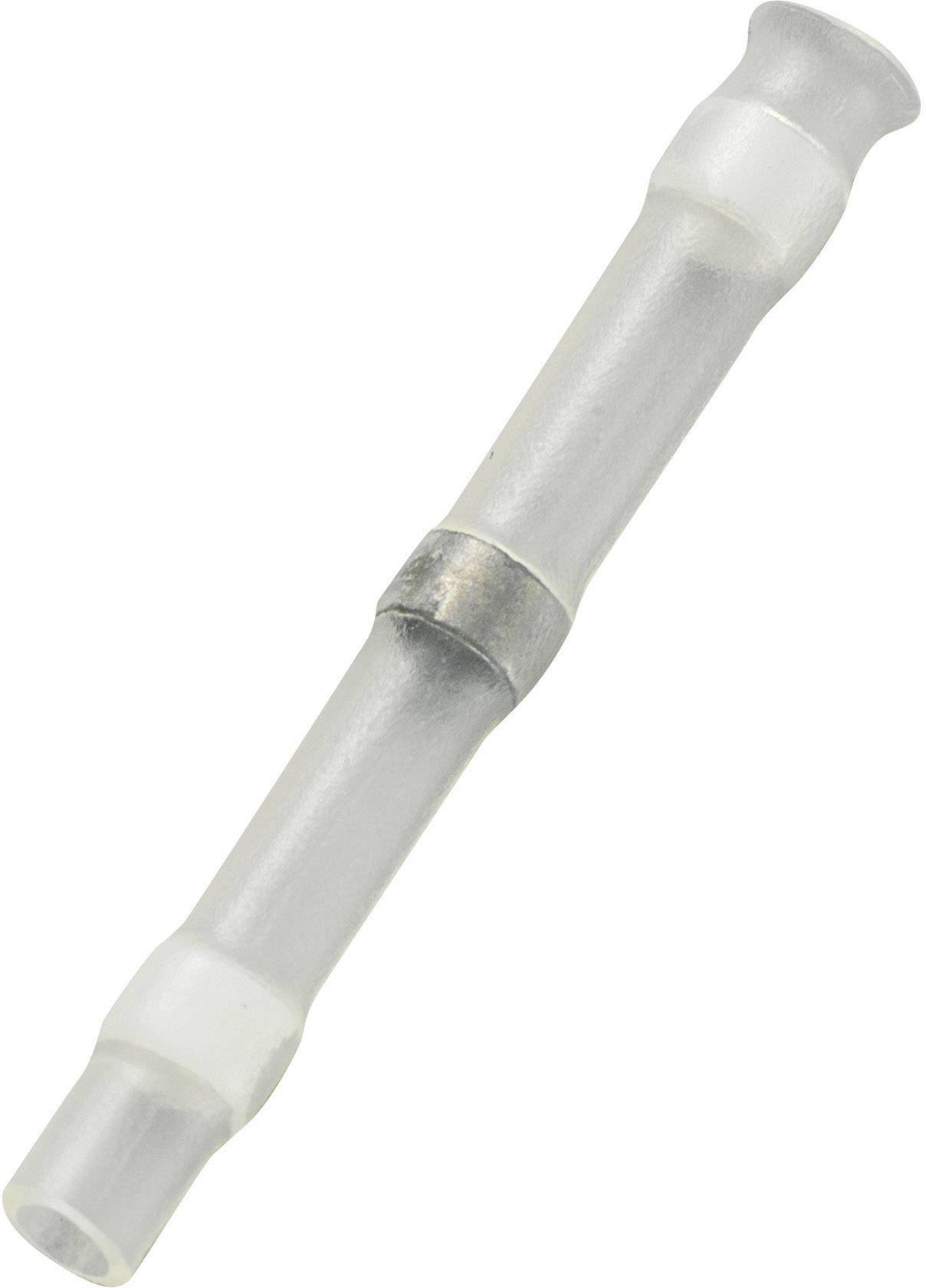

Butt connector with centrally placed solder. The tin melts when heated and a secure contact is ensured. The connector with inner adhesive also shrinks and therefore ensures water resistance. It is connected, soldered, insulated and sealed in one step. The transparent heat-shrink sleeves make it possible to visually check the joint.
