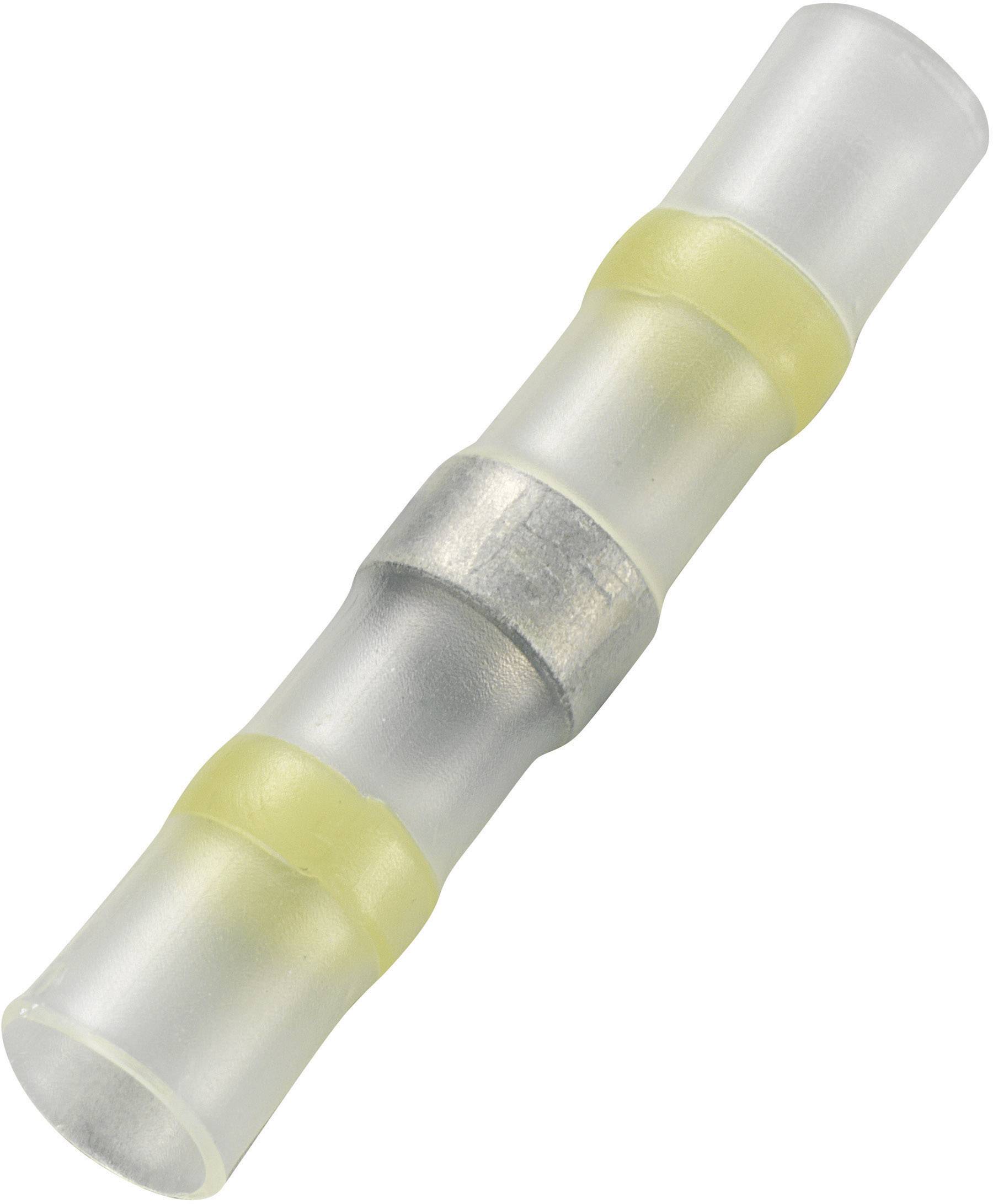

TRU COMPONENTS 736400 Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Insulation type
Insulated
Contact material
Tin
Length
40 mm
Datasheet (PDF)
Number
Minimum order quantity: 3
Total (€ 0.61 / piece)
€ 1.83
plus VAT.
Highlights & Details
Butt joint + heatshrink 4 mm² 6 mm²
- Shrink ratio 2:1
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Butt joint
- Factory colour
Yellow
- Insulation type
Insulated
- Contact material
Tin
- Length
40 mm
- Content
1 pc(s)
- Manufacturer part #
736400
- Type
JFST-4-G
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Inside diameter
6 mm
- Insulation material
Heat shrink
- Cross-section range
4 - 6 mm²
- RoHS-compliant
Yes
- Features
+ heatshrink
- Temperature range
Melt temperature solder 115 °C, operating temperature range -55 - 135 °C
Documents & Downloads
Datasheet
Datasheet 1566695 TRU COMPONENTS 736400 Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1566695 TRU COMPONENTS 736400 Butt joint + heatshrink 4 mm² 6 mm² Insulated Yellow 1 pc(s)
Description
Butt connector with centrally placed solder. The tin melts when heated and a secure contact is ensured. The connector with inner adhesive also shrinks and therefore ensures water resistance. It is connected, soldered, insulated and sealed in one step. The transparent heat-shrink sleeves make it possible to visually check the joint.
