Buy TRU COMPONENTS Current monitoring relay GRI8-05B current

An electrical relay with screw terminals and multiple connections. Indicator lights show the status.

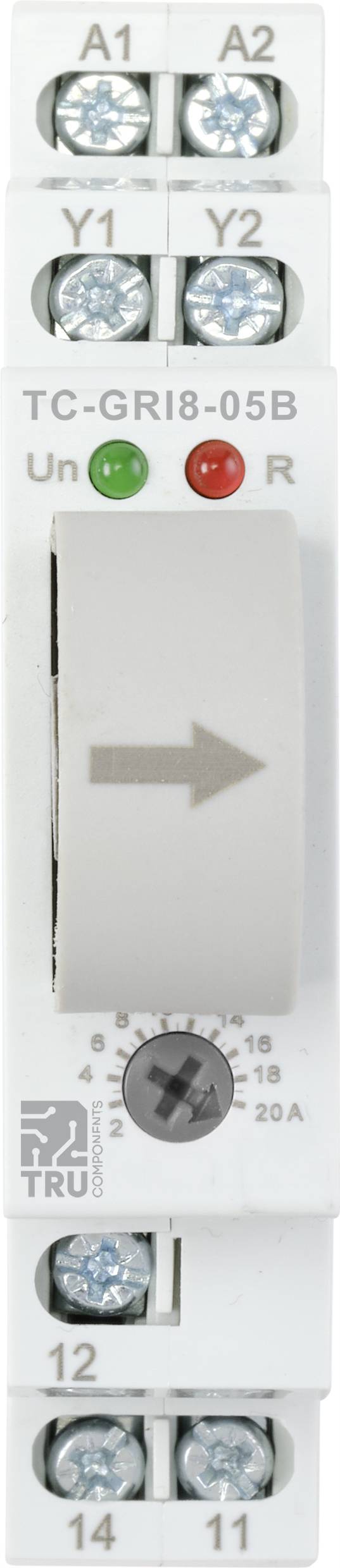

An electrical relay module with connections at the top and bottom. Two indicator lights show the operating states 'Un' (green) and 'R' (red).

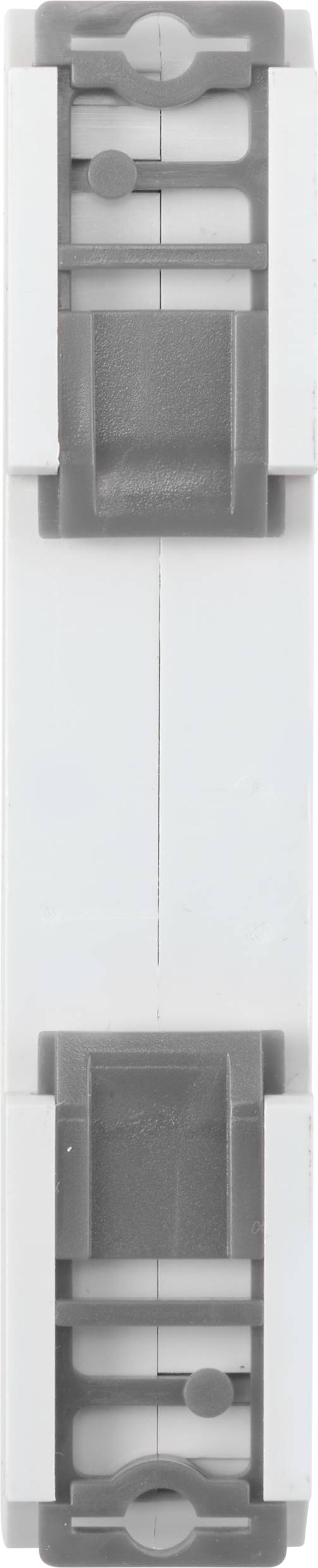

A rectangular, vertical mechanism made of grey and white plastic, possibly a fastener or part of a mounting bracket.

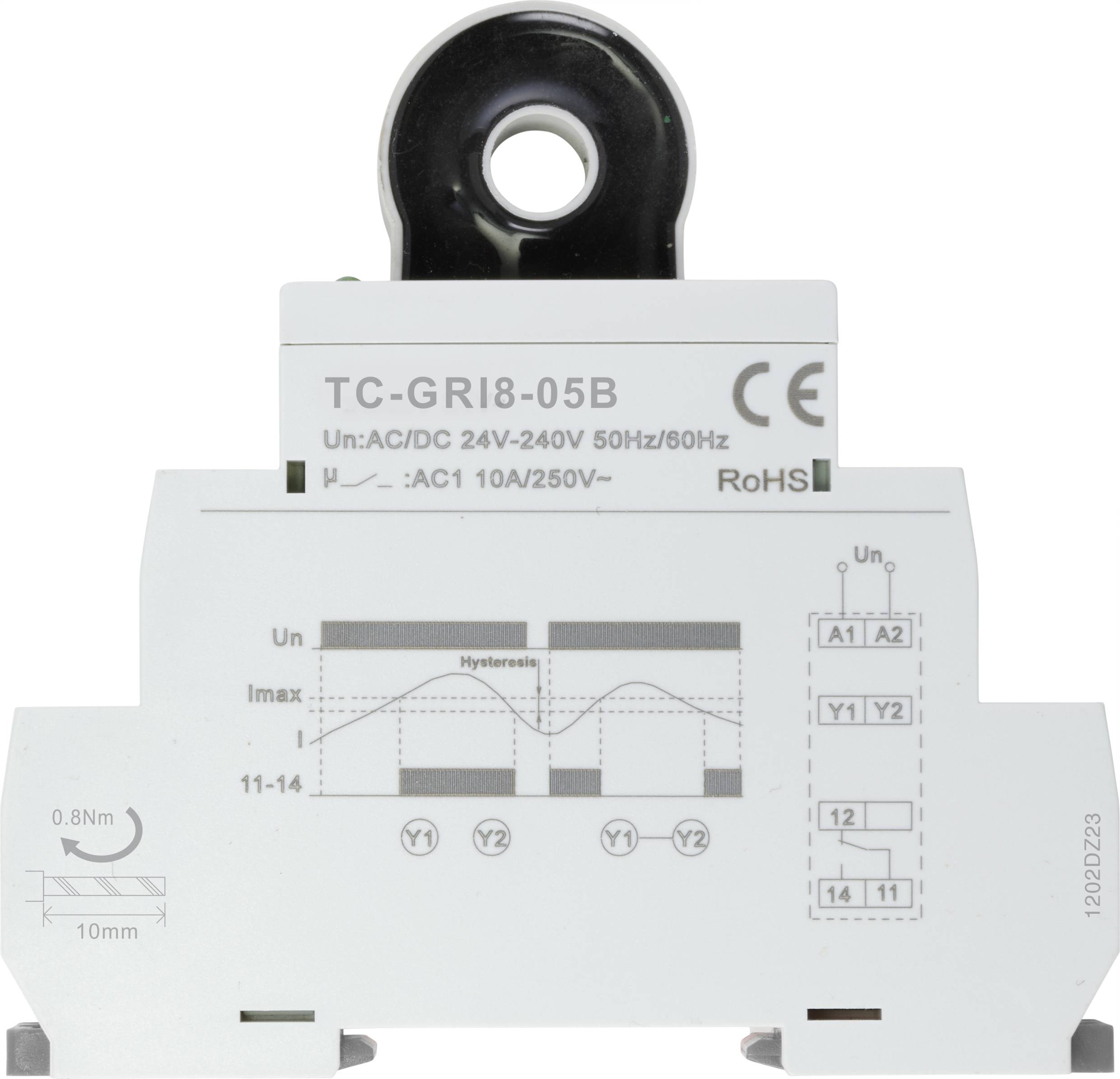

A grey switch labelled 'TC-GRI8-05B', with voltage specifications and CE marking.

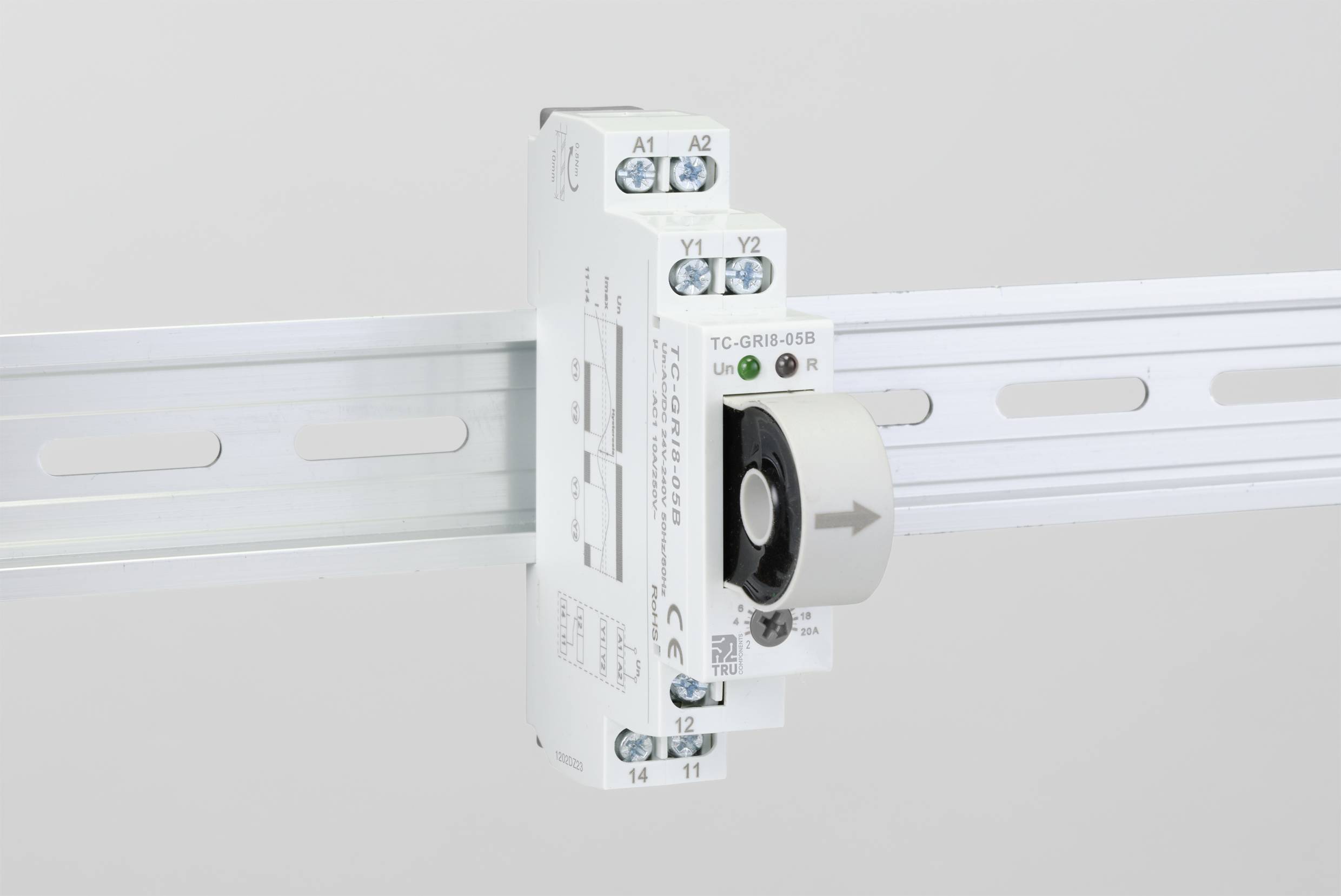

An electromechanical relay on a DIN rail, with connection terminals and a housing that displays installation instructions.

1/5

Dim

(L x W) 90 mm x 64 mm

Type

TC-9962760

Connection

Screw terminal

Frequency

50 Hz

Width

64 mm

Datasheet (PDF)

Fast track dispatch on Fri, 18 Sep

275 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

Report legal concerns

Highlights & Details

Current monitoring relay GRI8-05B current

Our service for you

Technical specifications

Dim: (L x W) 90 mm x 64 mm

Type: TC-9962760

Connection: Screw terminal

Frequency: 50 Hz

Width: 64 mm

Length: 90 mm

Cross section (flexible) (max.): 2.5 mm²

Cross section (flexible) (min.): 1.5 mm²

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 2490690 TRU COMPONENTS Current monitoring relay GRI8-05B current

User & Safety Instructions

User & Safety Instructions 2490690 TRU COMPONENTS Current monitoring relay GRI8-05B current

Description

For monitoring the heating in switch switches and heating cables as well as the power consumption of single-phase motors. Indicates the current flow.

This text is machine translated.

Features

Performs AC/DC measurements
Over and under current monitoring
Straight-through type, works without open circuit
Switch-on delay
Can be used for the current query of the current transformer
Universal supply: AC/DC 24 - 240 V
Relay status is indicated by LED
1-module, mounting on DIN rail

Scope of delivery

1 x AC/DC current monitoring relay
