TRU COMPONENTS GRI8-04/16 Current
EAN:
Part number:
Item no:
Dim
(L x W) 90 mm x 64 mm
Type
TC-9962752
Connection
Screw terminal
Frequency
50 Hz
Width
64 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
GRI8-04/16 Current
- For monitoring heating in rail switches and heating cables, and current consumption of single-phase motors
- Indicates current flow
Our service for you
Technical specifications
- Dim
(L x W) 90 mm x 64 mm
- Type
TC-9962752
- Connection
Screw terminal
- Frequency
50 Hz
- Width
64 mm
- Length
90 mm
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- Cross section (flexible) (min.)
1.5 mm²
- Cross section (inflexible) (min.)
1.5 mm²
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2490688 TRU COMPONENTS GRI8-04/16 Current
User & Safety Instructions
User & Safety Instructions 2490688 TRU COMPONENTS GRI8-04/16 Current
Description
For monitoring the heating in switch switches and heating cables as well as the power consumption of single-phase motors. Indicates the current flow.
This text is machine translated.
This text is machine translated.
Features
- Current-limiting relay, controlling systems, motors, heating, current indication, controlling of single-phase motor run down
- Over and under current monitoring
- Adjustable delay (0.1 – 10 secs) to eliminate short current peaks
- Current setting: AC 1.6-16 A
- Power up delay
- Can be used for current scanning from the current transformer.
- Universal AC/DC 24 – 240 V supply

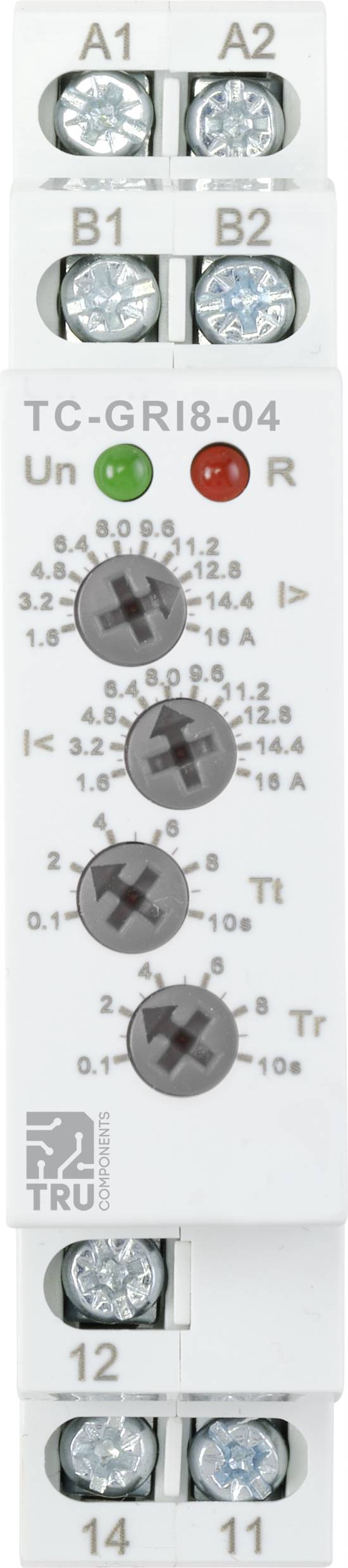

- Relay status is indicated by LED.

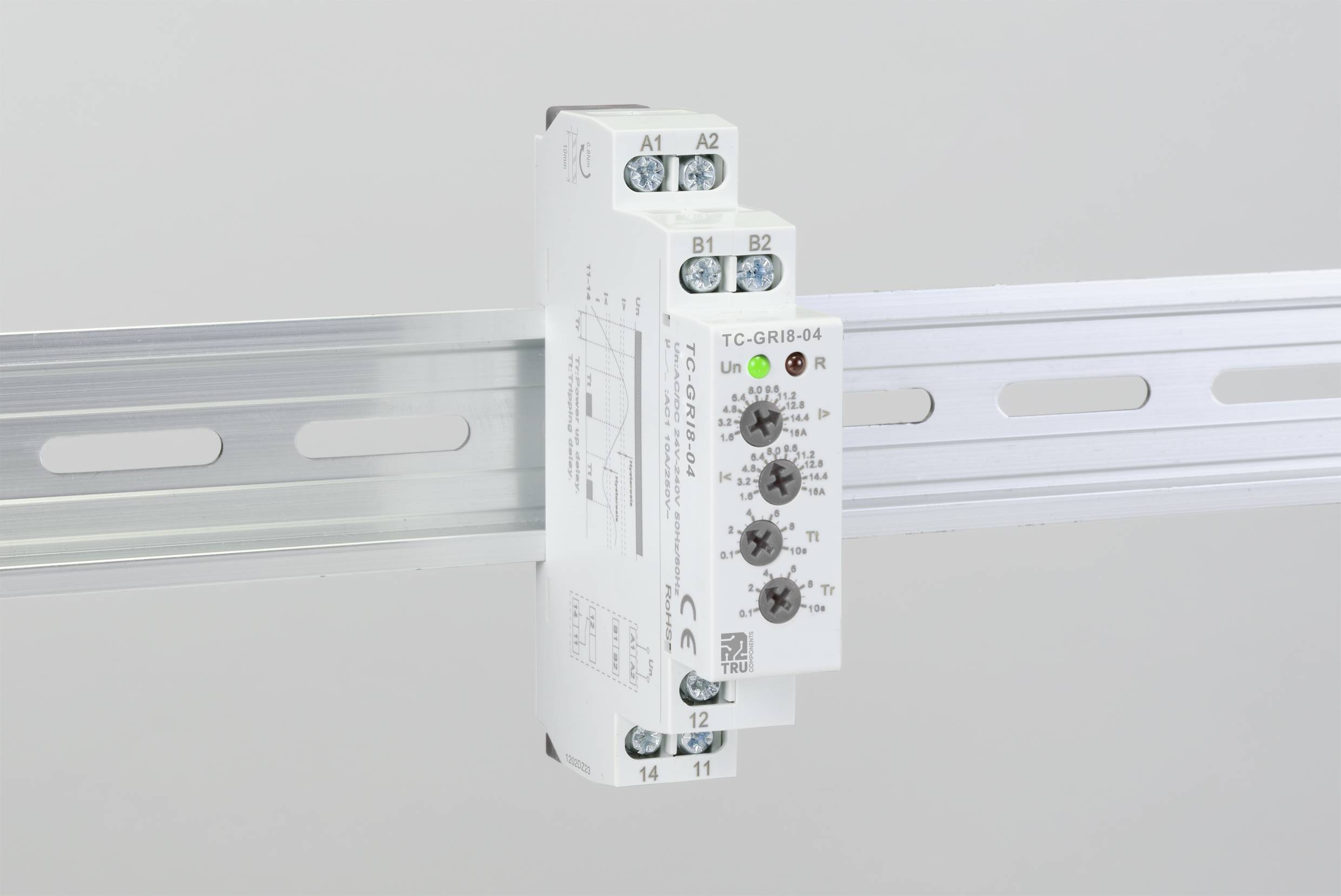

- 1-module, DIN rail mounting.
Scope of delivery
- 1 x Current monitoring relay, minimum current or maximum current
