TRU COMPONENTS Enclosure light TC-LED025-CM EEC: F (A - G) 4 W 400 lm (L x W x H) 352 x 35 x 32 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure light
Power
4 W
Colour temperature type
6500 K
Luminous flux (Φ)
400 lm
Energy efficiency rating
F (A - G)
401 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 21.00
3
4% = € 0.92
€ 20.08
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 21.00 / piece)
€
Highlights & Details

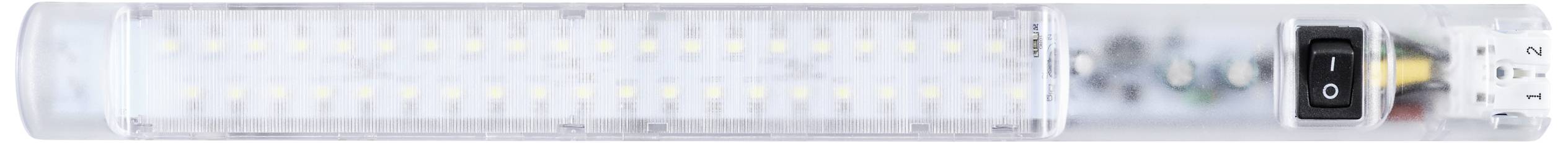

Electric Cabinet Light Magnetic, On/Off switch
- Voltage range: 48 - 265 V AC/DC

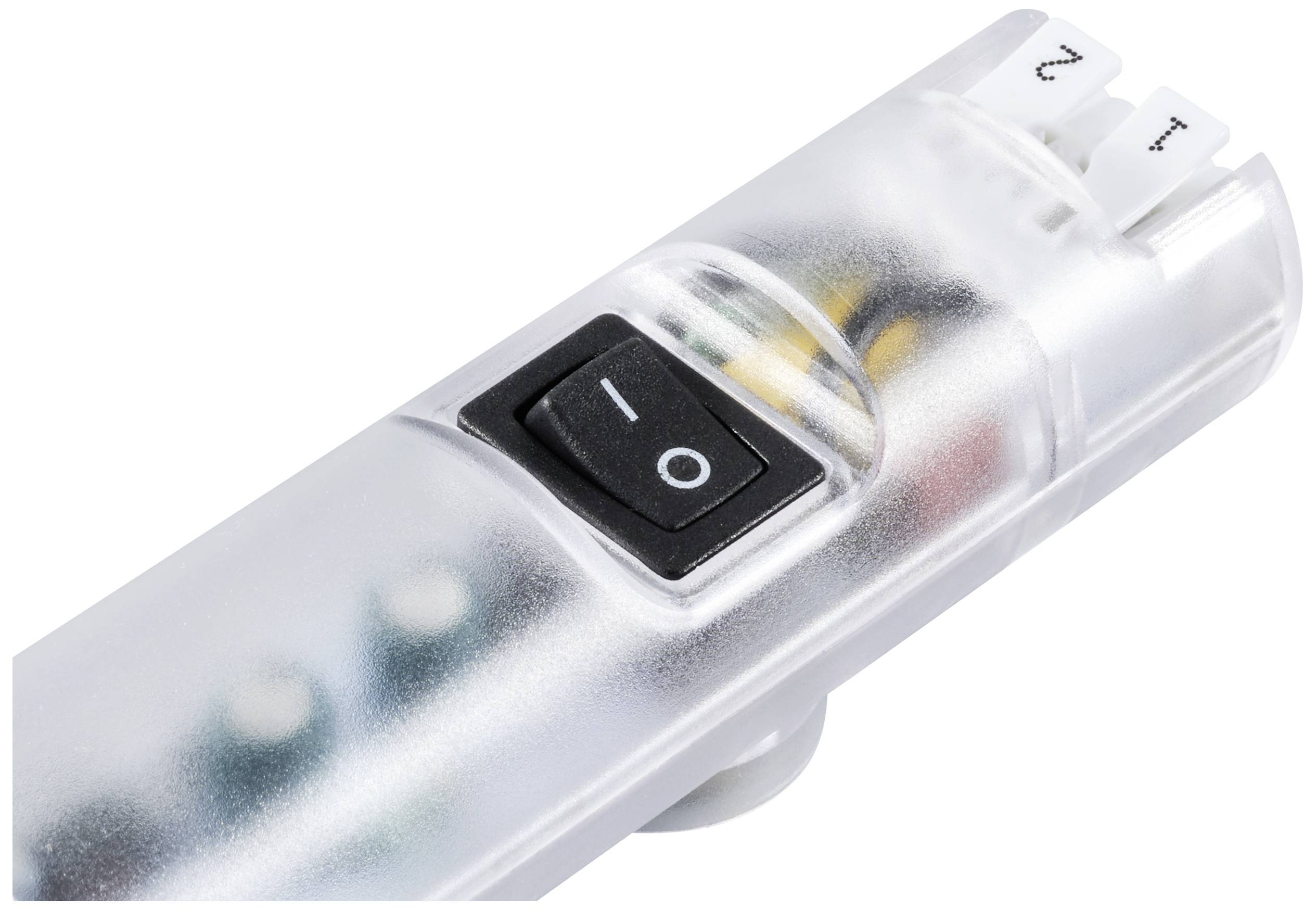

- On/Off switch
- Power comsumption: Max. 4 W
- Light color: Daylight
- Color Temperature: 6500 K
- Connection: Fast fixing spring connector

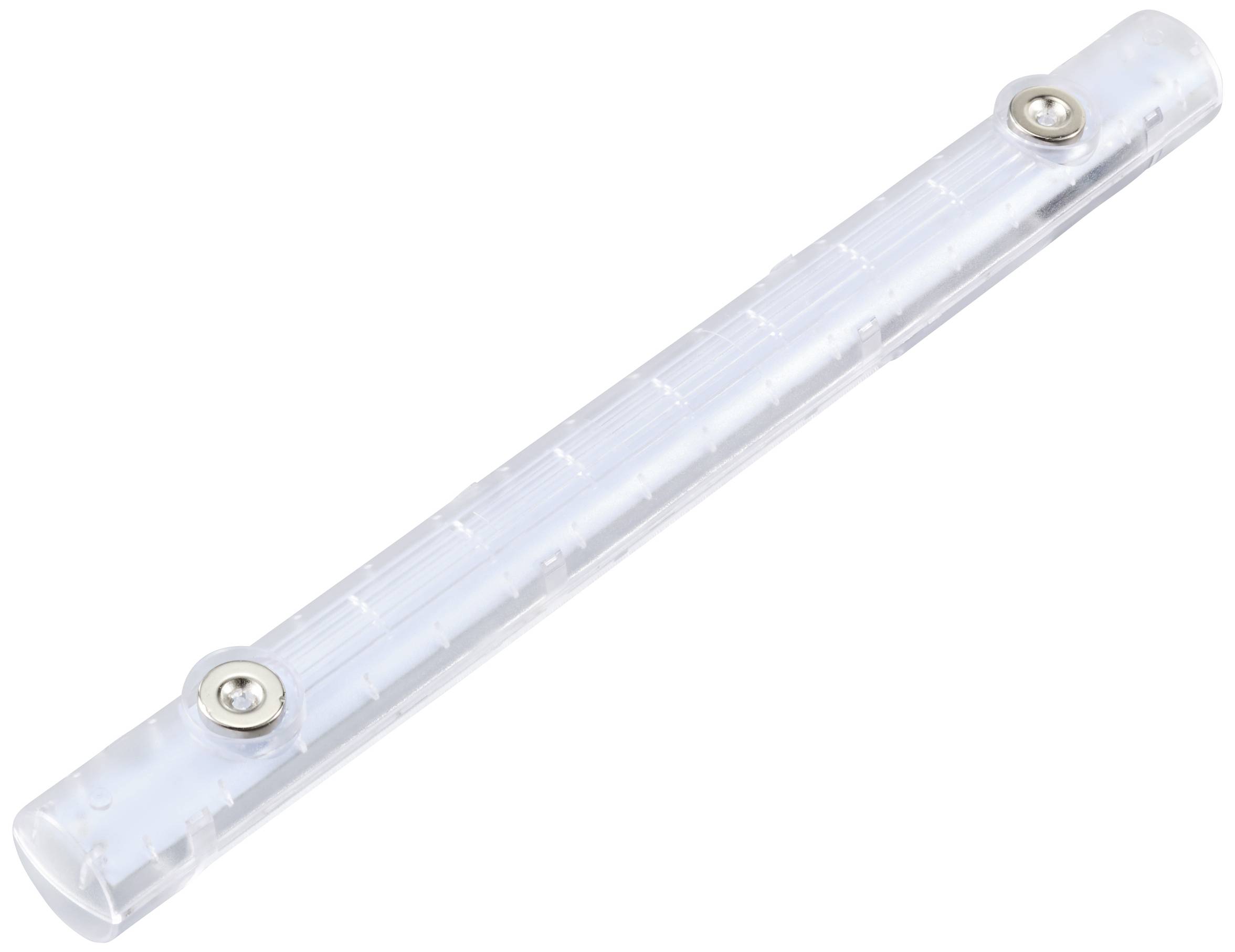

- Mounting: magnet
- Length: 352 mm
Technical specifications
- On/Off switch
- Mount: Magnet
- Product type
Enclosure light
- Type
TC-LED025-CM
- Min. operating voltage
48 V
- Max. operating voltage
265 V
- Operating voltage
48 - 265 V
4 W
- Colour temperature type
6500 K
- Luminous flux (Φ)
400 lm
- Connection
Quick-connect
- Length
352 mm
- Width
35 mm
- Height
32 mm
- Dim
(L x W x H) 352 x 35 x 32 mm
F (A - G)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192523 TRU COMPONENTS Enclosure light TC-LED025-CM EEC: F (A - G) 4 W 400 lm (L x W x H) 352 x 35 x 32 mm 1 pc(s)
Description

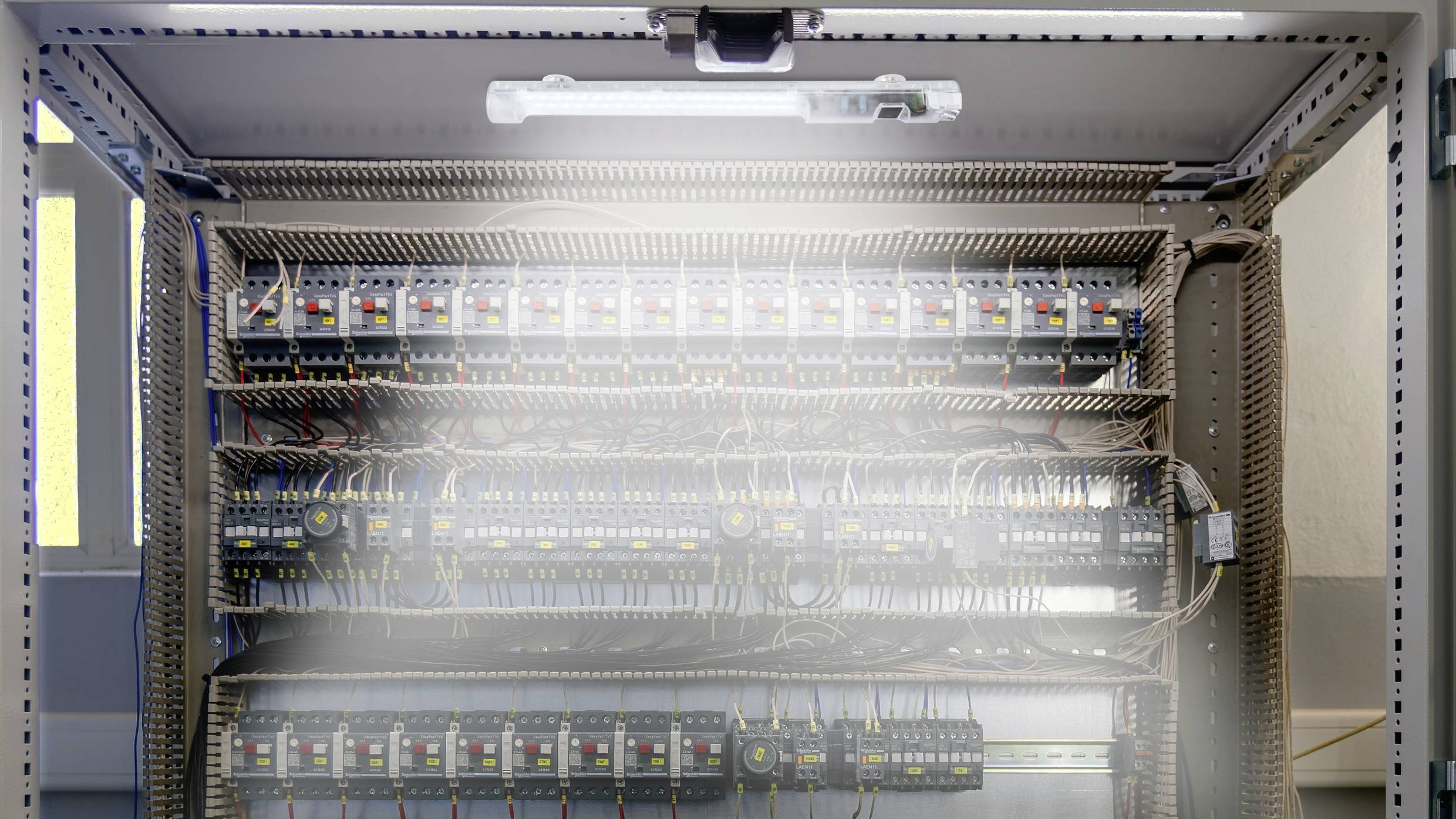

The LED 025-C lamp series is suitable for all types of control panels and casings, especially where the place is limited. The lamps have a very long life span thanks to the use of LED technology. Three different mounting options ensure greater flexibility during installation. Up to 10 lamps can be connected with each other via the current output (with the 12VDC versions up to 5 lamps). Both the power input and power output plugs snap into place in their jacks. The lamp can be quickly connected with the integrated power adapter and the plugs.
This text is machine translated.
This text is machine translated.
Features
- Power consumption: max. 4W
- Leuchtkraft: 400lm at 120°
- Lamp type LED, angle of radiation 120°
- Light color: Daylight, color temperature: 6,000K to 7.000K
- Life: 60,000h at +20°C (+68°F)
- 2-pin plug with snap-lock fastener
- Housing: Plastic, transparent
- Weight 0.135kg
- Operating/storage temperature: -30 to +60°C (-22 to +140°F) / -40 to +85°C (-40 to +185°F)
- Humidity during operation/storage: Max. 90% RH (non-condensing)
- Protection class IP20 / II (double insulated)
