Name: TRU COMPONENTS Linear actuator TC24-50-500 TC-14973268 Stroke length 50 mm Thrust 500 N 24 V DC 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3743317
Availability: InStock

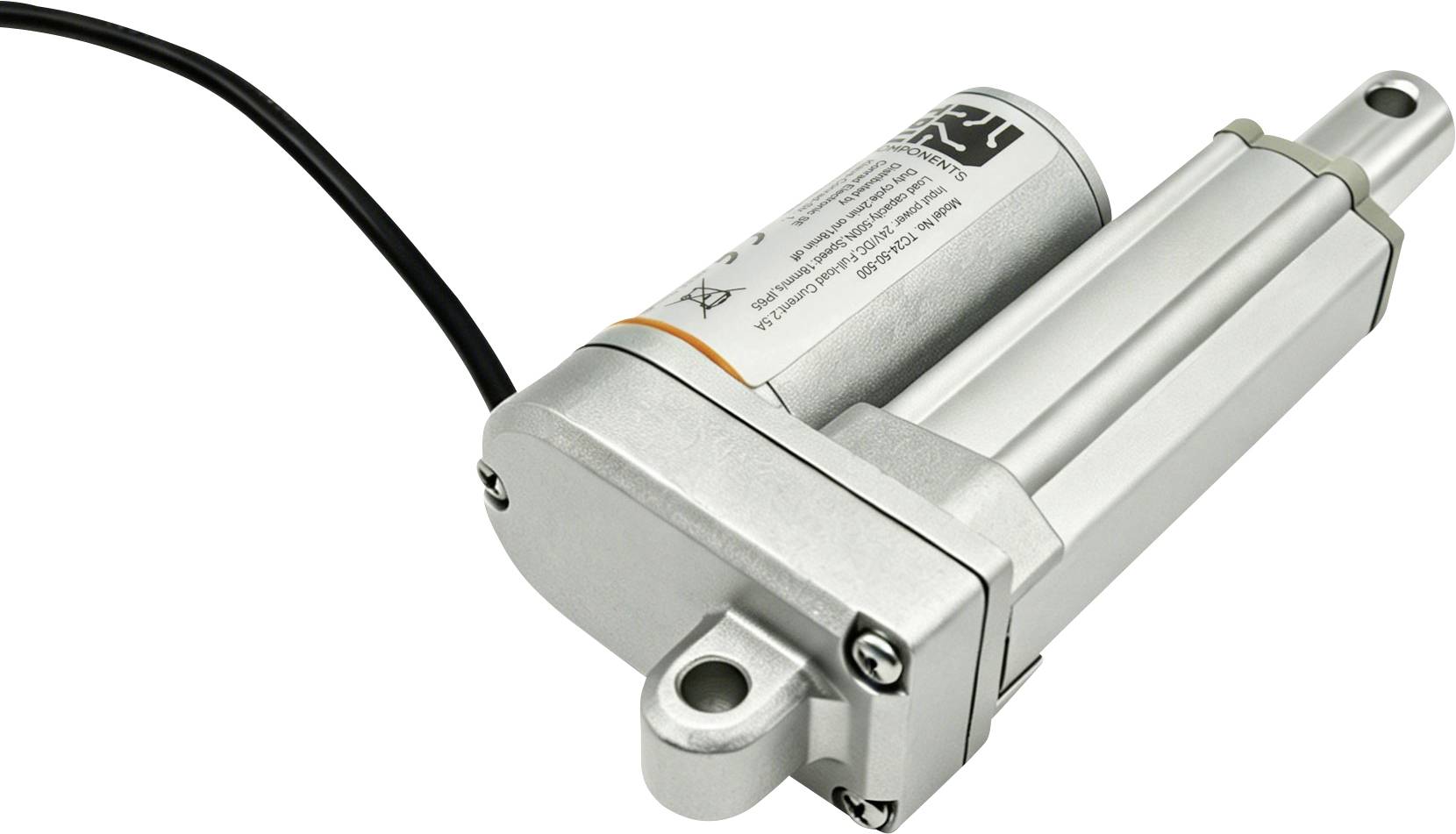

Silver electric linear actuator with attached black power cable, shown on a white background.

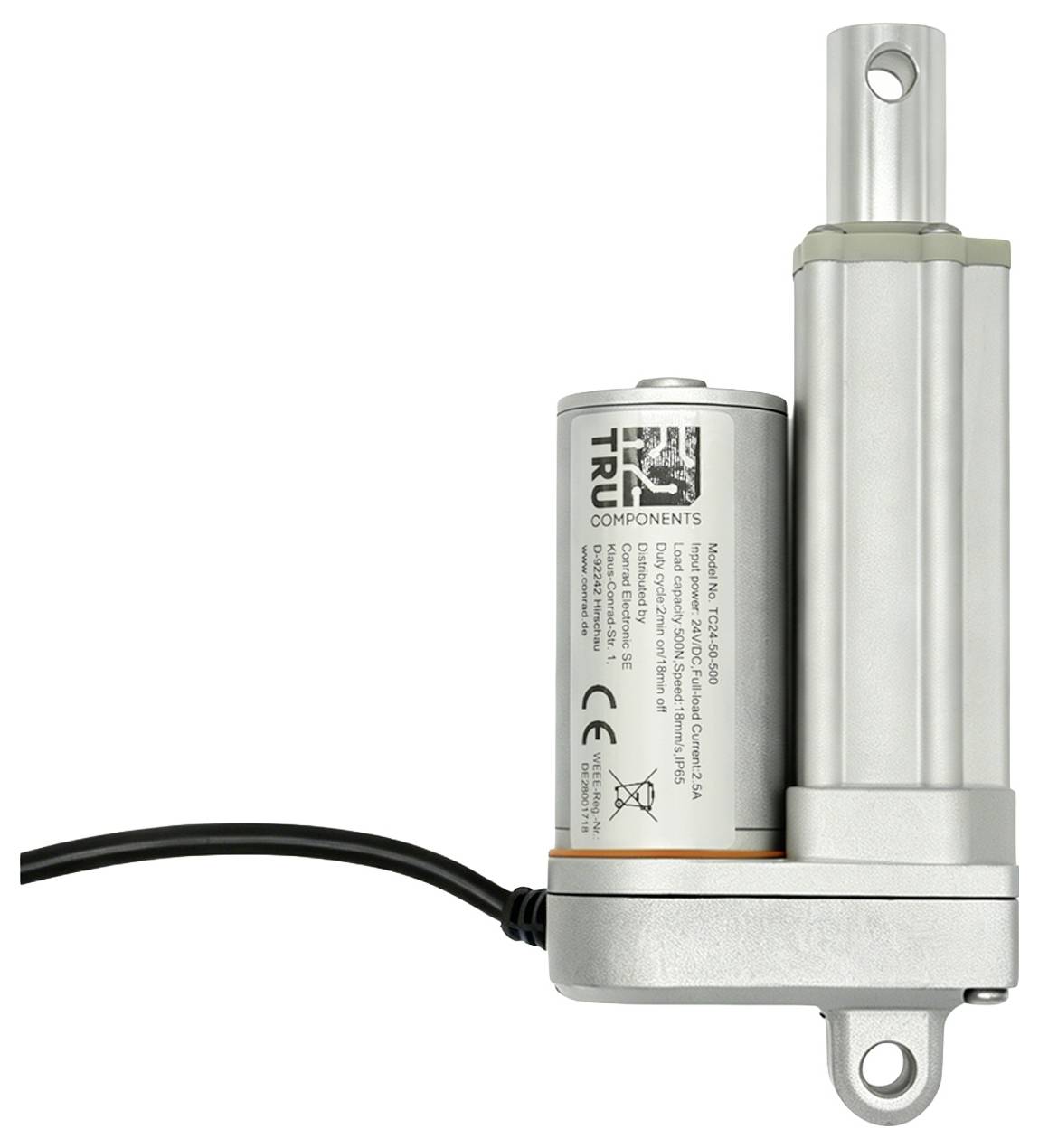

Silver electric linear actuator with attached black cable, shown isolated on a white background.

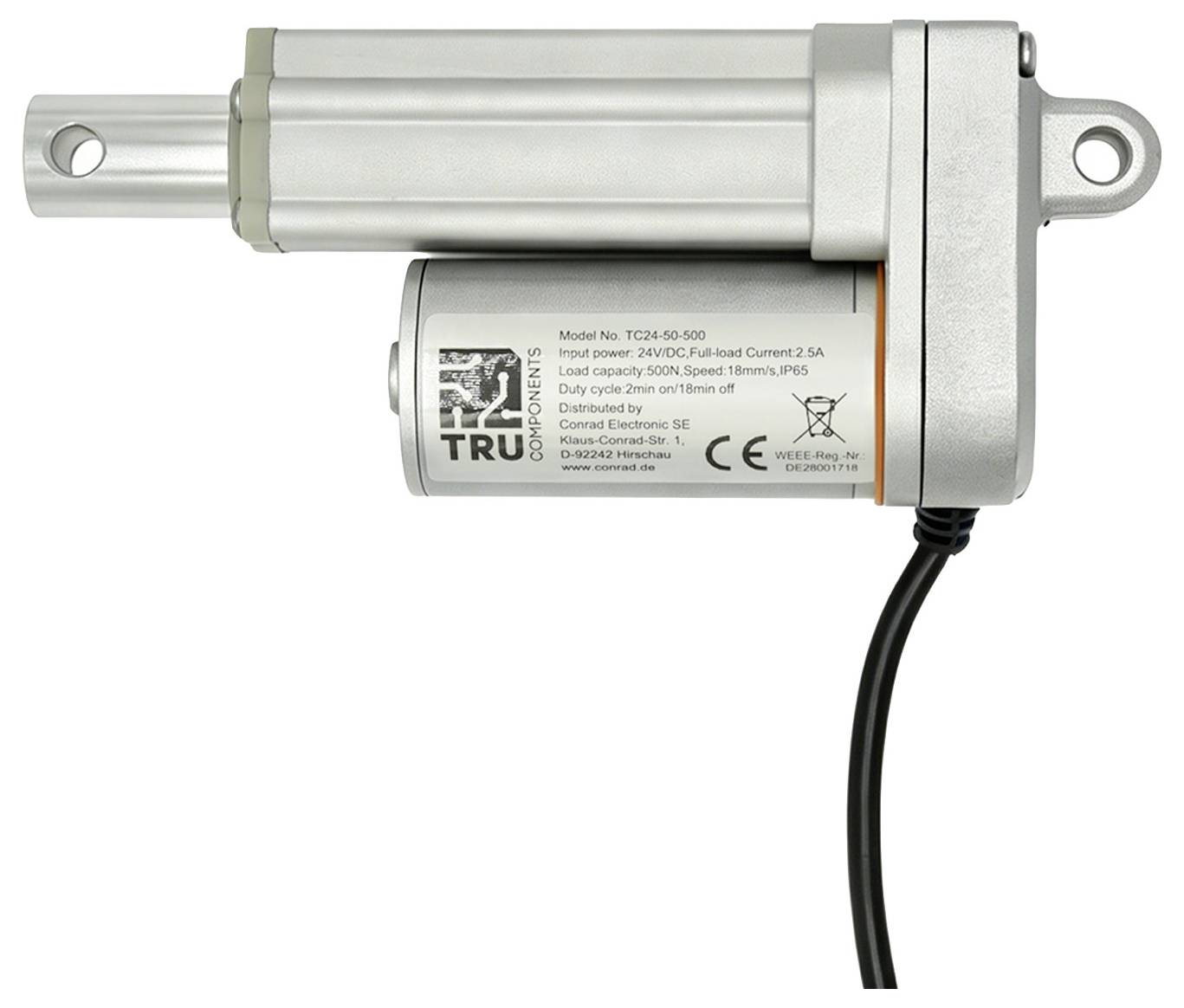

Electric linear actuator with silver metal housing, mounting brackets, and attached power cable on white background.

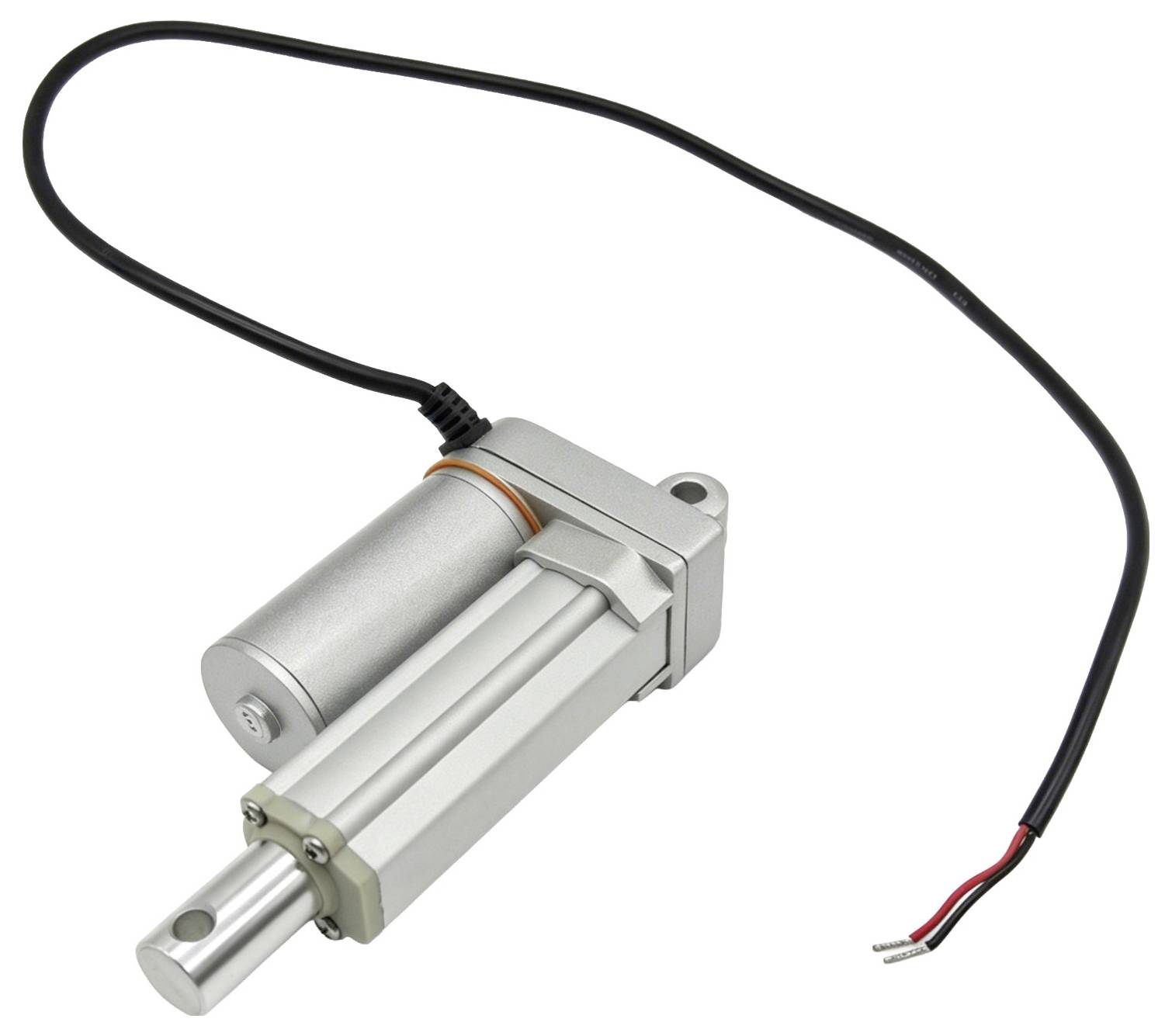

Electric linear actuator with attached black power cable and exposed red and black wire ends.

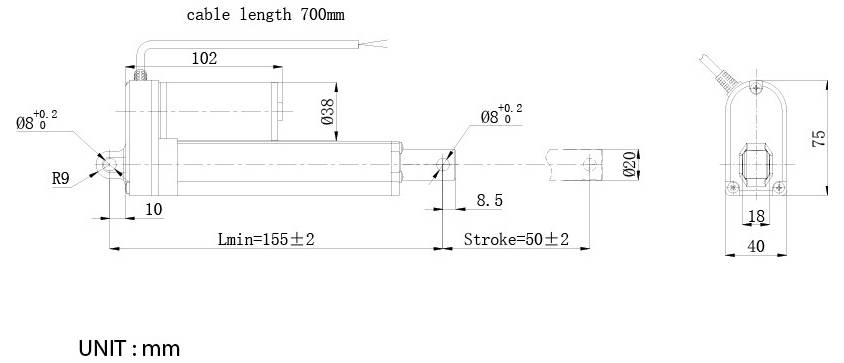

Technical dimension drawing of a cylindrical cable actuator, showing cable length 700 mm, unit in mm, overall length Lmin=155±2, stroke=50±2, and key diameters and mounting dimensions.

1/5

Nominal voltage

24 V DC

Speed (max.)

18 mm/s

Stroke length

50 mm

Thrust

500 N

Product type

Linear actuator

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 63.99 / piece)

€ 63.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC24-50-500

Input voltage: 24 V DC
Stroke: 50 mm
Rated load current: 3.5 A
Load capacity: 500 N
Minimum installation size: 155 ± 2 mm
Cable Length: 700 mm
Protection class: IP65

Technical specifications

Manufacturer part #: TC-14973268

Type: TC24-50-500

Nominal voltage: 24 V DC

Speed (max.): 18 mm/s

Stroke length: 50 mm

Thrust: 500 N

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging

Product type: Linear actuator
