Name: TRU COMPONENTS TC-14376164 Quick-release fastener flexible: 2.5-4.0 mm² fixed: 2.5-4.0 mm² Number of pins: 1 12 pc(s) Ye
Brand: TRU COMPONENTS
SKU: 3594041
Availability: InStock

A yellow insulated electrical connector with a crimp terminal for secure wiring connections.

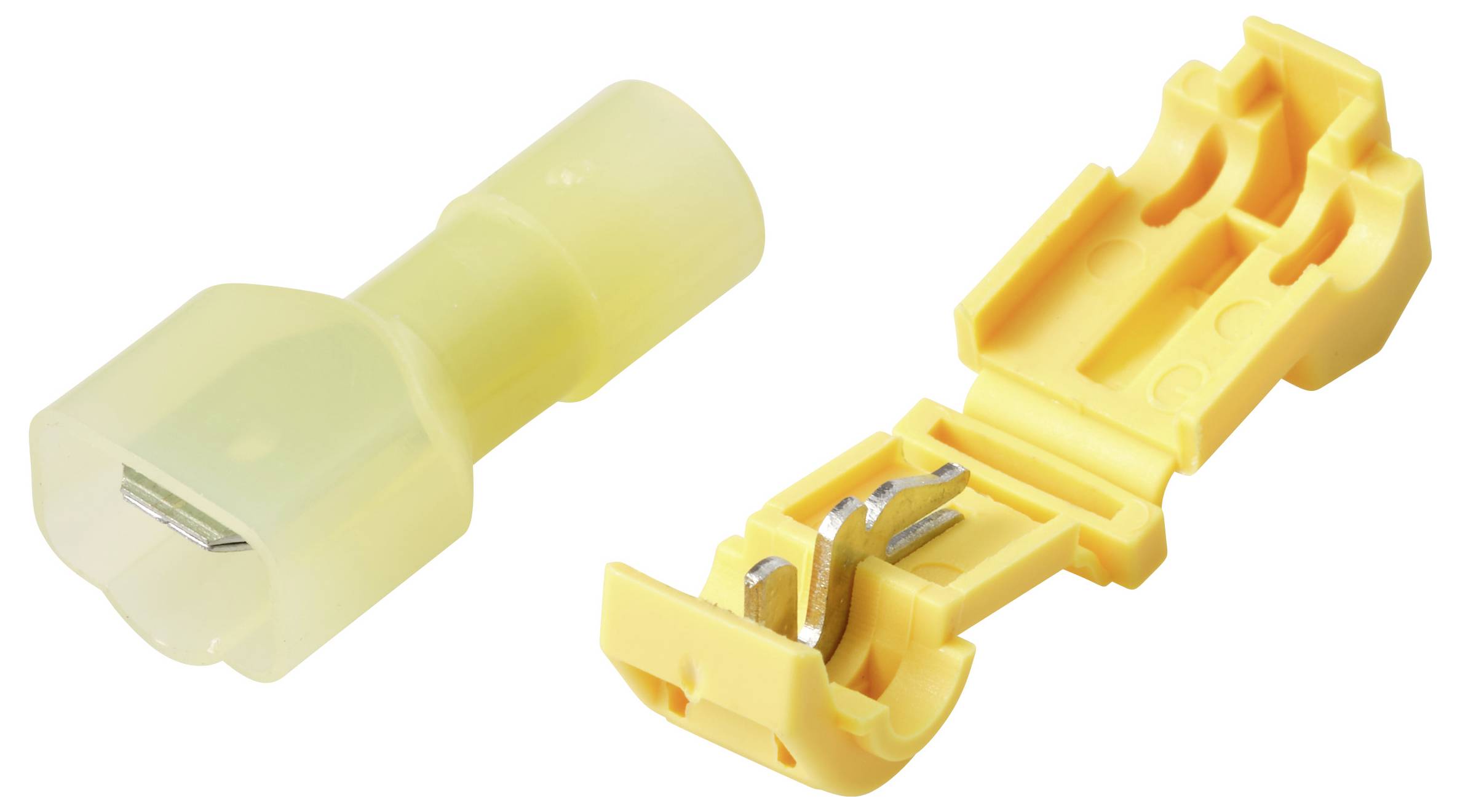

A closed yellow wire connector is next to an open connector revealing internal metal clamps, demonstrating how it secures wires.

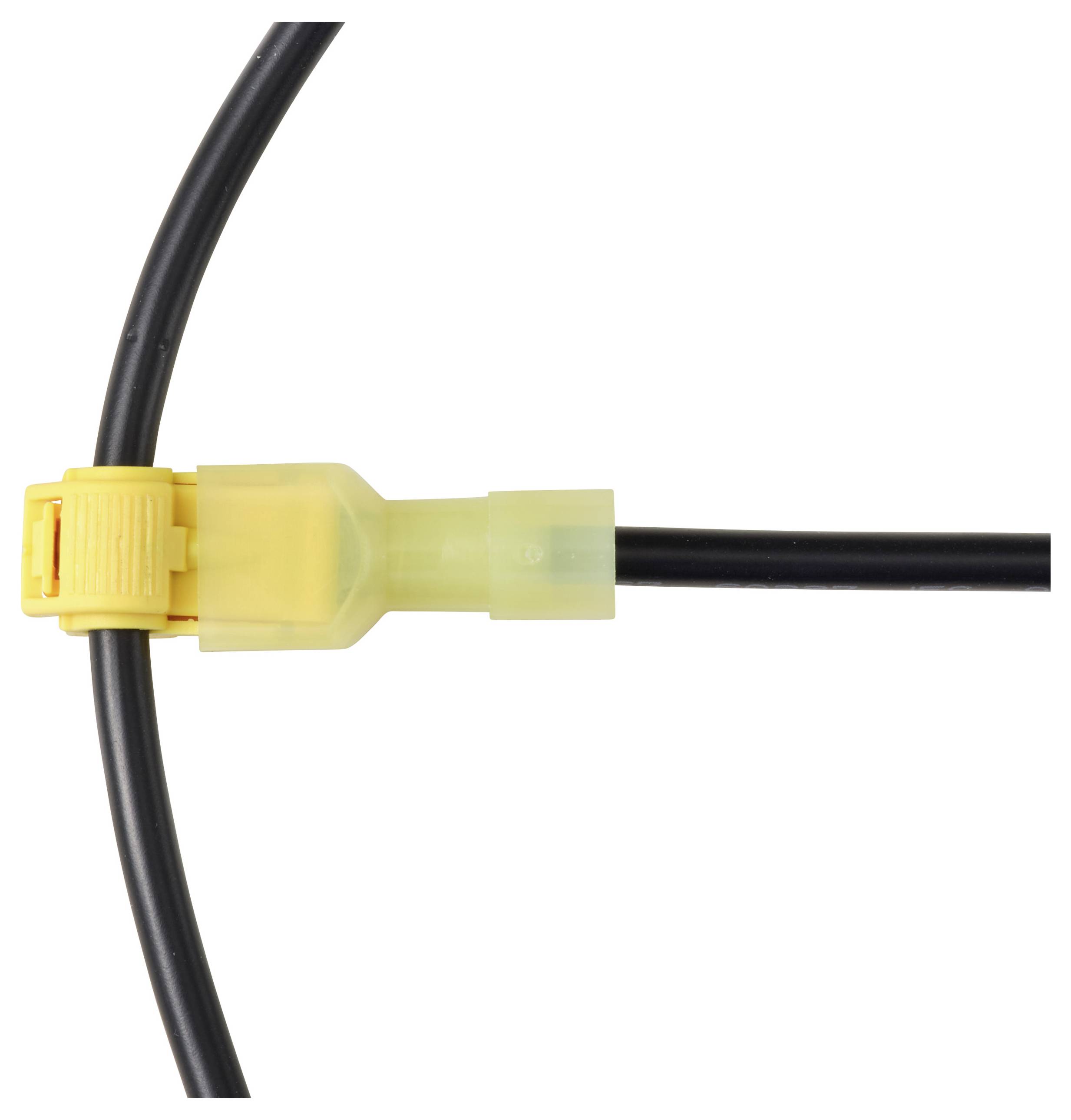

A yellow plastic connector joins two black cables in a T-shape, featuring a clip mechanism on the side.

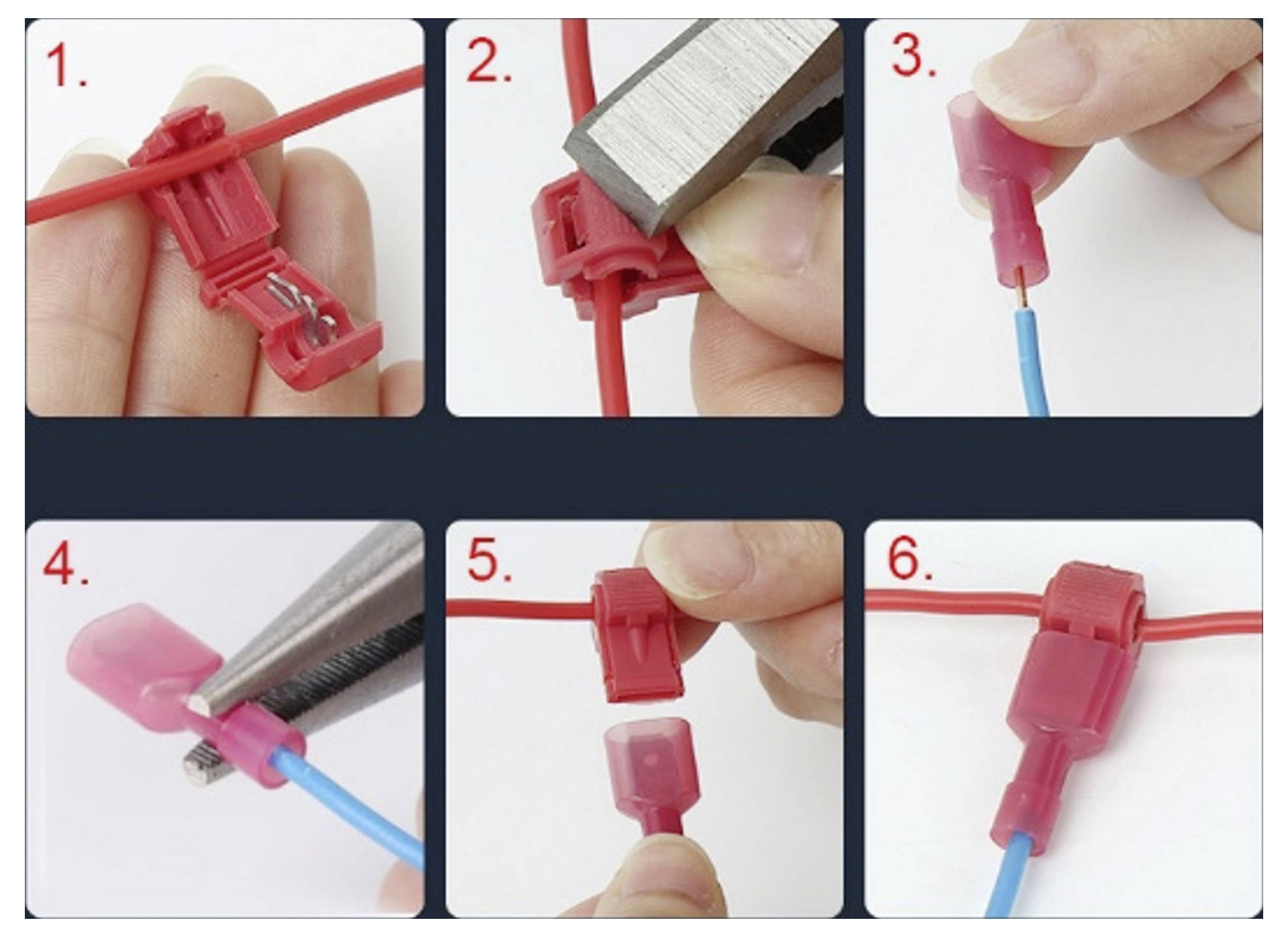

Step-by-step guide showing how to connect a red and blue wire using a snap connector. Steps: Insert, clamp, insert wire, trim, close connector.

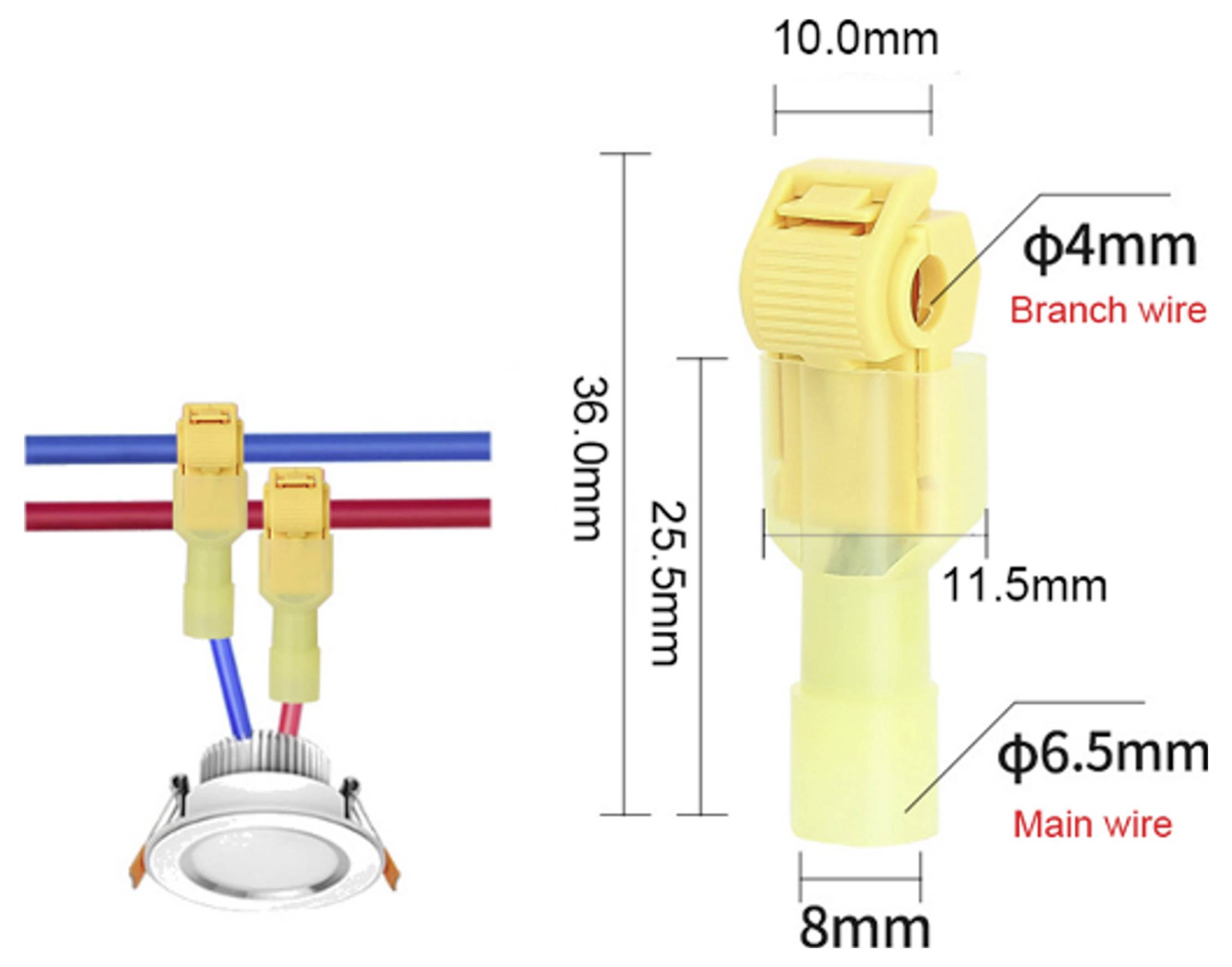

'Diagram showing a wiring connector for ceiling lights, with main wire diameter of 6.5mm and branch wire diameter of 4mm.'

1/5

Product type

Quick-release fastener

Cross section (flexible) (min.)

2.5 mm²

Cross section (flexible) (max.)

4.0 mm²

Cross section (inflexible) (min.)

2.5 mm²

Cross section (inflexible) (max.)

4.0 mm²

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

299 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 12 pc(s))

Set(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

T-splice connector, quick release, 12 pieces, 1-pole, with socket, yellow, 5 A, 12/24 V, 2.5-4 mm²

Compatible with solid, stranded, and flexible conductors.

Technical specifications

Bore diameter: 4.0 mm/6.5 mm

Product type: Quick-release fastener

Cross section (flexible) (min.): 2.5 mm²

Cross section (flexible) (max.): 4.0 mm²

Cross section (inflexible) (min.): 2.5 mm²

Cross section (inflexible) (max.): 4.0 mm²

Number of pins: 1

Factory colour: Yellow

Nominal current: 5 A

Nominal current - rounded value: 5 A

Content: 12 pc(s)

Dim: (L x W) 36.0 mm x 11.5 mm

Manufacturer part #: TC-14376164

Stripping length: 6 mm

Industrial packaging: No

Insulation material: PP-PA6

Contact material: Brass

Nominal voltage: 12 V
24 V

Width: 11.5 mm

Length: 36.0 mm

Temperature range: -20 to +85 °C

Connector clip features: Quick-release

Plastic free packaging: Plastic-free packaging
