Name: TRU COMPONENTS TC-14376168 Quick-release fastener flexible: 1.5-2.5 mm² fixed: 1.5-2.5 mm² Number of pins: 1 12 pc(s) Bl
Brand: TRU COMPONENTS
SKU: 3594042
Availability: InStock

A blue and teal insulated electrical crimp connector, used for joining or terminating electrical wires securely.

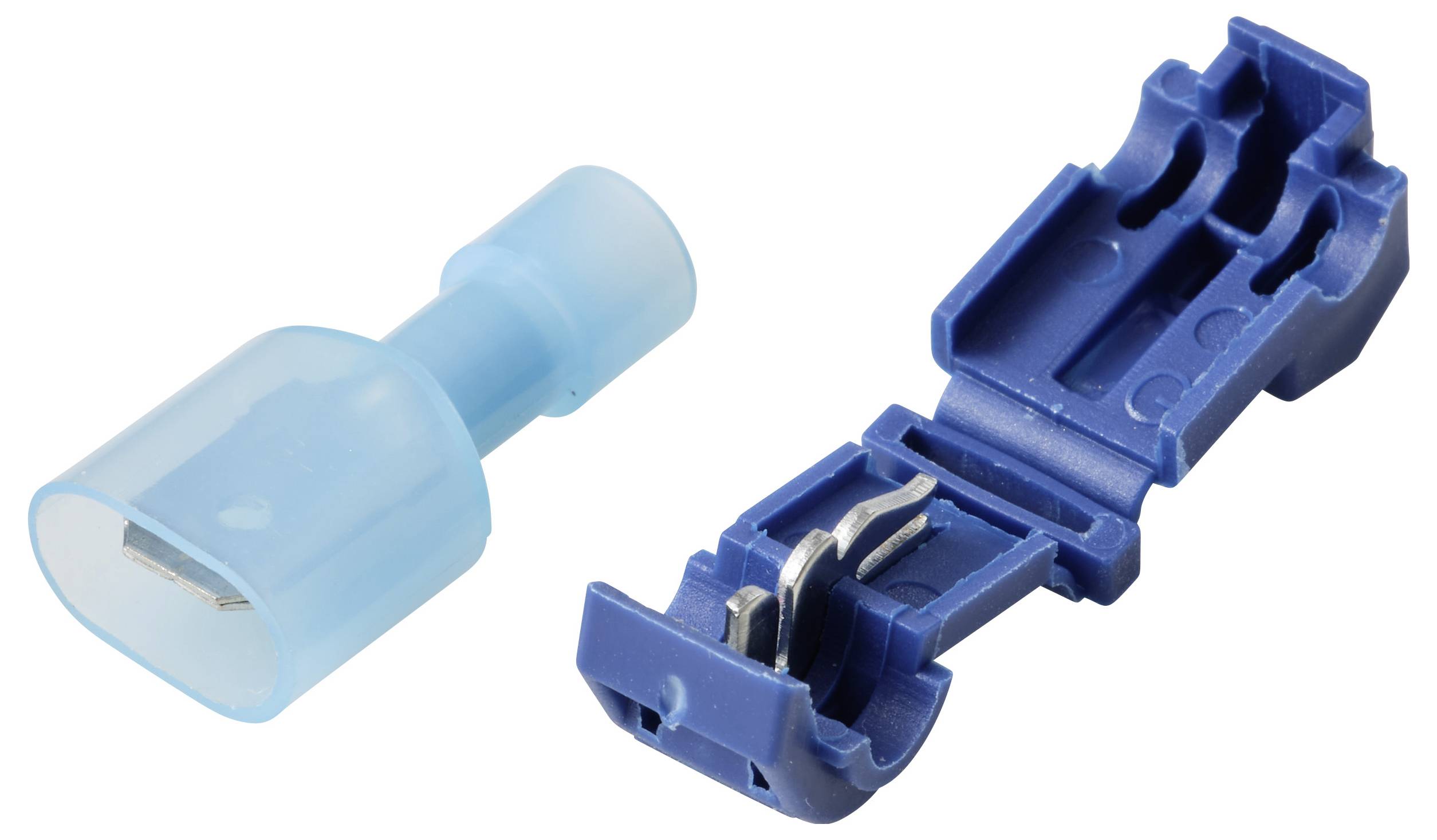

A blue electrical connector beside a blue wire splice connector. The connectors are designed for joining or connecting wires securely.

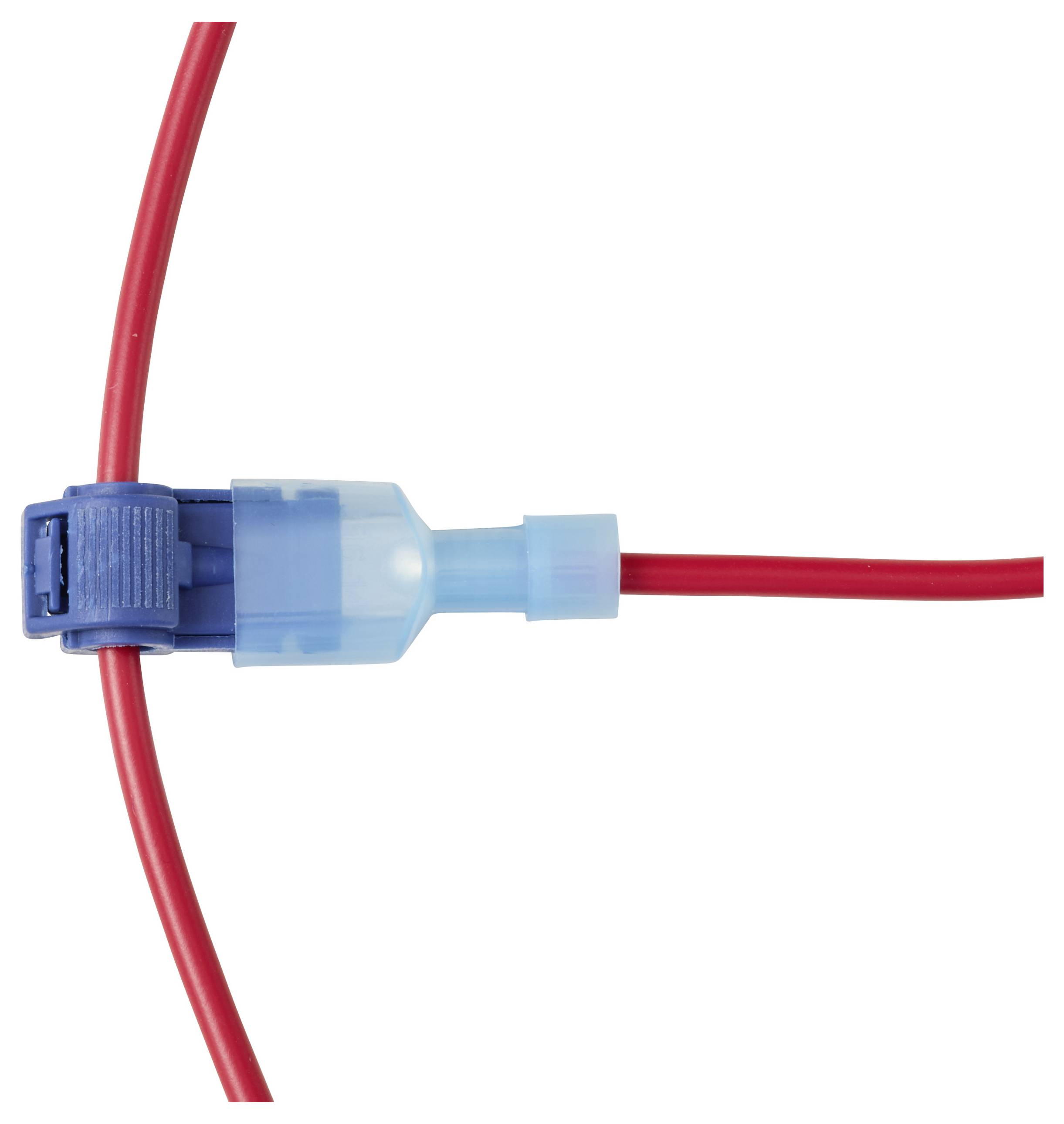

Red wires connected by a blue electrical connector.

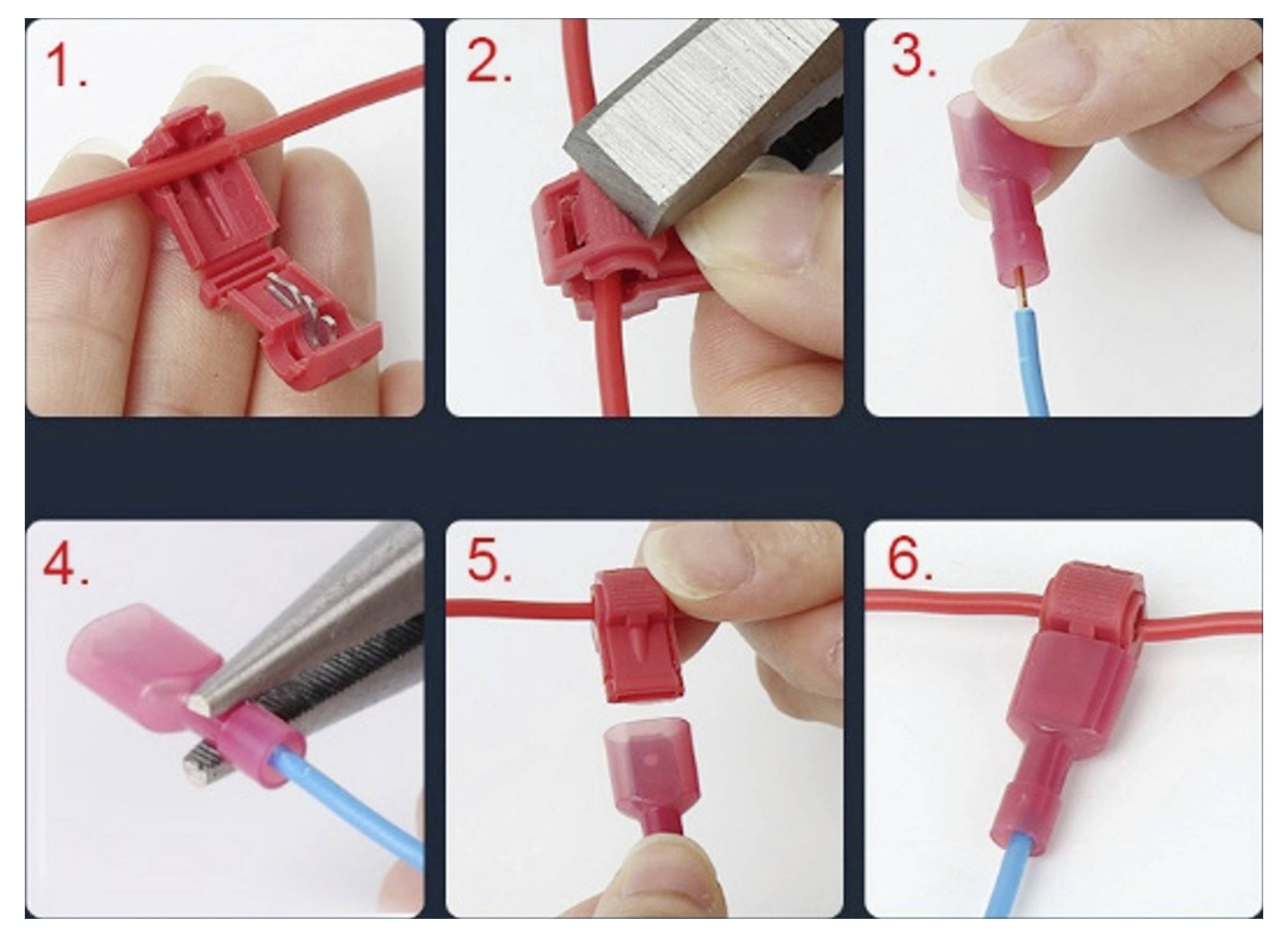

Steps to connect wires with a connector: 1- Insert red wire into connector. 2- Press with tool. 3- Strip blue wire. 4- Insert blue wire. 5- Cover connector. 6- Completed connection.

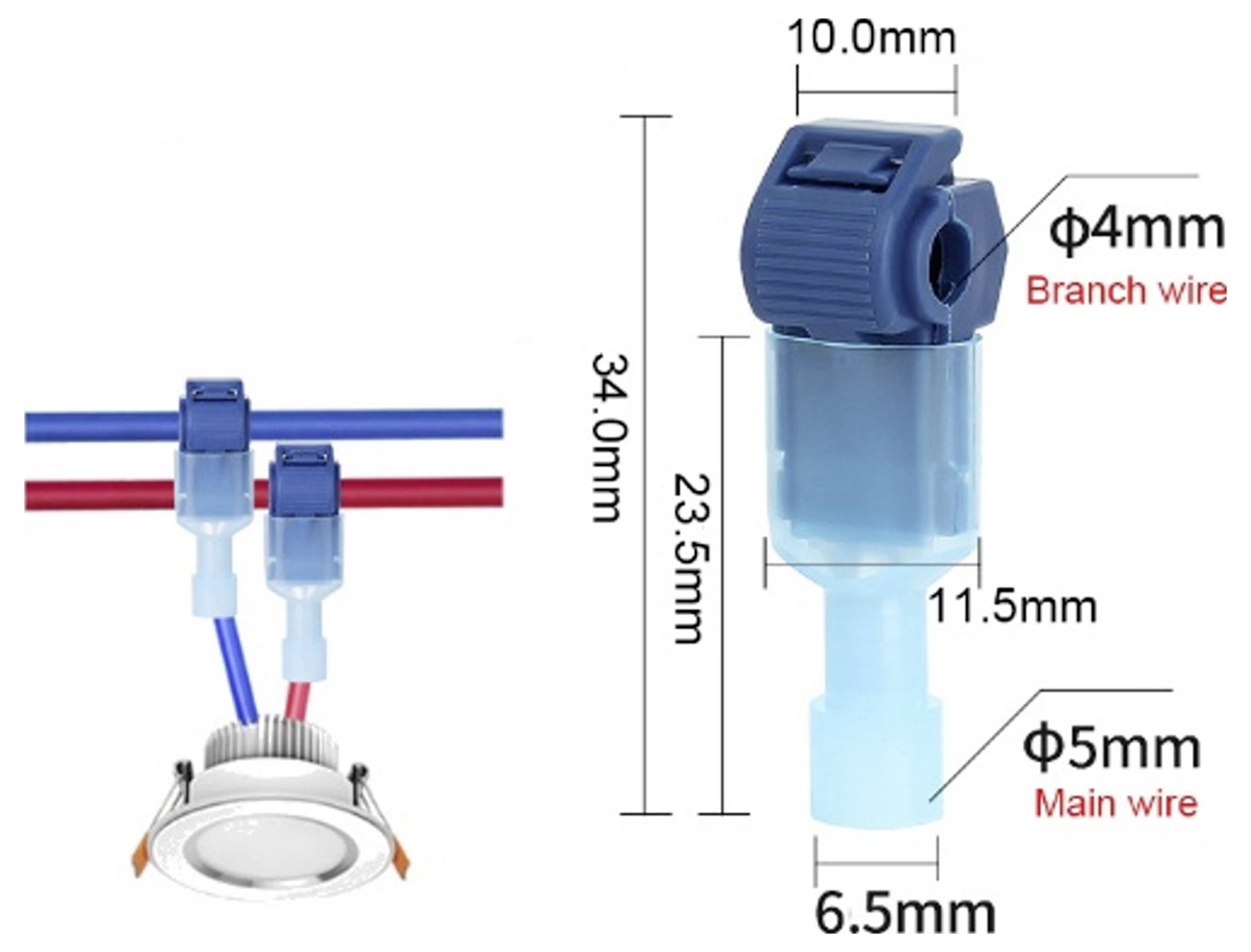

'Electrical connector diagram: Main wire 5mm connects to branch wire 4mm. Dimensions: 10mm width, 34mm length, 6.5mm base.'

1/5

Product type

Quick-release fastener

Cross section (flexible) (min.)

1.5 mm²

Cross section (flexible) (max.)

2.5 mm²

Cross section (inflexible) (min.)

1.5 mm²

Cross section (inflexible) (max.)

2.5 mm²

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

295 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 12 pc(s))

Set(s)

Total (€ 5.99 / piece)

€ 5.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

T-splice connector, quick release, 12 pieces, 1-pole, with socket, blue, 5 A, 12/24 V, 1.5-2.5 mm²

Compatible with solid, stranded, and flexible conductors.

Technical specifications

Bore diameter: 4.0 mm/5.0 mm

Product type: Quick-release fastener

Cross section (flexible) (min.): 1.5 mm²

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (min.): 1.5 mm²

Cross section (inflexible) (max.): 2.5 mm²

Number of pins: 1

Factory colour: Blue

Nominal current: 5 A

Nominal current - rounded value: 5 A

Content: 12 pc(s)

Dim: (L x W) 34.0 mm x 11.5 mm

Manufacturer part #: TC-14376168

Stripping length: 6 mm

Industrial packaging: No

Insulation material: PP-PA6

Contact material: Brass

Nominal voltage: 12 V
24 V

Width: 11.5 mm

Length: 34.0 mm

Temperature range: -20 to +85 °C

Connector clip features: Quick-release

Plastic free packaging: Plastic-free packaging
