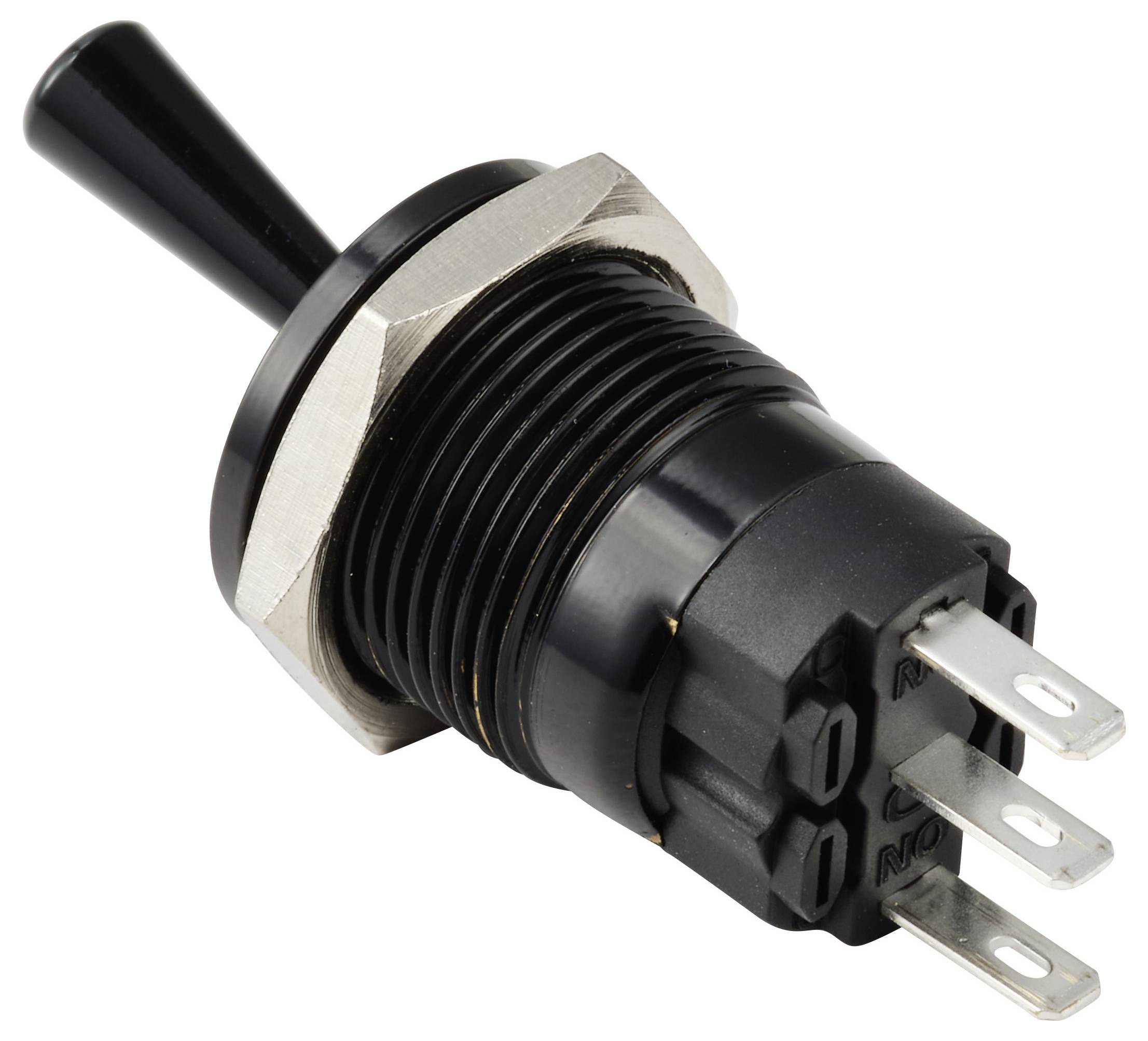

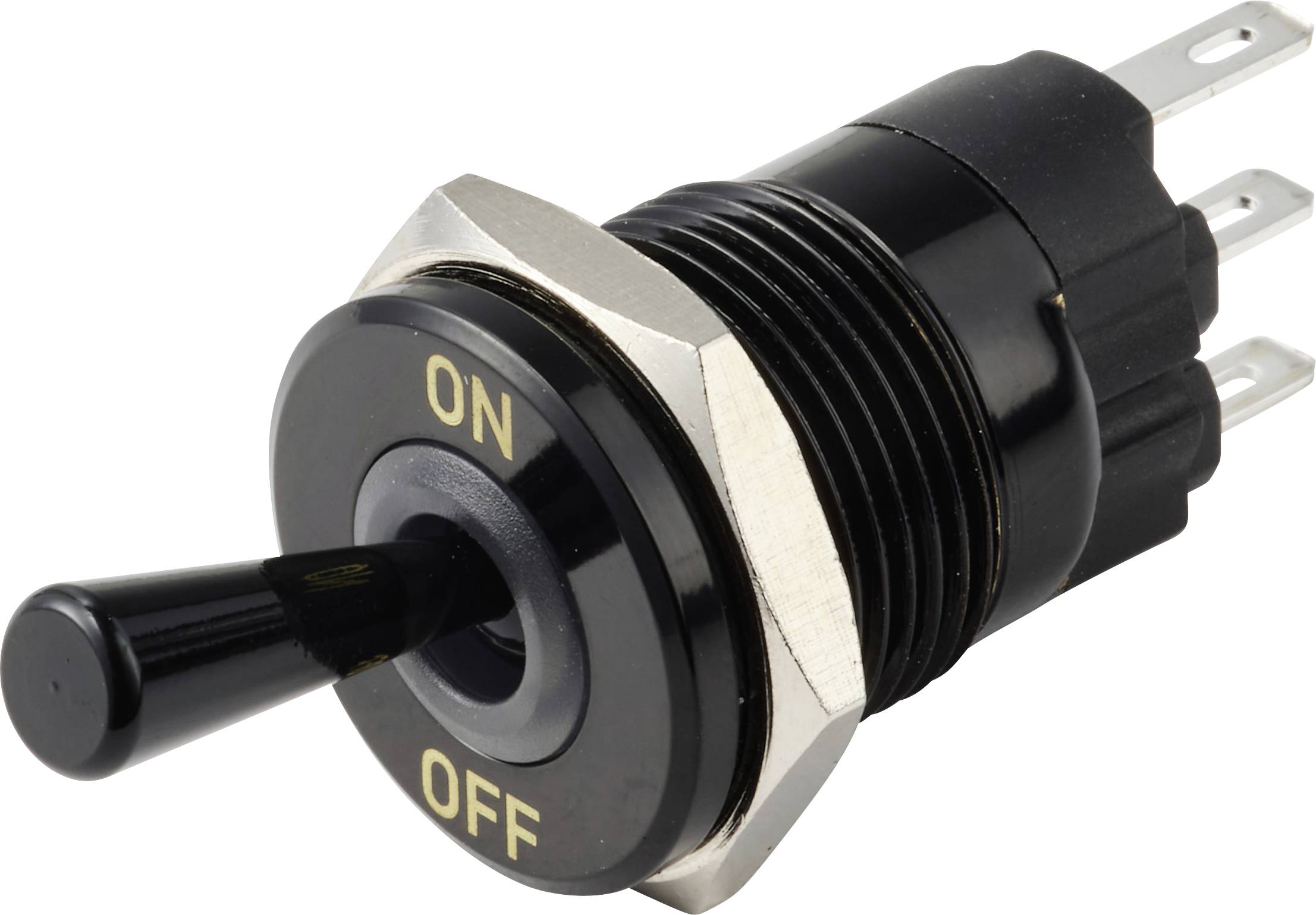

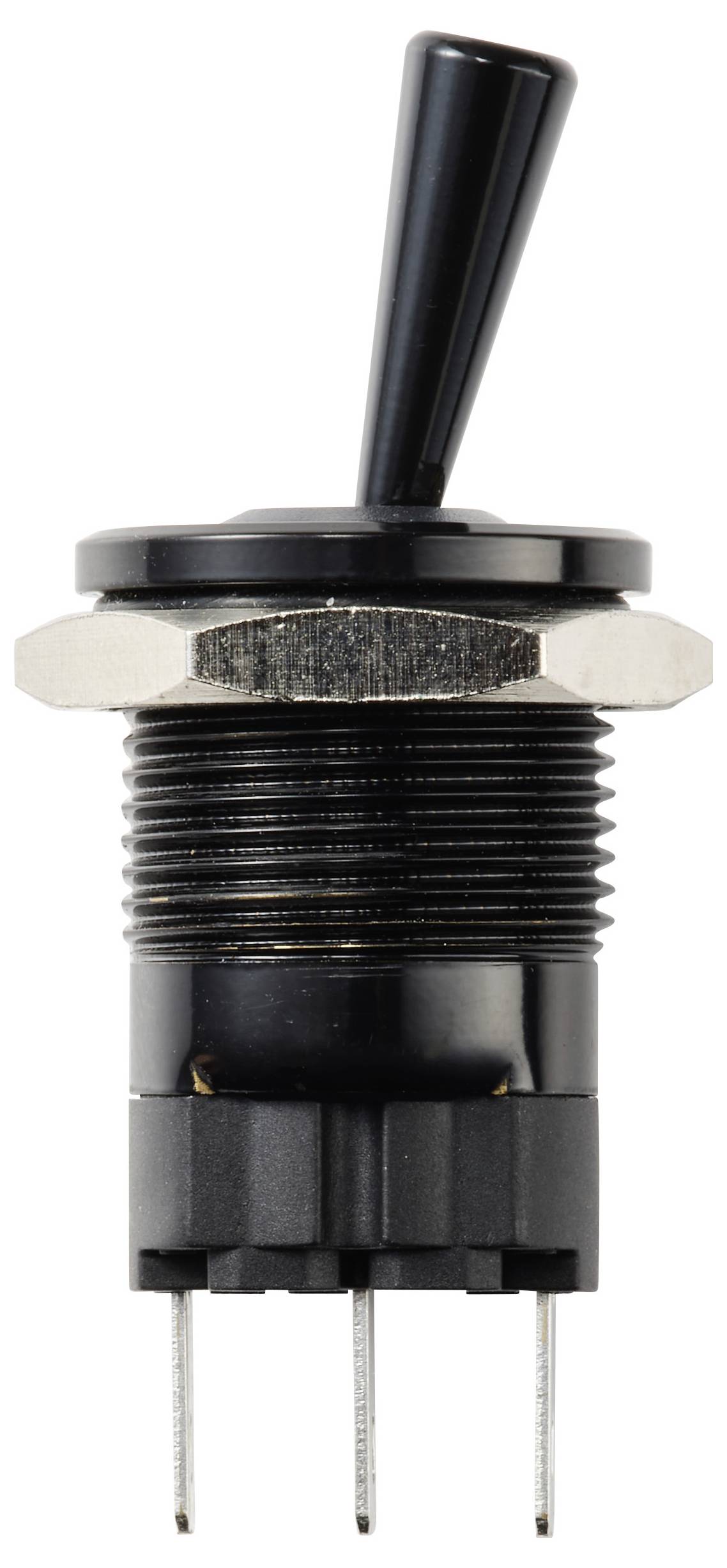

TRU COMPONENTS TC-14378412 Toggle switch 250 V AC 15 A 1 x On/Off IP67 1 pc(s)
EAN:
Part number:
Item no:
Product type
Toggle switch
Casing/button colour
Black
Lighting type
None
Switch position
1 x On/Off
Connection
Pin terminal (flat)
Datasheet (PDF)
Number
Total (€ 4.23 / piece)
€ 4.23
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Toggle switch, brass, black, 16 mm, 5 A, 250 V/AC, IP67
- ()
Our service for you
Technical specifications
- Housing material: Black plated brass
- Rocker material: Black plated brass
- Product type
Toggle switch
- Casing/button colour
Black
- Lighting type
None
- Switch position
1 x On/Off
- Contact material
Silver alloy
- Connection
Pin terminal (flat)
- Number of pins
1
- Contact resistance
≤ 50 mΩ
- Switching voltage
250 V AC
- Switching current (max.)
15 A
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Height
46.7 mm
- Recess diameter
16 mm
- Recess depth
29.2 mm
- Electrical lifespan
50,000 cycles
- Front panel thickness
8 mm
IP67
- Insulation resistance
≥ 100 MΩ (500 V DC)
- Dim
(Ø x H) 18 mm x 46.7 mm
- RoHS-compliant
Yes
- (Ø)
18 mm
- Type
TC-14378412
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3594603 TRU COMPONENTS TC-14378412 Toggle switch 250 V AC 15 A 1 x On/Off IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3594603 TRU COMPONENTS TC-14378412 Toggle switch 250 V AC 15 A 1 x On/Off IP67 1 pc(s)
Description
Scope of delivery
- Toggle switch
- Rubber ring
- Silver metal nut
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
