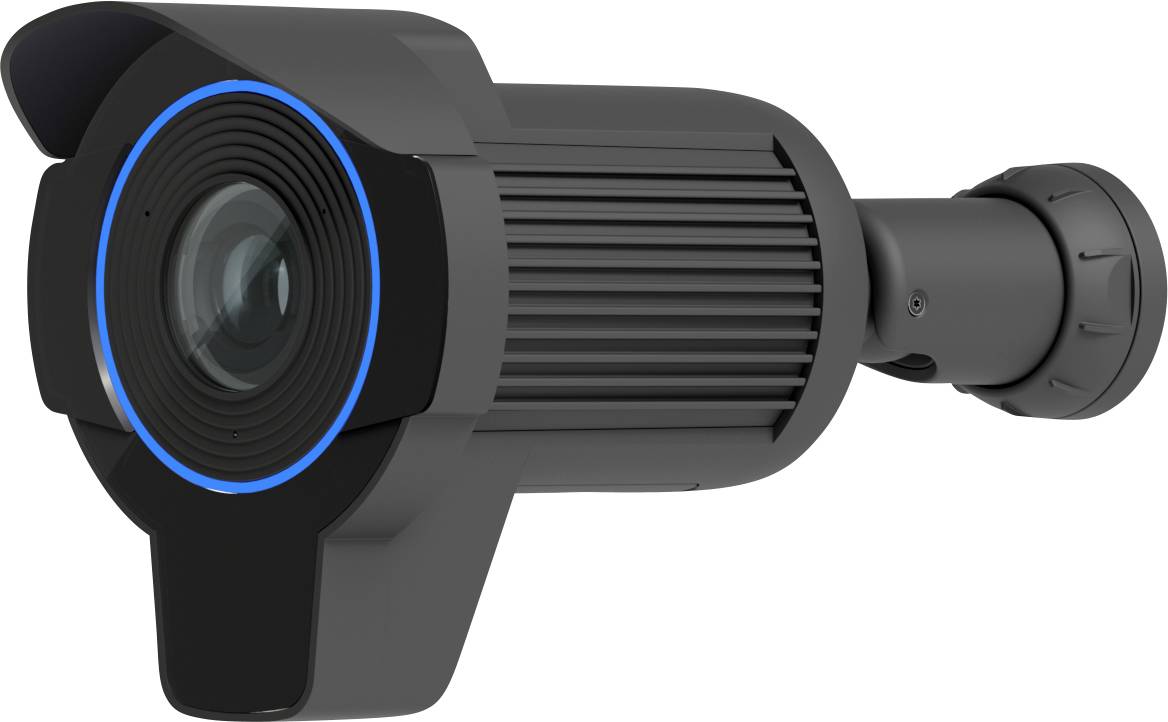

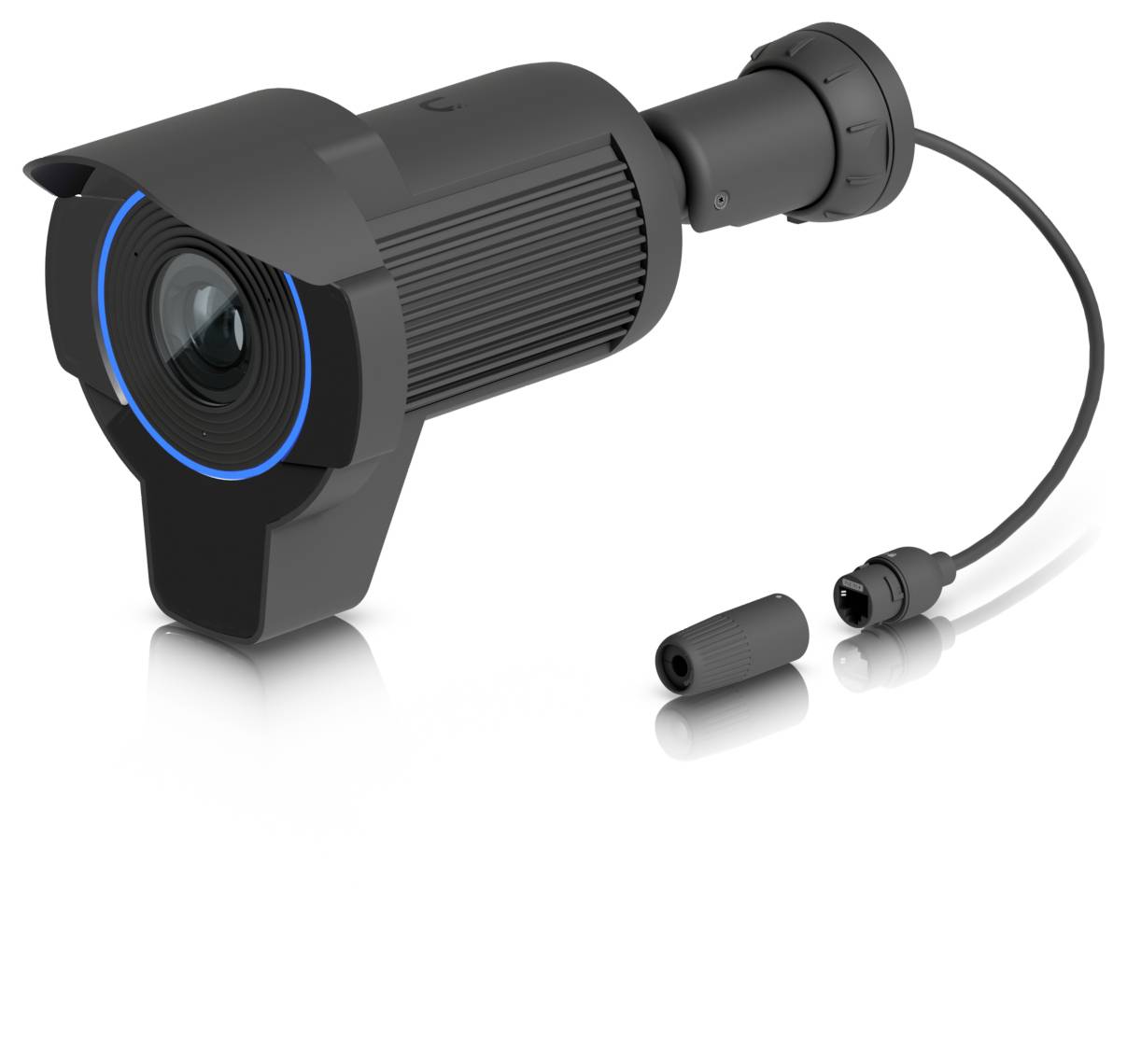

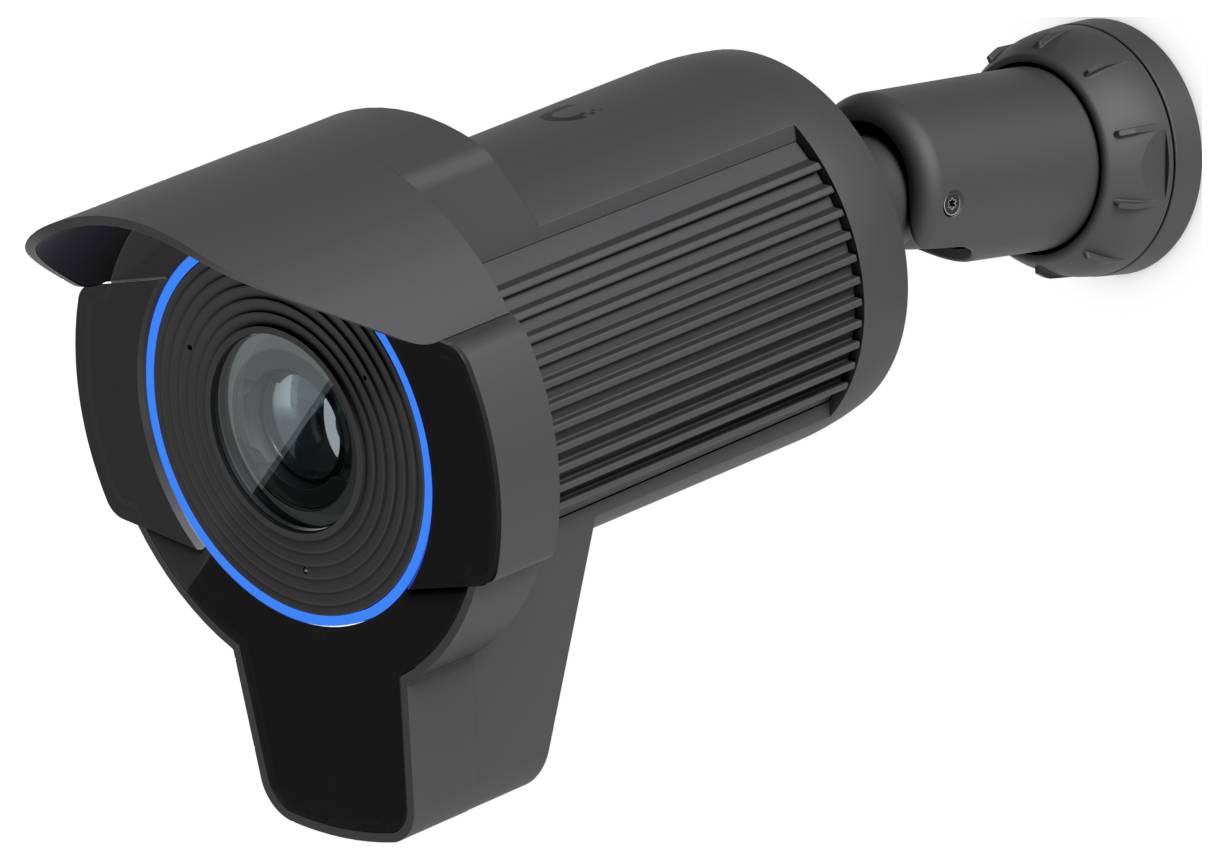

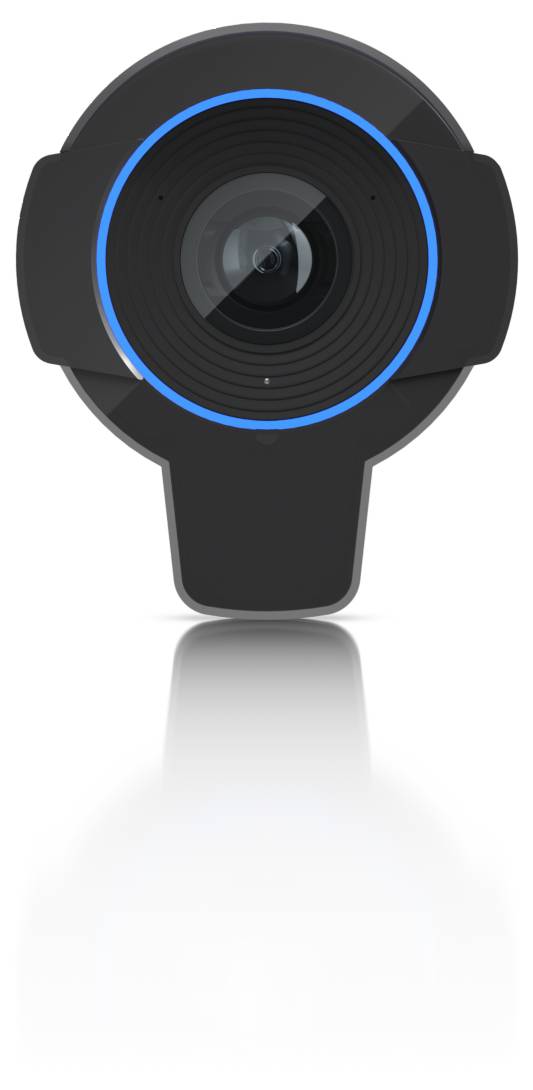

Ubiquiti Networks AI LPR UVC-AI-LPR-B Corded IP CCTV camera 3840 x 2160 p
EAN:
Part number:
Item no:
Highlights & Details
Corded IP-Bullet camera;3840 x 2160 p;Ubiquiti NetworksAI LPR;UVC-AI-LPR-BOutdoors, Indoors
- IP security camera for indoors and outdoors
- 25.4 / 1.8 mm (1 / 1.8") 8 MP 3840 x 2160 pixels
- Wired Ethernet/LAN
- Night view 15 m IR
- Optical Zoom: 3x

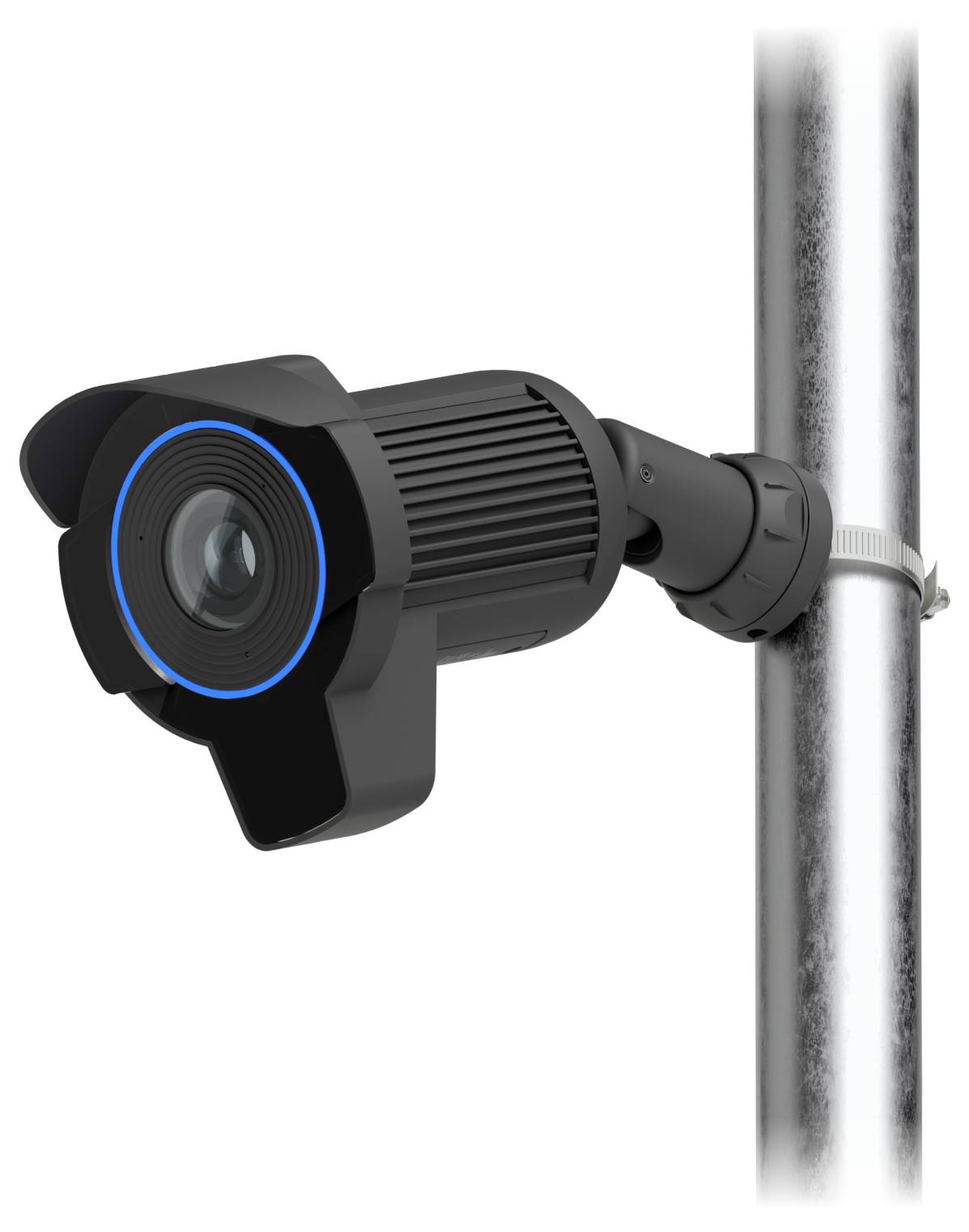

- Cartridge (form) wall / mast weatherproof
- IP66 IK04 weatherproofing
Technical specifications
- Supported positioning: Inside & outside
- Form factor: Cartridge (shape)
- Product type
CCTV camera
- CCTV features
Optical zoom
Pet recognition
Vehicle recognition
Identity recognition
- Camera type
Bullet camera
- Power supply
PoE (Power over Ethernet)
- Resolution (max.)
3840 x 2160 p
- Sensor size
1/1.8" (14.11 mm)
- Focal length
4,1 - 12,3 mm
- Max. viewing angle hor.
109.9°
- Vertical viewing angle
60°
- Vertical viewing angle
127.7°
- Transfer type
Corded
- IR range (max.)
15 m
- Used at
Outdoors
Indoors
- Type
microSD card
- Width
130 mm
- Height
151.4 mm
- Depth
302.9 mm
- Dim
(W x H x D) 130 x 151.4 x 302.9 mm
- Weight
1.5 kg
- F-numbers
ƒ/1.53 to ƒ/3.3
- Enclosure material
Polycarbonate (PC)
Aluminium alloy
- Factory colour
Black
IP66
- Signal standard
IP
- Cable length
0.3 m
- Microphone
Yes
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Processor/type
ARM Cortex-A53
- UKCA
yes
- Screws included
yes
- Operating temperature (T-T)
-20 - 50 °C
- Weatherproof
yes
- Ethernet LAN
yes
- Optical sensor size
25,4 / 1,8 mm (1 / 1.8")
- Privacy masking
yes
- Text caption overlay
yes
- Infrared (IR) cut-off filter
yes
- Noise reduction
yes
- Card reader integrated
yes
- Frame rate
30 fps
- Reset button
yes
- License plate recognition
yes
- Capture Speed Range
0 - 90 km/h
- Zoom capability
yes
- Minimum aperture number
1.53
- Maximum aperture number
3.3
- Night vision
yes
- Maximum memory card size
64 GB
- Operating relative humidity (H-H)
10 - 90 %
- Optical zoom
3 x
- Built-in processor
yes
- Total megapixels
8 MP

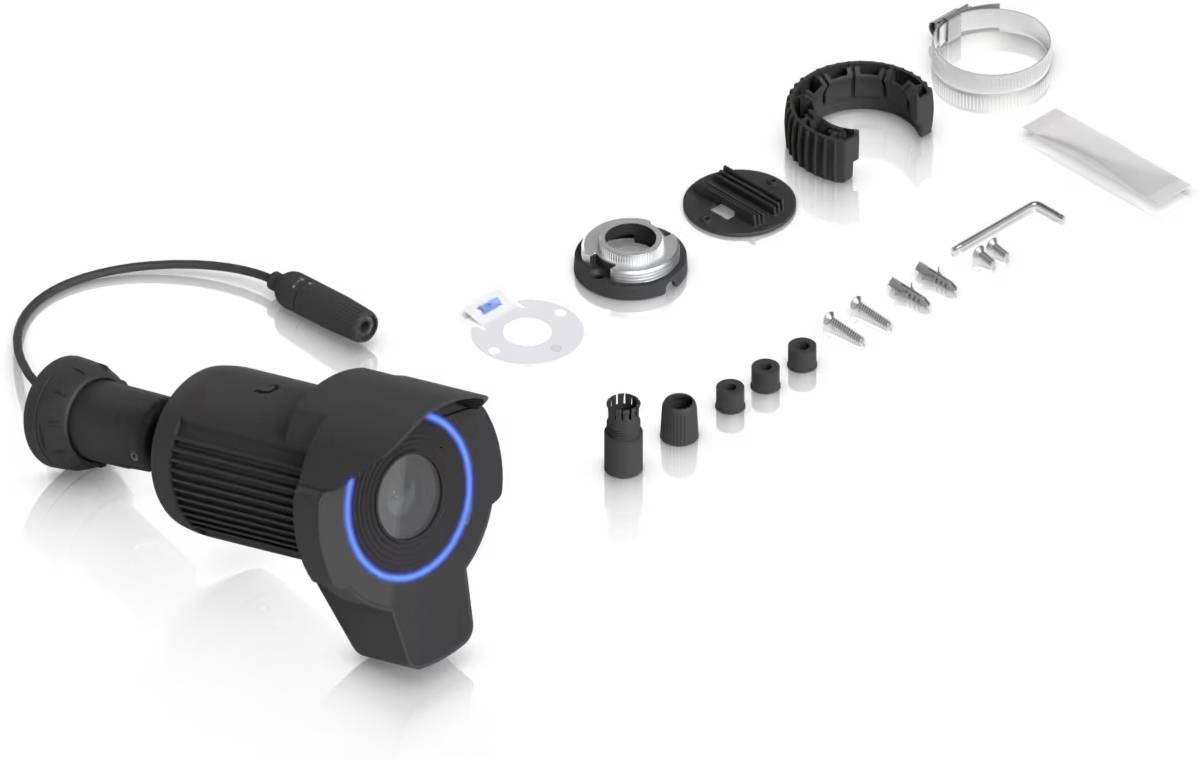

- Mounting kit
yes
- Built-in HDD
no
- Day/night mode
yes
- Number of cameras
1
- Power consumption (max)
25.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3784665 Ubiquiti Networks AI LPR UVC-AI-LPR-B Corded IP CCTV camera 3840 x 2160 p
Description
Special 4K camera with 3-fold optical Zoom and IR night vision with a long range, optimized for detecting number plates in vehicles with up to 90 km/h.
This text is machine translated.
This text is machine translated.
Scope of delivery
- IP-security camera
