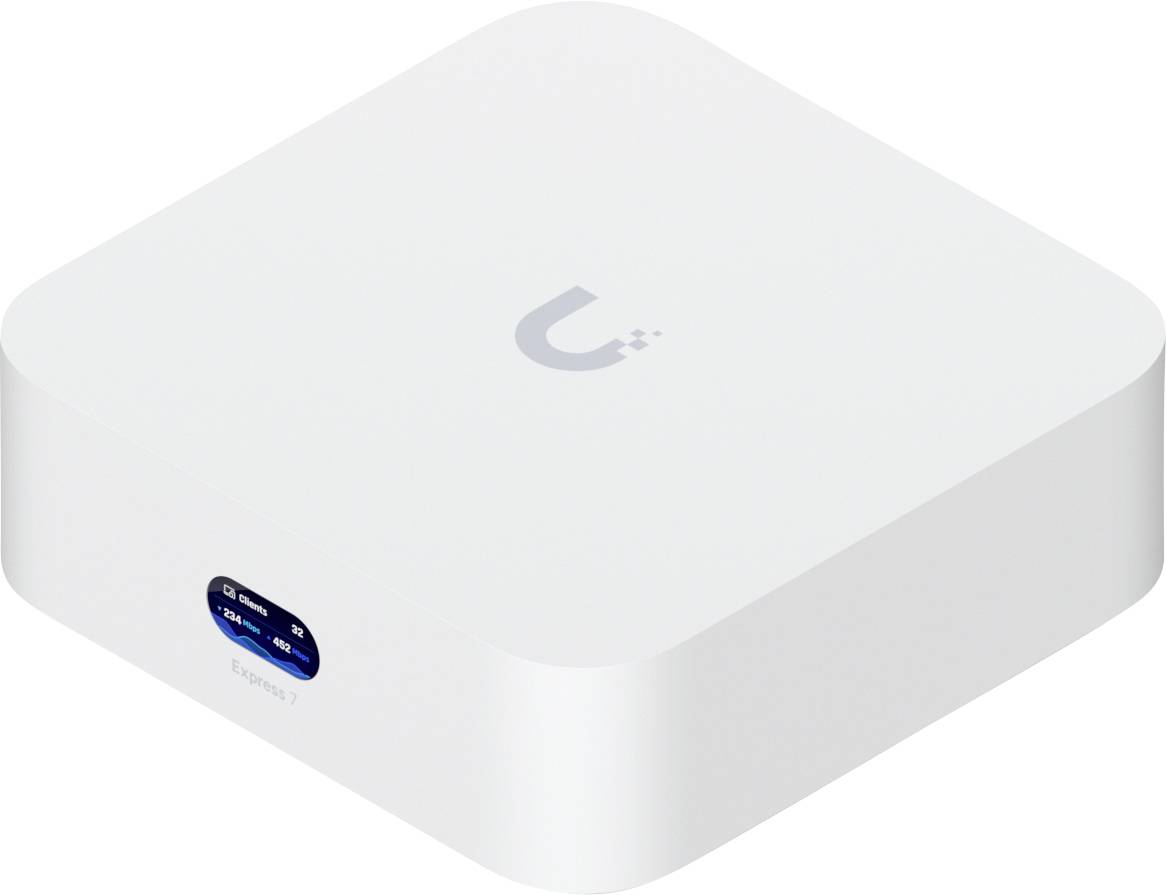

White electronic device with a gray 'U' symbol on top; labeled 'Expan 7' with a blue power indicator on the side.

White electronic device with a gray 'U' symbol on top; labeled 'Expan 7' with a blue power indicator on the side.

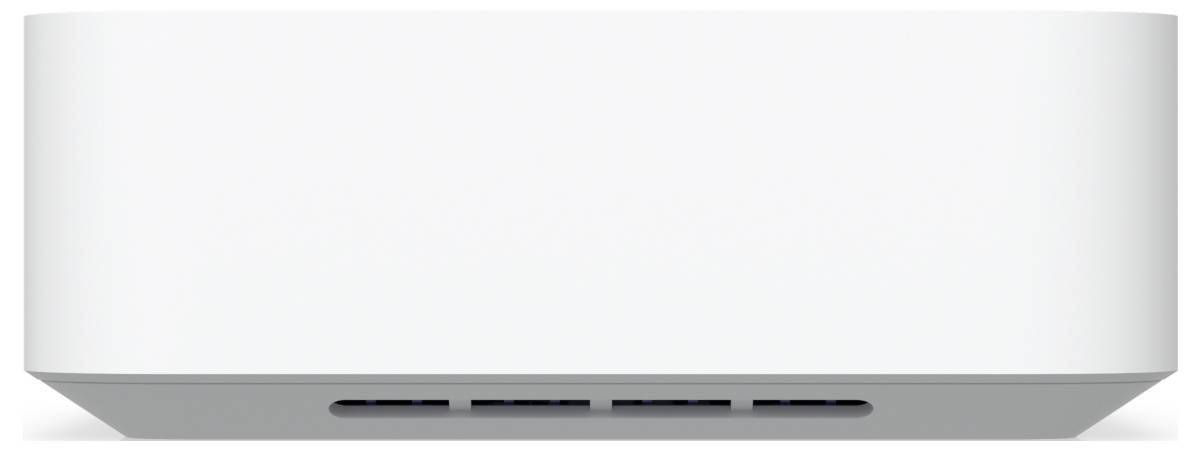

A rectangular white electronic device with four visible ports on the front, likely for connectivity purposes.

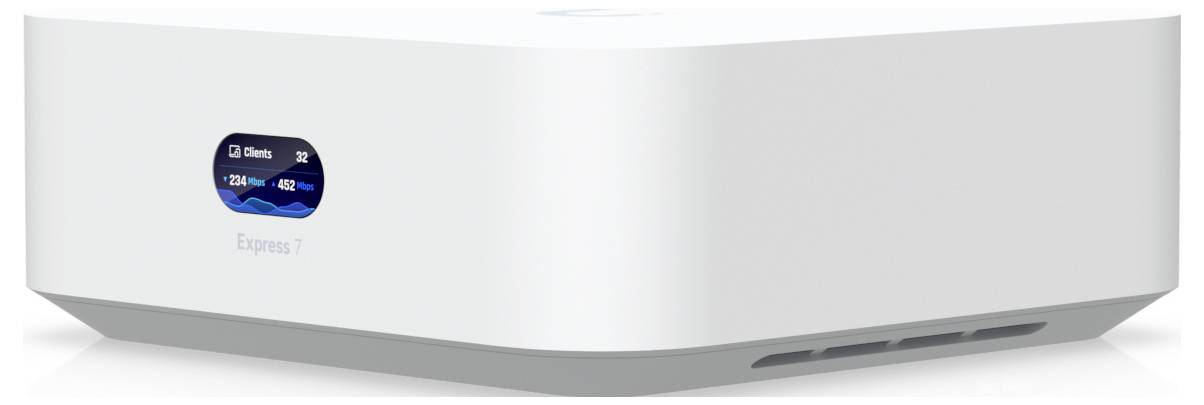

A white, curved electronic device with a small display screen showing network status, labeled 'Express 7'.

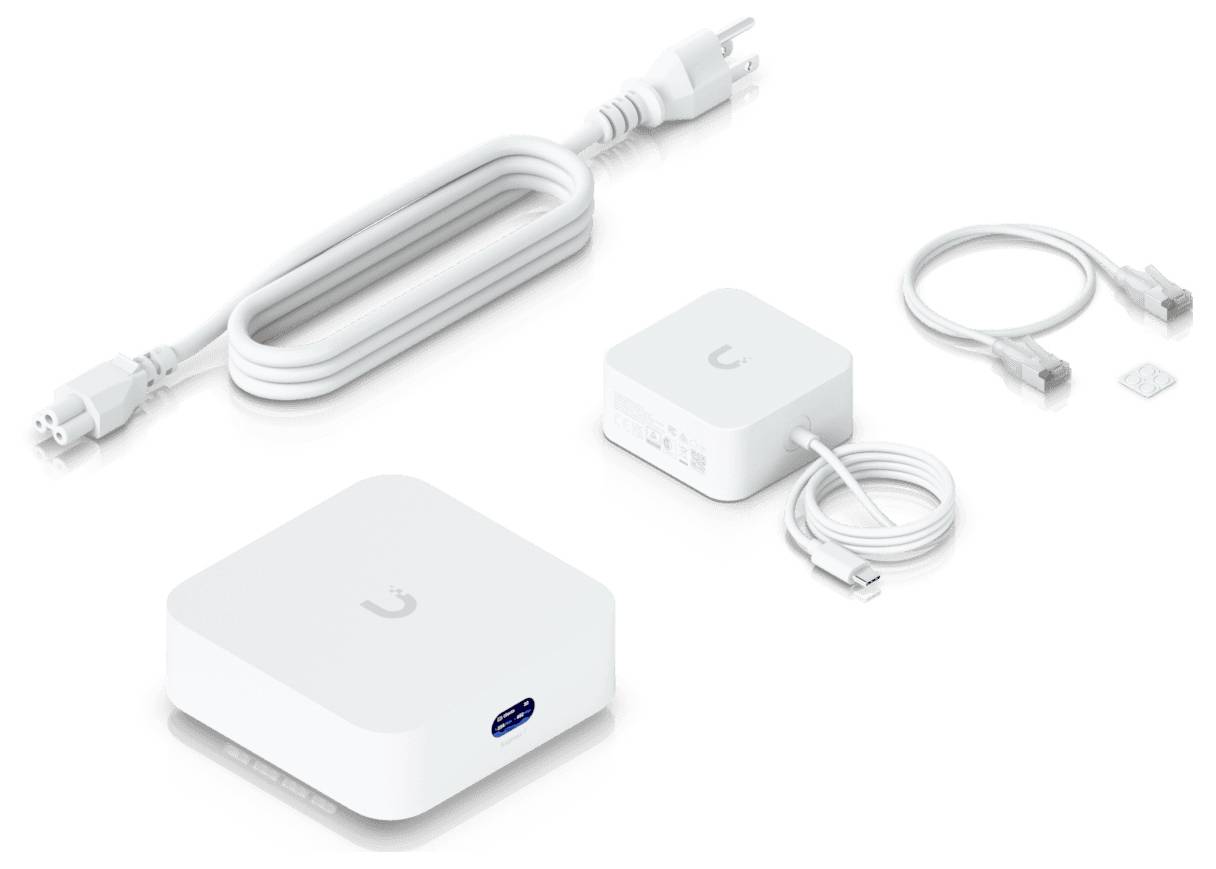

A small white network device with a USB port, a white power adapter, Ethernet cables, and a SIM card tray on a light surface.

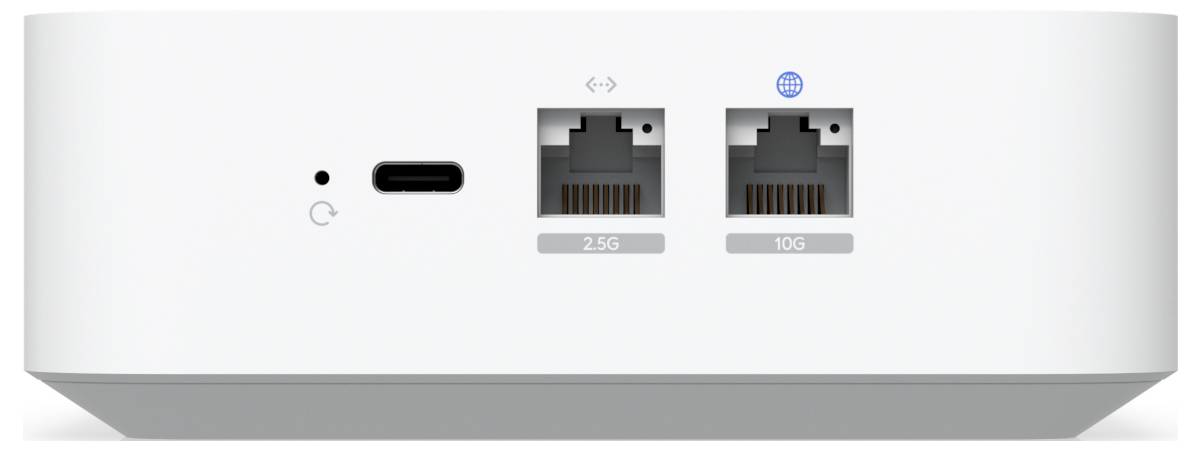

A white network device with a circular power button, USB-C port, 2.5G and 10G Ethernet ports on the front panel.

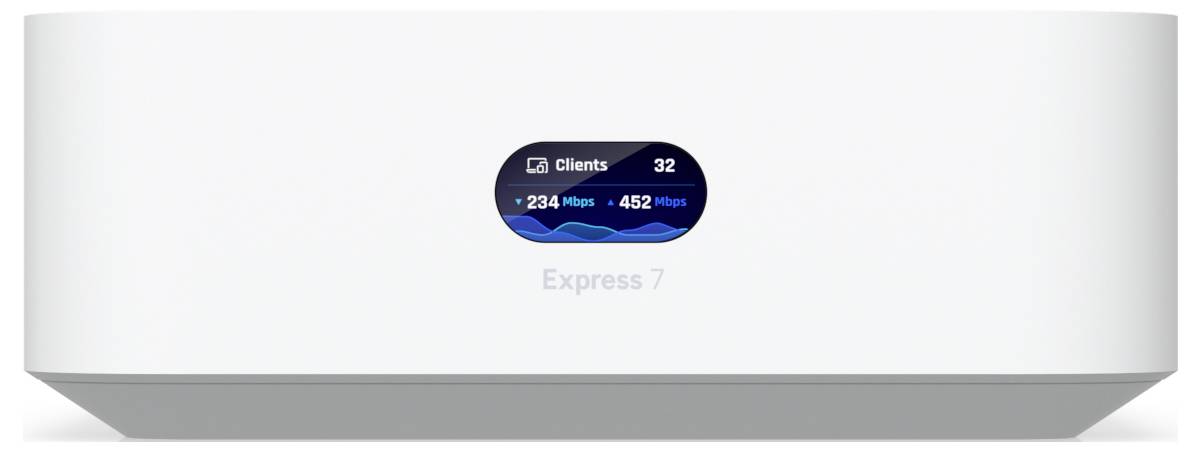

A white rectangular device, labeled 'Express 7,' with a digital display showing '32 Clients', '234 Mbps', and '452 Mbps' usage statistics.

1/7

Ubiquiti Networks

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 205.87 / piece)

€ 205.87

plus VAT.

Report legal concerns

Ubiquiti Unifi cloud gateway Express 7 • 1x 10 GbE • 1 x 2.5 GbE • WiFi 7 • UX7

Highlights & Details

Integrated 6-stream WiFi 7 with 6 GHz support
Optionally applicable as cable bound or meshed Layer 2 Unifi AP, in order to extend the cover
140 m² (1,500 ft²) coverage
Manages over 30 Unifi devices and over 300 clients
(1) 10 GbE RJ45 WAN port
(1) 2.5 GbE RJ45 LAN port to expand the network

Technical specifications

2.4, 5 and 6 GHz frequency band
Data transfer rate 5.7 Gbps

Product type: Cloud Gateway

LAN transfer rate: 2500 MBit/s

Interfaces: RJ45

10/100/1000 Mbps ports: 2 x

Wi-Fi standard: IEEE 802.11be

Wi-Fi transmission rate (max.): 5700 MBit/s

Bluetooth: Yes

Factory colour: White

Depth: 117 mm

Height: 42.5 mm

Width: 117 mm

Screen size diagonal (inches): 0.96 inch

CPU series: ARM Cortex

No. of antennas: 4 x

Gain: 6 dBi

Input voltage: 100 - 240 V

CPU speed: 1500 MHz

: 3000 MB

Safety: 802.1x RADIUS
IPSec
PSK
TLS
WPA
WPA-Enterprise
WPA-PSK
WPA2
WPA2

Processor/type: Cortex-A53

Weight: 422 g

Wi-Fi: Yes

UKCA: not relevant

Operating temperature (T-T): -10 - 40 °C

Wireless connection: yes

Quality of Service (QoS) support: yes

Multicast support: yes

Control display unit: yes

DHCP server: yes

Reset button: yes

Load balancing: yes

: yes

: 8 kV

: 4 kV

Number of processors installed: 1

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

Built-in processor: yes

Power consumption (max): 22 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3738666 Ubiquiti Networks UniFi Express 7 Cloud Gateway 2500 MBit/s

Description

Mesh-scalable, super compact 10G Cloud Gateway with built-in WiFi 7.
