Buy V-TAC VT-13150-S LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

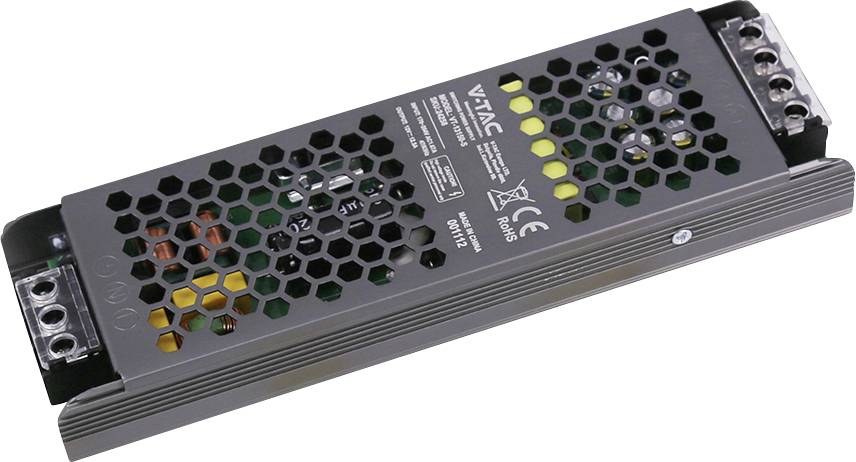

A black metal power supply unit with hexagonal vents and terminal screws on both ends, shown at an angle.

V-TAC Slim Series LED power supply box, model VT-13150-S/SKU24258, shown in blue and green packaging with the product image on the front.

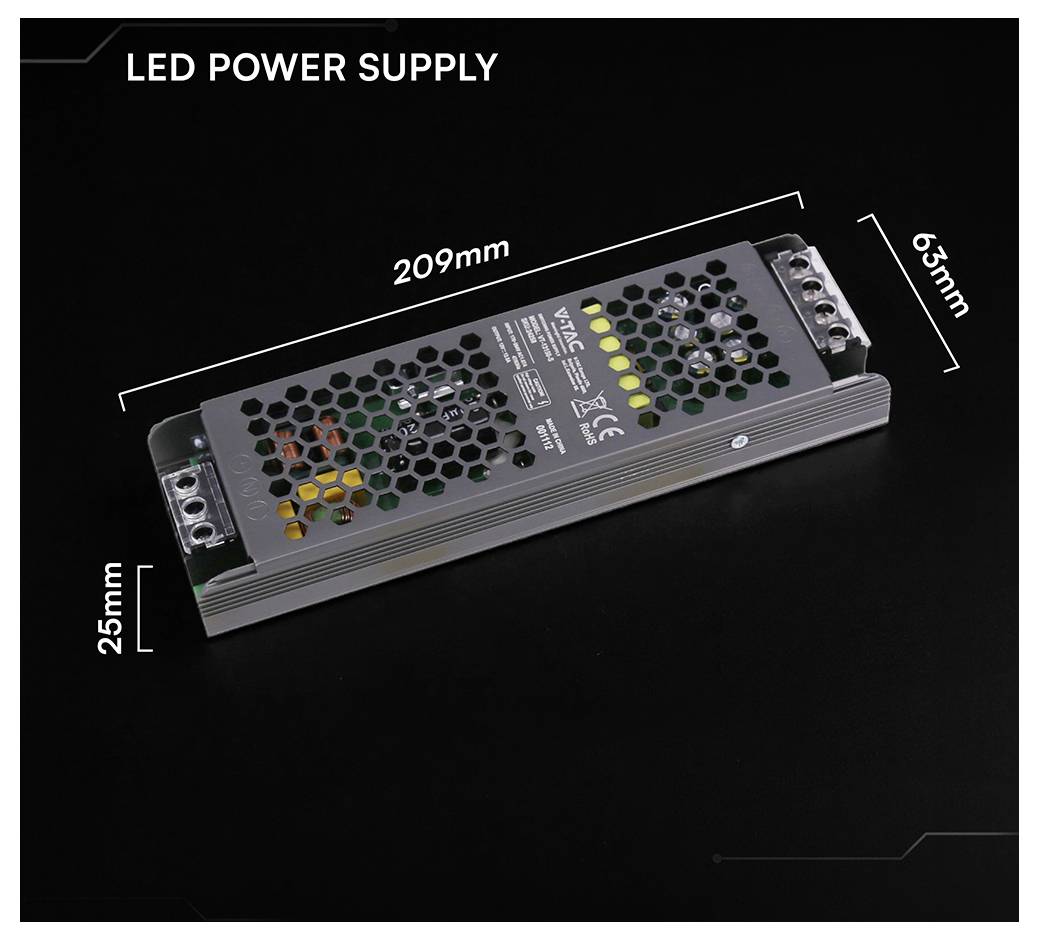

LED power supply shown in perspective, with dimensions labeled 209 mm long, 63 mm wide, and 25 mm high.

1/3

Fast track dispatch on Wed, 23 Sep

45 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 19.32 / piece)

€ 19.32

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

VT-13150-S 150W LED SLIM Power SUPPLY 12V 12.5A IP20

Constant voltage
12 V DC
12.5 A

Technical specifications

Material: Metal
Lifetime 20000 h
On/off switching cycles >15000

Product type: LED transformer

Type: Constant voltage

Dim: (L x W x H) 209 x 63 x 25 mm

Factory colour: Grey

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V DC

Max. output current: 12.5 A

Output current (max.) - rounded: 12.5 A

Operating voltage: 240 V

Protection class: IP20

LED driver features: not dimmable

: IP20

Connection: Punchdown block

Max. power: 150 W

No. of outputs: 1 x

Input voltage (max.): 264 V AC

Min. input voltage: 176 V AC

Weight: 0.32 kg

Power range: 150 W (max)

Width: 63 mm

Height: 25 mm

Length: 209 mm

Max. temperature: 55 °C

Min. temperature: -35 °C

: No

Material: Metal

Input voltage: 220 V

Output voltage: 12 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3781503 V-TAC VT-13150-S LED transformer Constant voltage 150 W 12.5 A 12 V DC not dimmable 1 pc(s)

Description

Power supply for LED strips, LED displays, etc.
IP67 entry protection
Overvoltage protection 115%-135%, switched off
Short-circuit protection, stable output voltage
Built-in EMI filter
Higher efficiency, low temperature. 100% full load burn-in test...

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
