Visaton K 40 SQ - 8 Ohm 1.6 inch 4 cm Mini speaker 0.5 W 8 Ω Plastic diaphragm

A black loudspeaker in a square shape with four mounting holes, shown from the front.
Speaker with the inscription 'VISATON K 40 SQ 8 Ω Art. No. 2846' in a black enclosure, suitable for acoustic projects.
Technical drawing of a loudspeaker from the K 40 SQ series with dimensions: width 40 mm, height 40 mm, mounting depth 10 mm.

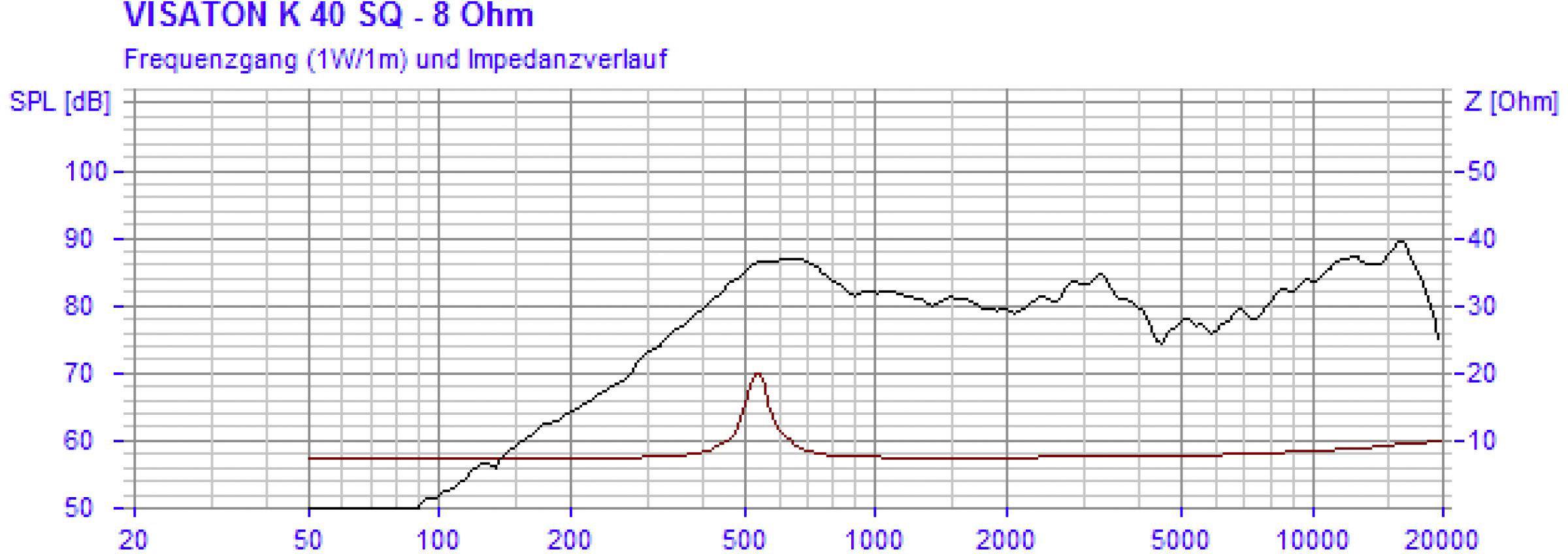

'Diagram shows frequency response and impedance curve of the VISATON K 40 SQ - 8 Ohm. Y-axes: SPL in dB and Z in Ohm. X-axis: Frequency in Hz.'
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
50 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Visaton K 40 SQ small speaker

  • Suitable as output medium for devices and systems with little space

Technical specifications

Product type

Mini speaker

Features

Plastic diaphragm

Speaker size (cm)

4 cm

Speaker size (inch)

1.6 inch

RMS capacity

0.5 W

Max. load

1 W

Max. frequency

20000 Hz

Min. frequency

300 Hz

Impedance

8 Ω

Recess diameter

35 mm

Recess depth

7.7 mm

Weight

14 g

Frequency range

300 Hz - 20000 Hz

Documents & Downloads

Datasheet

Datasheet 1173584 Visaton K 40 SQ - 8 Ohm 1.6 inch 4 cm Mini speaker 0.5 W 8 Ω Plastic diaphragm

User & Safety Instructions

User & Safety Instructions 1173584 Visaton K 40 SQ - 8 Ohm 1.6 inch 4 cm Mini speaker 0.5 W 8 Ω Plastic diaphragm

Description

4 cm (1.6") small speaker with plastic membrane and metal basket, extremely low overall height.
