Image similar

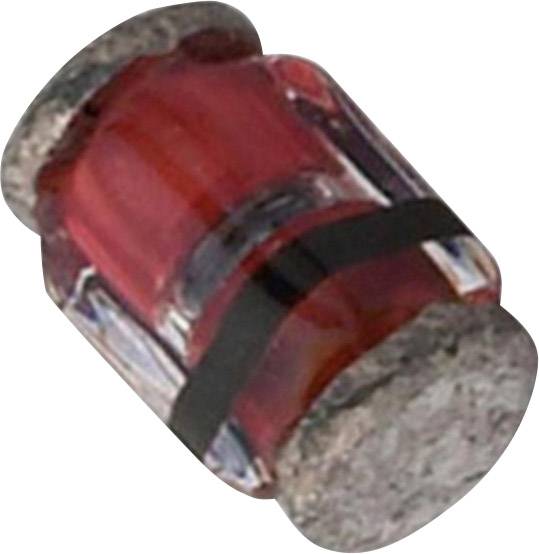

Vishay Schottky rectifier MCL103A-TR MicroMELF 40 V Single
Product type
Schottky rectifier
Enclosure
MicroMELF
Reverse voltage U(R)
40 V
Forward current I(F)
200 mA
Configuration (diode)
Single
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 0.04 / piece)
€ 0.04
incl. VAT
14-day return policy included
Technical specifications
- Type
MCL103A-TR
- Product type
Schottky rectifier
- Enclosure
MicroMELF
- Manufacturer
Vishay
- Manuf. code
VIS
- Reverse voltage U(R)
40 V
- Forward current I(F)
200 mA
- Reverse leakage current I(r)
5 µA
- Configuration (diode)
Single
- Forward voltage U(F)
600 mV
- Forward voltage reference
200 mA
- Reverse recovery time T(rr)
10 ns
- Reverse leakage current I(r) reference
10 V
- Diode capacitance C(D)
50 pF
- Operating temperature (max.)
+125 °C
- Mounting type
Surface-mount
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 577361 Vishay Schottky rectifier MCL103A-TR MicroMELF 40 V Single
User & Safety Instructions
User & Safety Instructions 577361 Vishay Schottky rectifier MCL103A-TR MicroMELF 40 V Single
