Buy Vogt Verbindungstechnik 3785F05.68 Blade receptacle PCB-SMD Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° No

Silver metal clip with two parallel clips mounted on a metallic base, commonly used in electrical connections.

Image similar

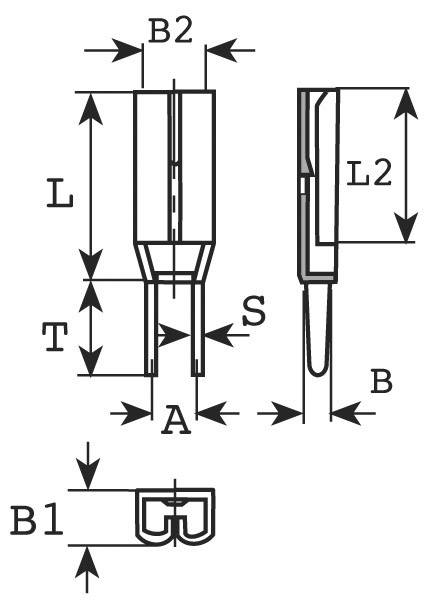

Technical drawing of a U-shaped connector with dimensions: B, B1, B2, L, L2, A, S, T. Side views show proportions.

1/2

Image similar

Product type

Blade receptacle

Connector width

2.8 mm

Insulation type

Not insulated

Content

1 pc(s)

Factory colour

Metal

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7293 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 20

Total (€ 0.10 / piece)

€ 0.18

-44 %

€ 2.00

plus VAT.

Report legal concerns

Highlights & Details

Vogt Verbindungstechnik 3785F05.68 Blade receptacle PCB-SMD Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° Not insulated Metal 1 pc(s)

Metal
2.8 mm x 0.5 mm
-

Our service for you

Technical specifications

Product type: Blade receptacle

Connector width: 2.8 mm

Factory colour: Metal

Connector thickness: 0.5 mm

Insulation type: Not insulated

Connection angle: 180°

Contact material: Brass tin plated

Content: 1 pc(s)

Manufacturer part #: 3785F05.68

Size: 2.8 x 0.5 mm

Features: PCB-SMD

Type: 3785F05.68

Material (details): Brass, tin-plated

Type: 2.8 x 0.4 mm

Cross section: -

Connection: -

Documents & Downloads

Datasheet

Datasheet 730037 Vogt Verbindungstechnik 3785F05.68 Blade receptacle PCB-SMD Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° No

User & Safety Instructions

User & Safety Instructions 730037 Vogt Verbindungstechnik 3785F05.68 Blade receptacle PCB-SMD Connector width: 2.8 mm Connector thickness: 0.5 mm 180 ° No

Description

Tin-plated brass.
