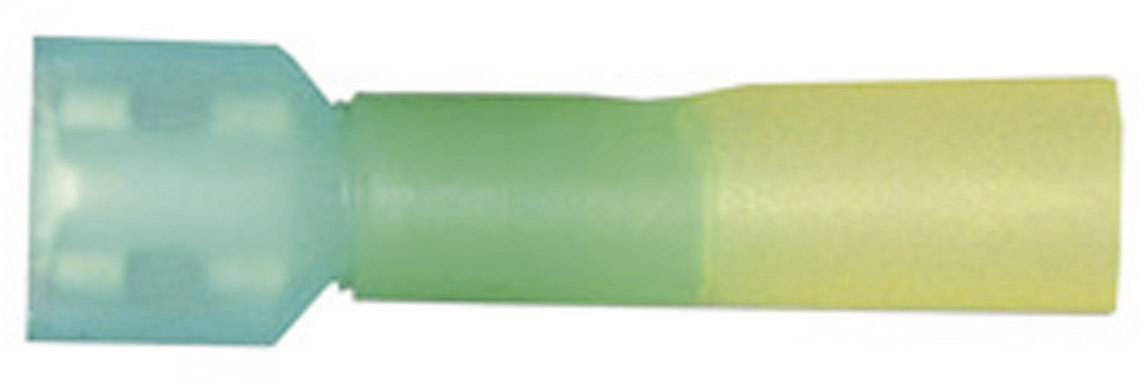

An isolated, colour-coded female flat connector, comprising a blue front section and a yellow rear section.

An isolated, colour-coded female flat connector, comprising a blue front section and a yellow rear section.

Product type

Blade receptacle

Connector width

6.3 mm

Insulation type

Insulated

Content

1 pc(s)

max. cross section

2.50 mm²

Datasheet (PDF)

Vogt Verbindungstechnik

Fast track dispatch on Thu 15 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 5

Total (€ 0.50 / piece)

€ 0.82

-39 %

€ 2.50

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Female spade connector with fully insulated heat-shrink sleeve

100% watertight

Our service for you

Technical specifications

Product type: Blade receptacle

Connector width: 6.3 mm

Factory colour: Blue

Connector thickness: 0.8 mm

Support sleeve: No

Insulation type: Insulated

Contact material: Brass tin plated

Content: 1 pc(s)

max. cross section: 2.50 mm²

Min. cross section: 1.50 mm²

AWG max.: 16

AWG (min.): 14

Manufacturer part #: 3966sh

Insulation material: PE

Cross-section range: 1.50 - 2.50 mm²

Size: 6.3 x 0.8 mm

Temperature range: -10 - +105 °C

Type: 3966sh

Insulation: Plug-side HDPE for shrinking · (Cable side) rigid PA

Material (details): Tin-plated brass

Type: 6.3 x 0.8 mm

Shrink temperature: +150 °C

Cross section: 1.5 - 2.5 mm²

Documents & Downloads

Datasheet

Datasheet 735994 Vogt Verbindungstechnik 3966sh Blade receptacle Connector width: 6.3 mm Connector thickness: 0.8 mm Insulated Blue 1 pc(

Description

Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.

Description

Internally coated with self-adhesive. The stripped wires are simply inserted, crimped with a commercially available crimping tool and heated with a hot air blower until the adhesive runs out sideways. Resistant to petrol, oil, salt water, battery acid and cleaning agents.
