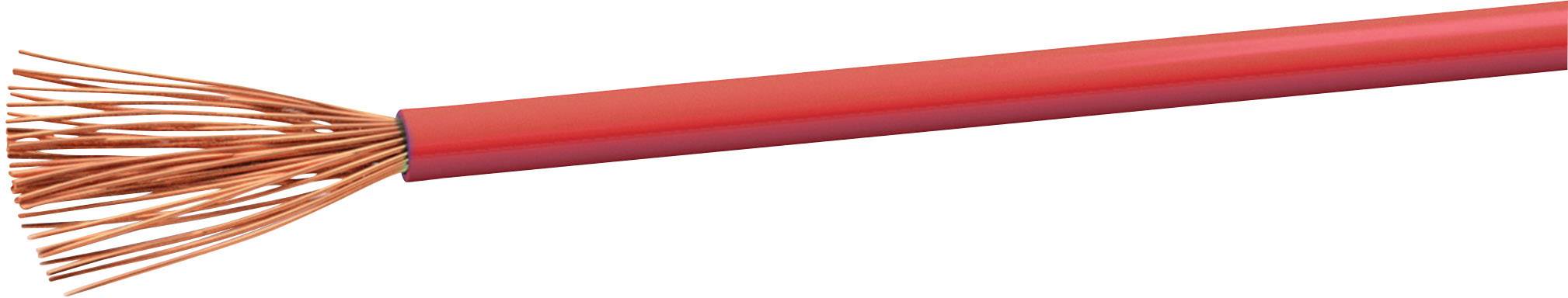

VOKA Kabelwerk H05VK075RT Flexible cable H05V-K 1 x 0.75 mm² Red 100 m
EAN:
Part number:
Item no:
Product type
Flexible cable
No. of leads
1 x
Cross section (each core)
0.75 mm²
Cable type
H05V-K
Outside Ø
2.20 mm
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 0.28
€ 27.72
3
1 M = € 0.27
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 0.28)
€ 27.72
plus VAT.
Only 6 Set(s) available
Highlights & Details
Hose line fine
- 100 metre
- This text is machine translated.
Technical specifications
- Product type
Flexible cable
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
0.75 mm²
- Insulation material
PVC
- Cable type
H05V-K
- Outside Ø
2.20 mm
- Nominal voltage
500 V
- Packaged
Yes
- Halogen-free
No
- Manufacturer part #
H05VK075RT
- Factory colour
Red
- Insulation
PVC
- Material (details)
Copper wire, blank
- Sold per metre
No
- Nominal voltage U0
300 V
- Certification marks
2006/95/EC (Low Voltage Directive) CE
- Test voltage
2000 V
- Cross section
1 x 0.75 mm²
- Max. temperature range (flexible installation)
70 °C
- Min. temperature range (flexible installation)
5 °C
- Max. temperature range (fixed installation)
70 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
H05V-K 0,75qmm rot
- Standards
2006/95/EC (Low Voltage Directive) CE
Documents & Downloads
Datasheet
Datasheet 1343463 VOKA Kabelwerk H05VK075RT Flexible cable H05V-K 1 x 0.75 mm² Red 100 m
User & Safety Instructions
User & Safety Instructions 1343463 VOKA Kabelwerk H05VK075RT Flexible cable H05V-K 1 x 0.75 mm² Red 100 m
