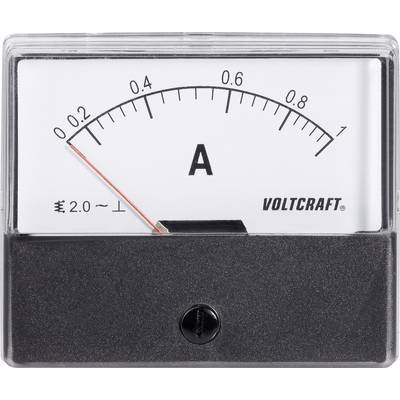

VOLTCRAFT AM-70X60/1A AM-70X60/1A Panel-mounted measuring device AT THE-70 X 60/1 A 1 A Moving iron
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 20.16
-29 %
€ 14.28
plus VAT.
Highlights & Details
Panel-mounted measuring device AT THE-70 X 60/1 A
- 70 x 60 mm
- 0 - 1 A
- AC measurement
Technical specifications
- Product type
Analogue rack-mount meter
- Reading type
AC current
- Reading range (min.)
0.2 A
- Reading range (max.)
1 A
- Dim
(W x H) 70 mm x 60 mm
- Instrument type
Moving iron
- Temperature range
-25 - +55 °C
- Type
AM-70X60/1A
- Recess diameter
52 mm
- Recess depth
25 mm
- Electrical connection
Screw terminals
- Weight
54 g
- Factory colour
White
Grey
- Content
1 pc(s)
- Width
70 mm
- Height
60 mm
Manufacturer's standards (no certificate)
- Accuracy class
2.0
- Reading range
1 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 103545 VOLTCRAFT AM-70X60/1A AM-70X60/1A Panel-mounted measuring device AT THE-70 X 60/1 A 1 A Moving iron
User & Safety Instructions 103545 VOLTCRAFT AM-70X60/1A AM-70X60/1A Panel-mounted measuring device AT THE-70 X 60/1 A 1 A Moving iron
Warranty Terms
Warranty Terms 103545 VOLTCRAFT AM-70X60/1A AM-70X60/1A Panel-mounted measuring device AT THE-70 X 60/1 A 1 A Moving iron
Description
This text is machine translated.
Analogue panel-mount moving iron-measuring device for display of currents. The pointer instrument enables the classic analogue display, the fluctuating values as linear pointer can be seen.
Analogue panel-mount moving iron-measuring device for display of currents. The pointer instrument enables the classic analogue display, the fluctuating values as linear pointer can be seen.
Features
- Moving iron instrument
- Class 2.0
- Flange dia. 52 mm
Scope of delivery
- Fixing material
- Data sheet.
