Name: VOLTCRAFT AM-72X72/50HZ AM-72X72/50HZ Analogue panel-mounted measuring device AM-72X 72/50 HZ 45 - 55 Hz Moving coil
Brand: VOLTCRAFT
SKU: 103525
Availability: InStock

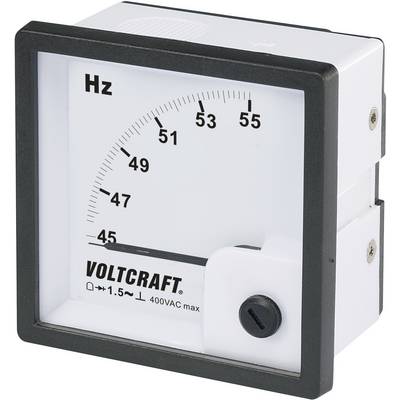

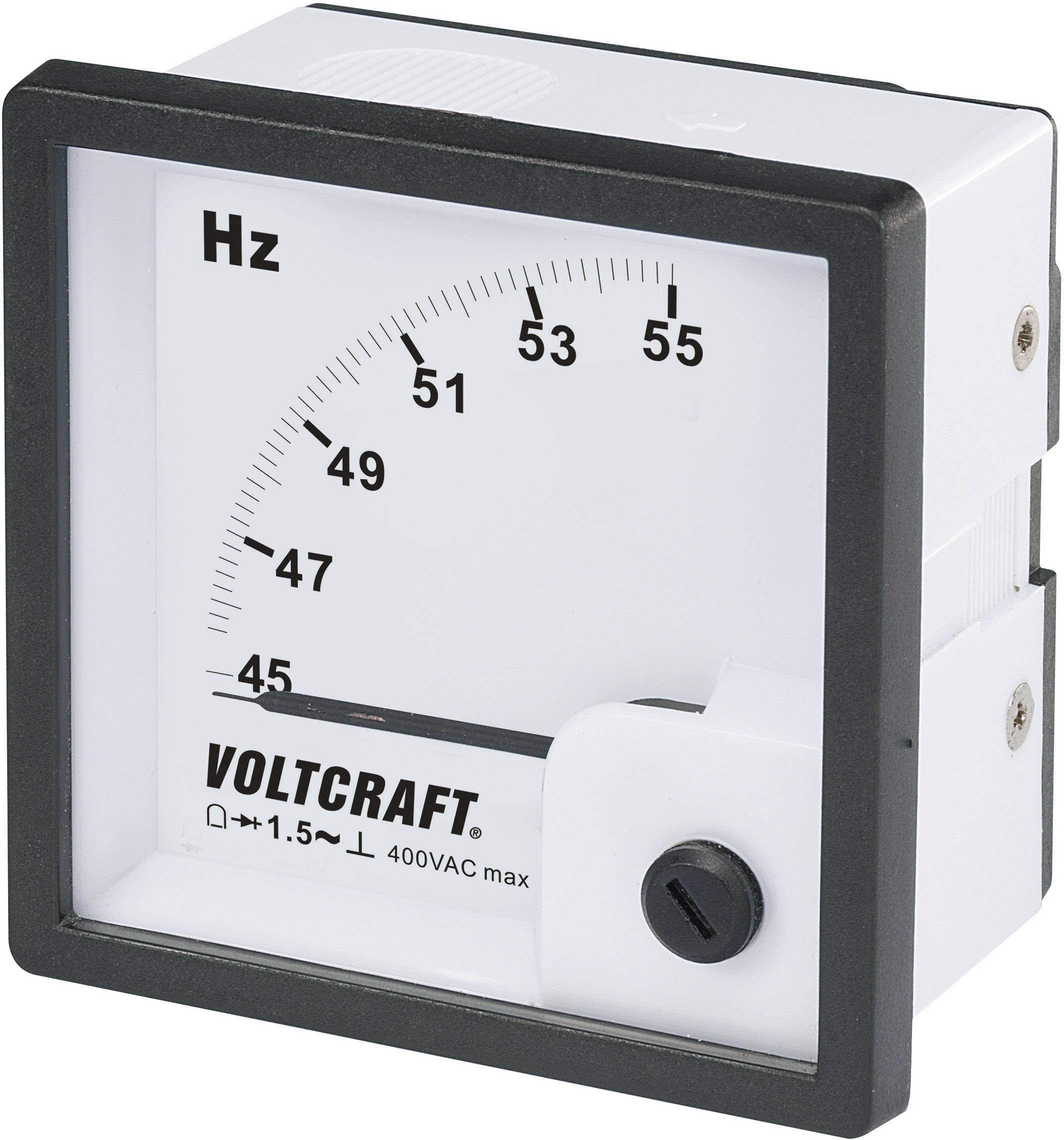

An analogue measuring instrument shows a frequency display from 45 to 55 Hertz. The current pointer position is at approximately 51 Hz.

1/2

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

118 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 43.99 / piece)

€ 43.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Analogue panel-mounted measuring device AM-72X 72/50 HZ

72 mmx 72 mm
380 - 400 V AC

Our service for you

Technical specifications

Product type: Analogue rack-mount meter

Reading type: AC current

Reading range (min.): 45 Hz

Reading range (max.): 55 Hz

Dim: (L x W x H) 72 x 72 x 72 mm

Recess width: 68 mm

Instrument type: Moving coil

Recess height: 68 mm

Temperature range: -25 - +55 °C

Type: AM-72X72/50HZ

Recess depth: 49.5 mm

Electrical connection: Screw terminals

Weight: 103 g

Factory colour: Black
White

Content: 1 pc(s)

Reading category: CAT III

Width: 72 mm

Height: 72 mm

Length: 72 mm

Frame width: 72 mm

: Manufacturer's standards (no certificate)

Connections: Screw terminals

Accuracy class: 1.5

Type: DS

Reading range: 45 - 55 Hz

Input voltage: 380 -400 V AC

Reading category: CAT III

Compliance & Certifications

Certified by EU Garan
