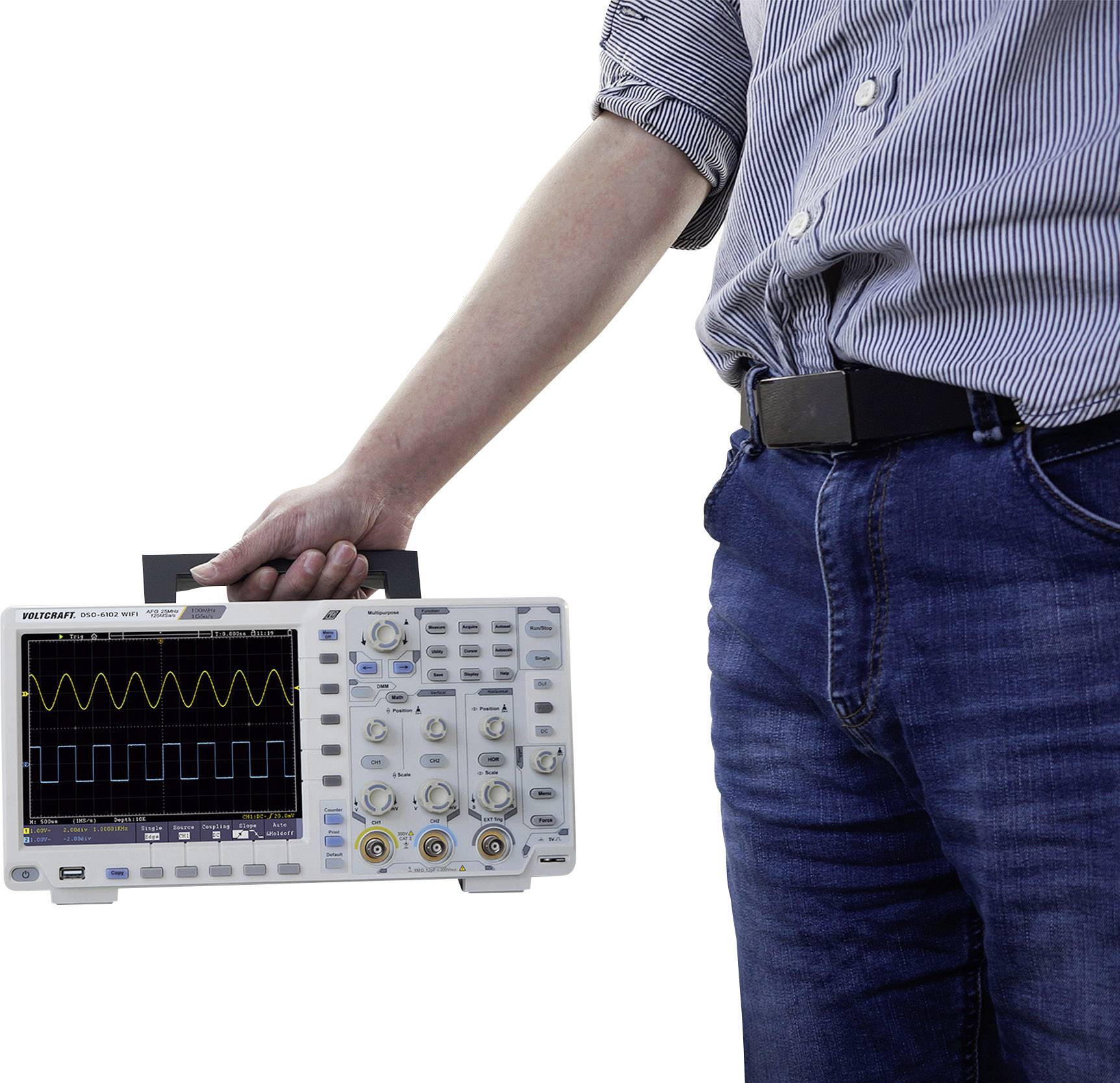

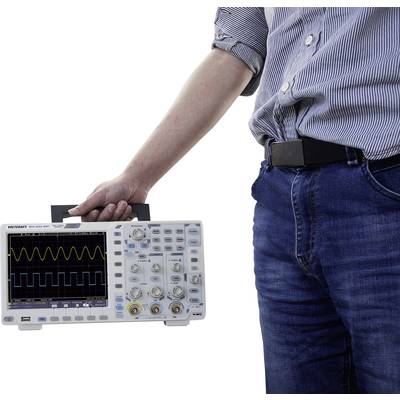

A person is holding an oscilloscope that displays a sinusoidal wave pattern on the screen.

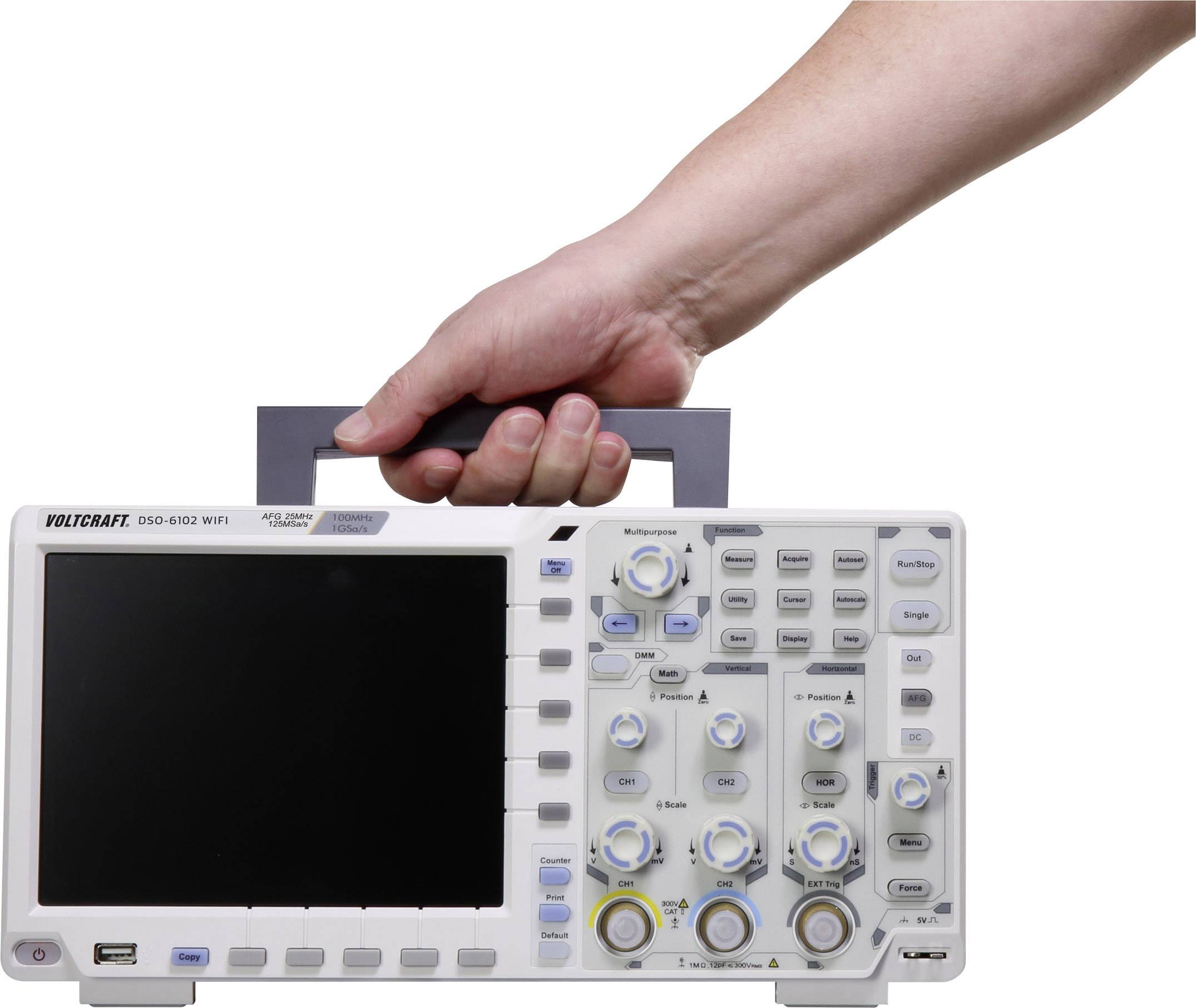

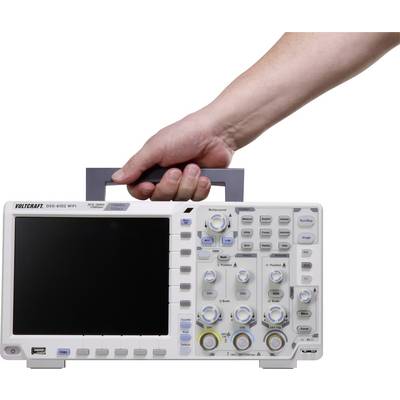

A hand is holding a portable oscilloscope, model Voltcraft DSO-6102 WIFI, with a display and several rotary controls for operation.

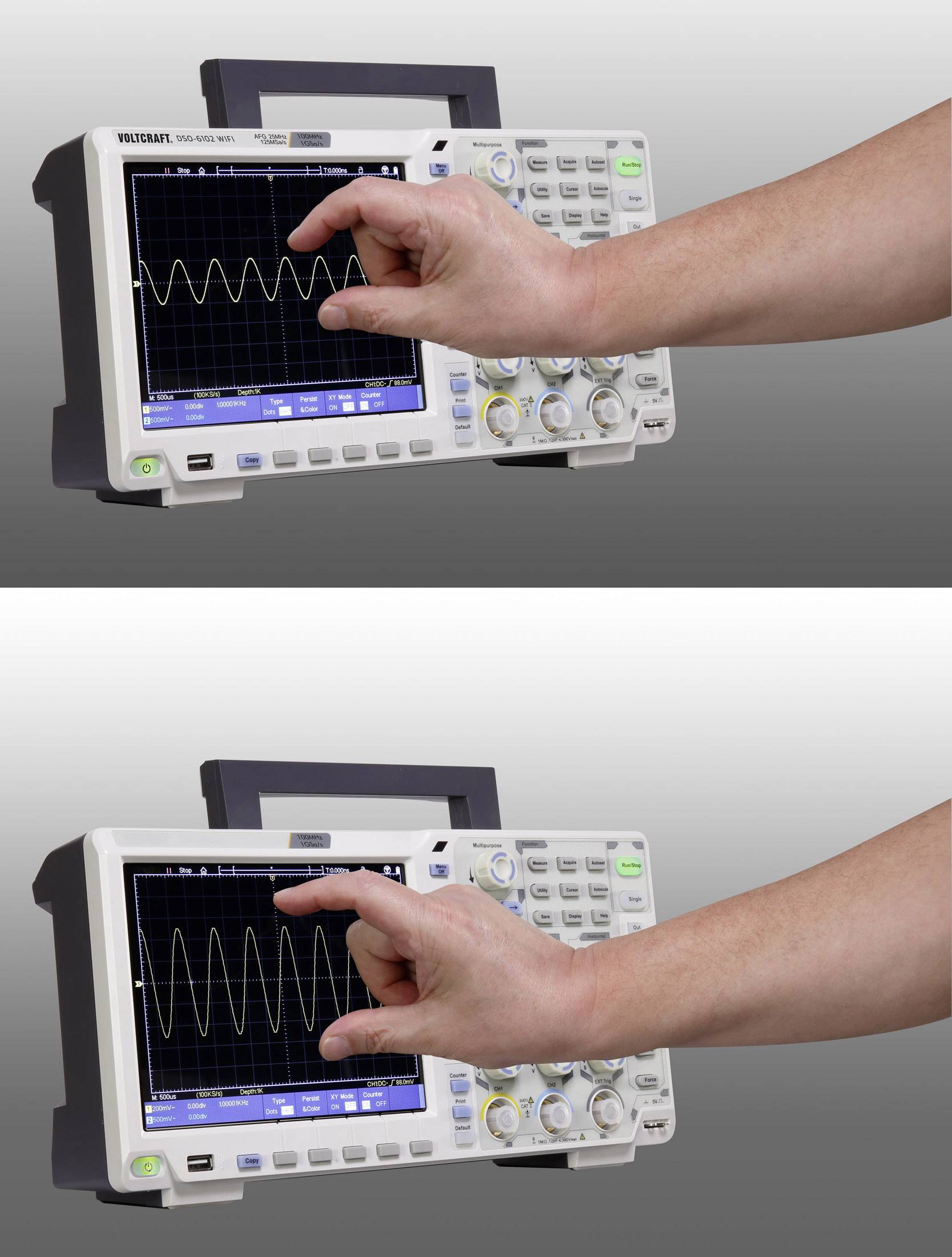

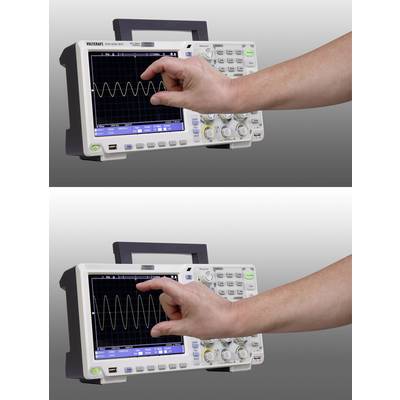

A hand is operating an oscilloscope, displaying a waveform to measure or analyse its amplitude.

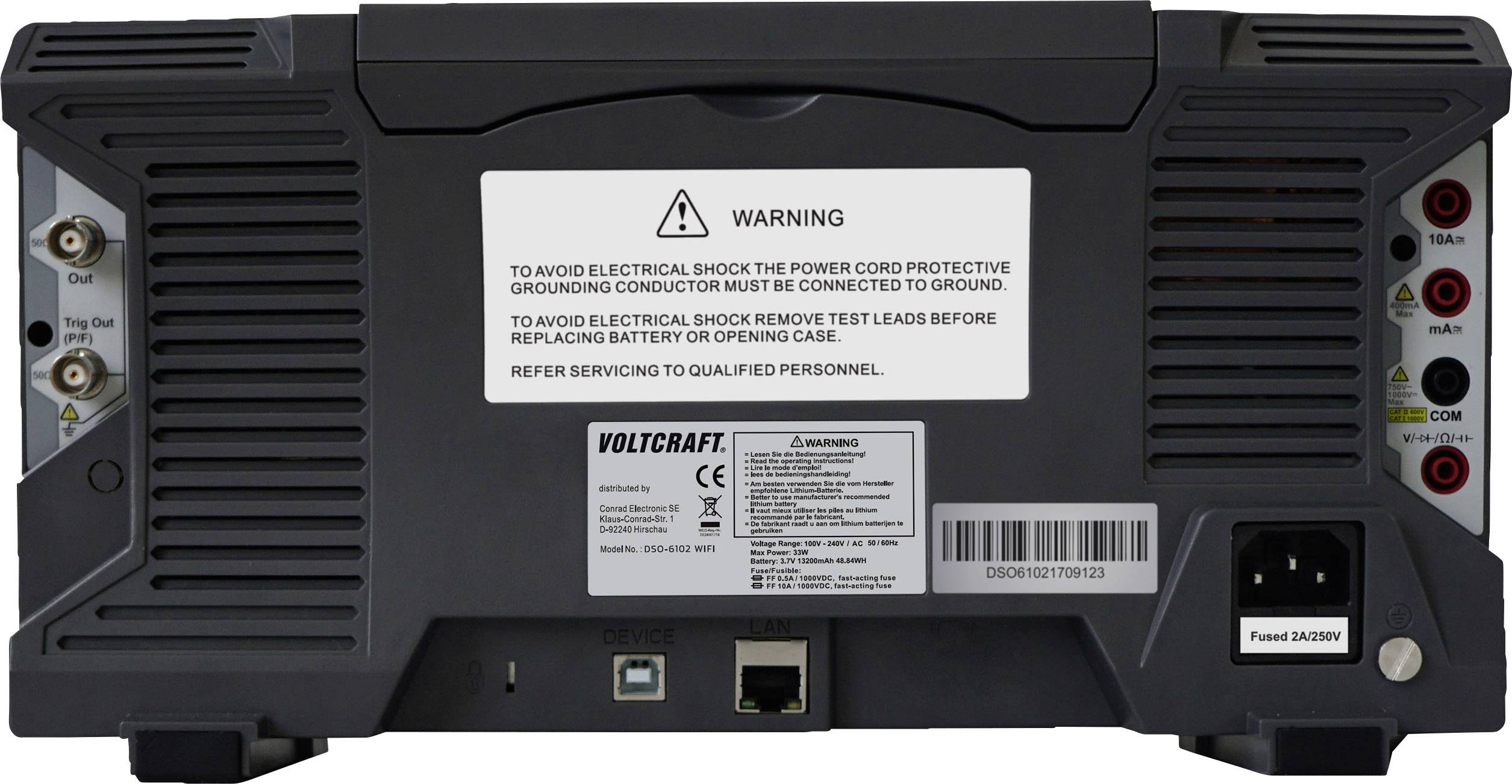

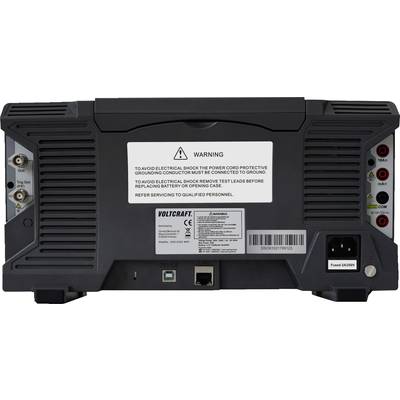

Rear view of an electronic device with multiple ports. Safety warning about electrical safety and servicing.

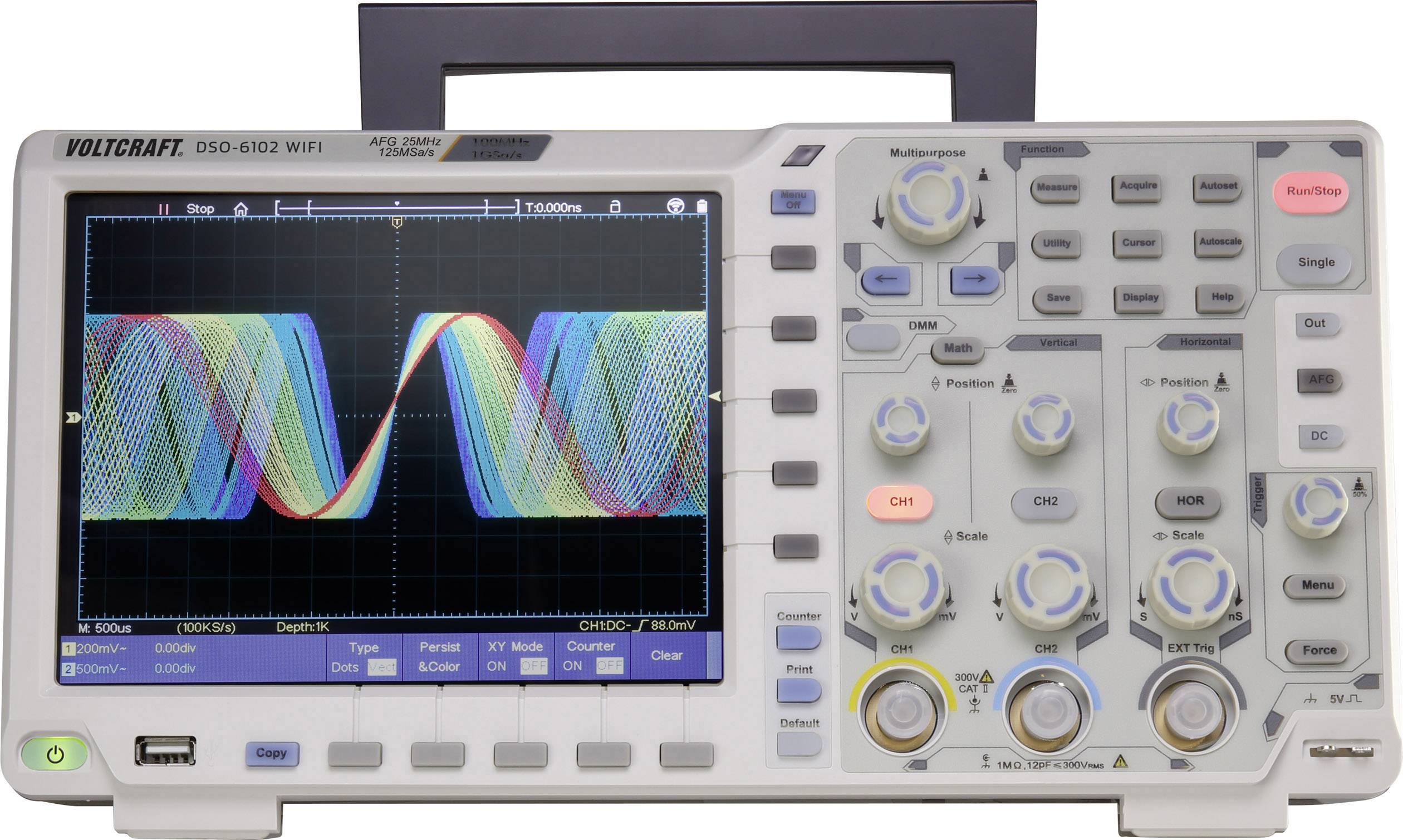

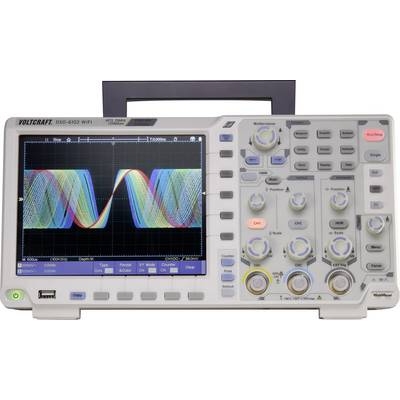

An oscilloscope displays multiple overlapping, coloured waveforms on the screen. It is an electronic measuring device with rotary knobs and buttons.

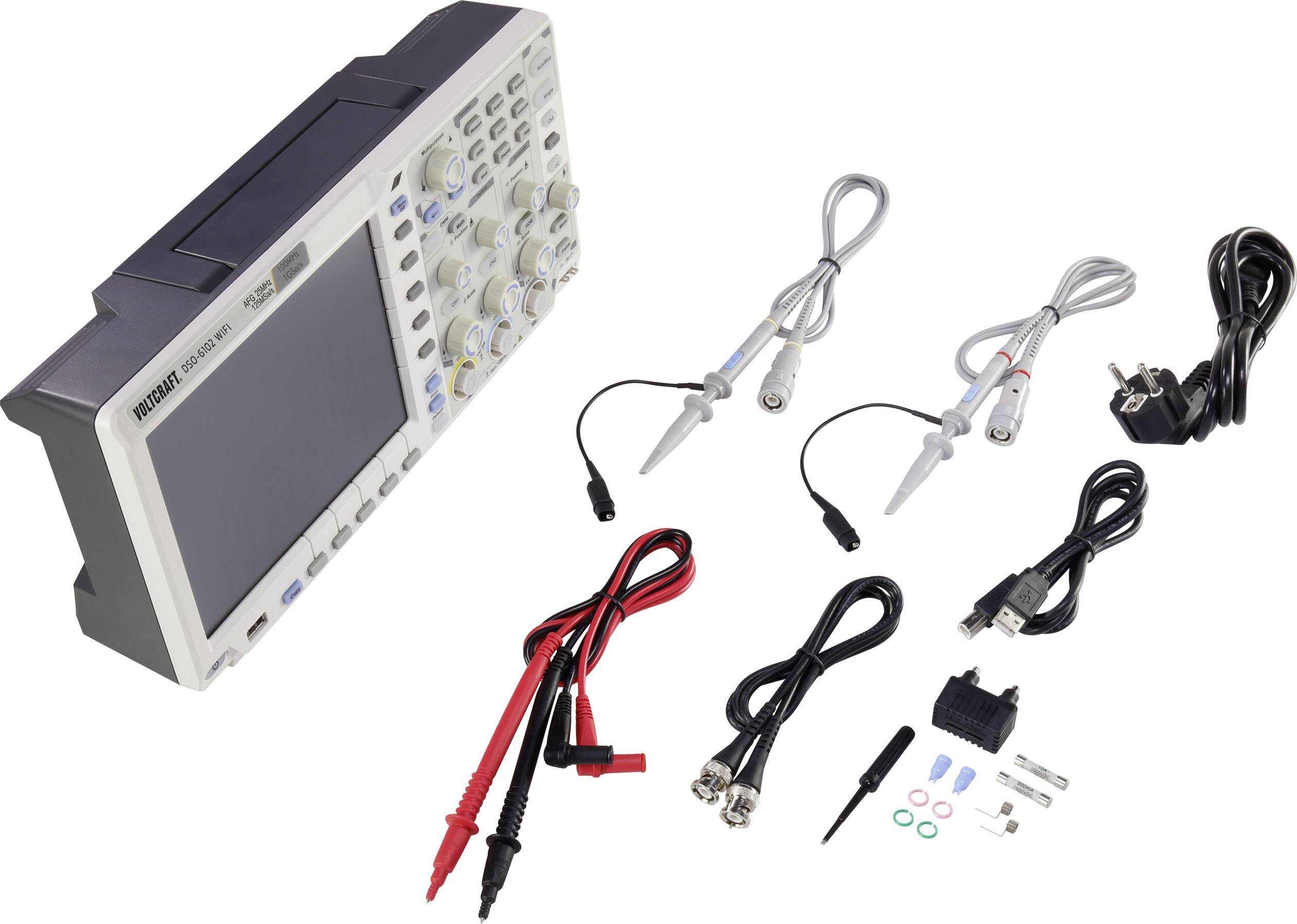

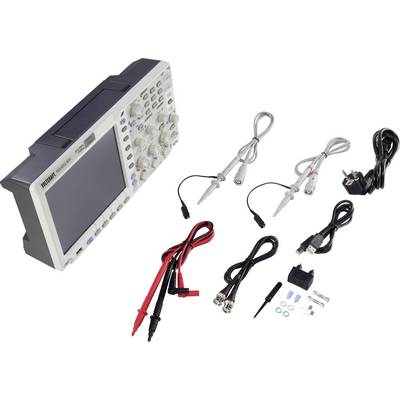

A digital oscilloscope with two probes, power cable, USB cable and accessory parts. Devices for precise electrical measurements.

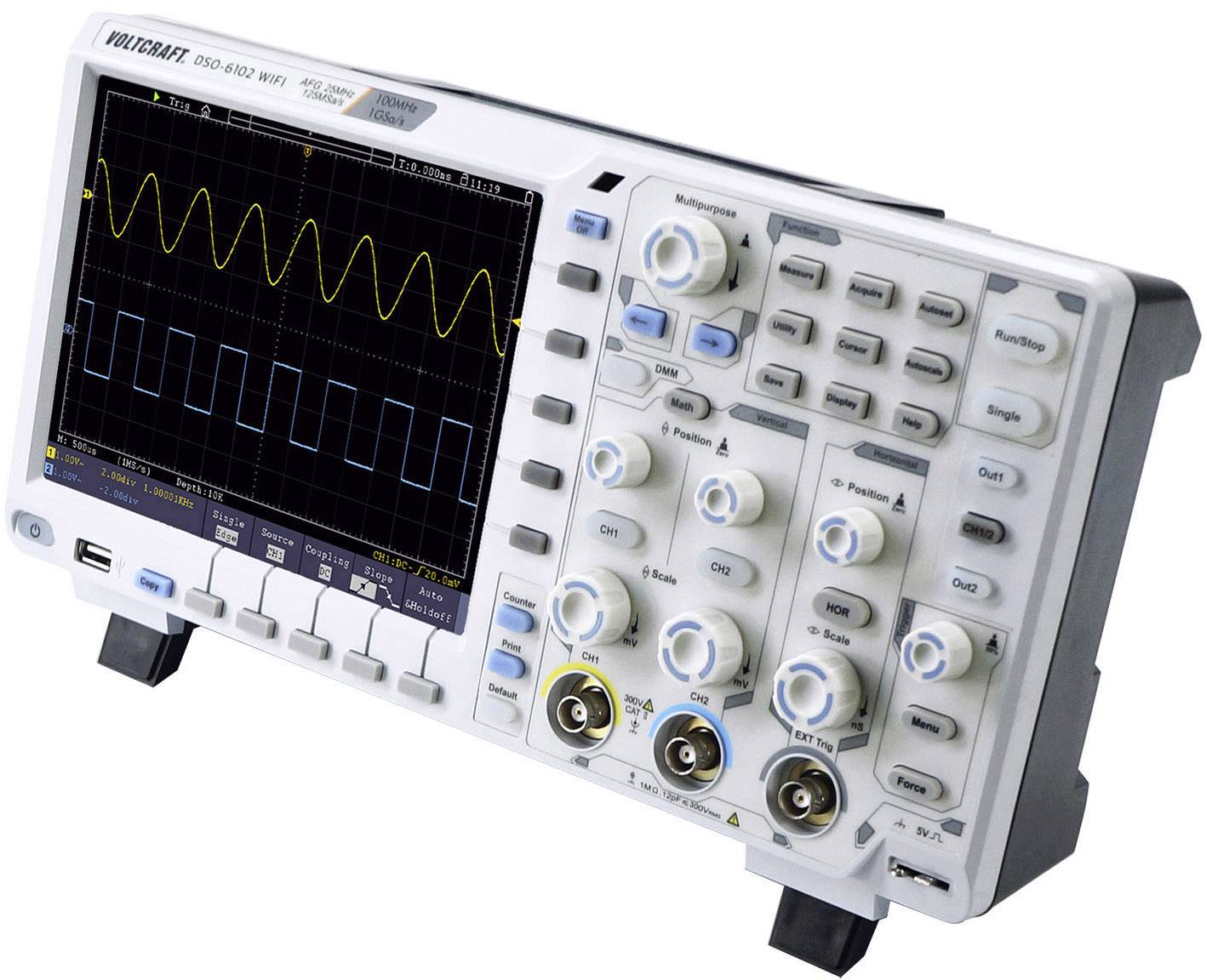

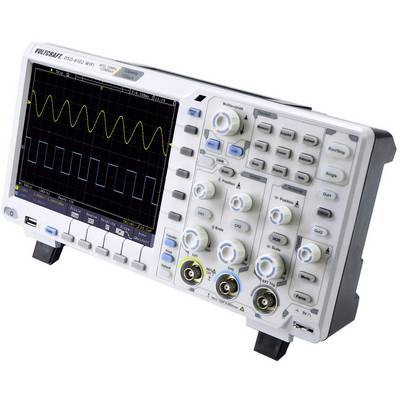

Digital oscilloscope with yellow and blue waveform display. Device buttons and connections are visible. Used for signal analysis.

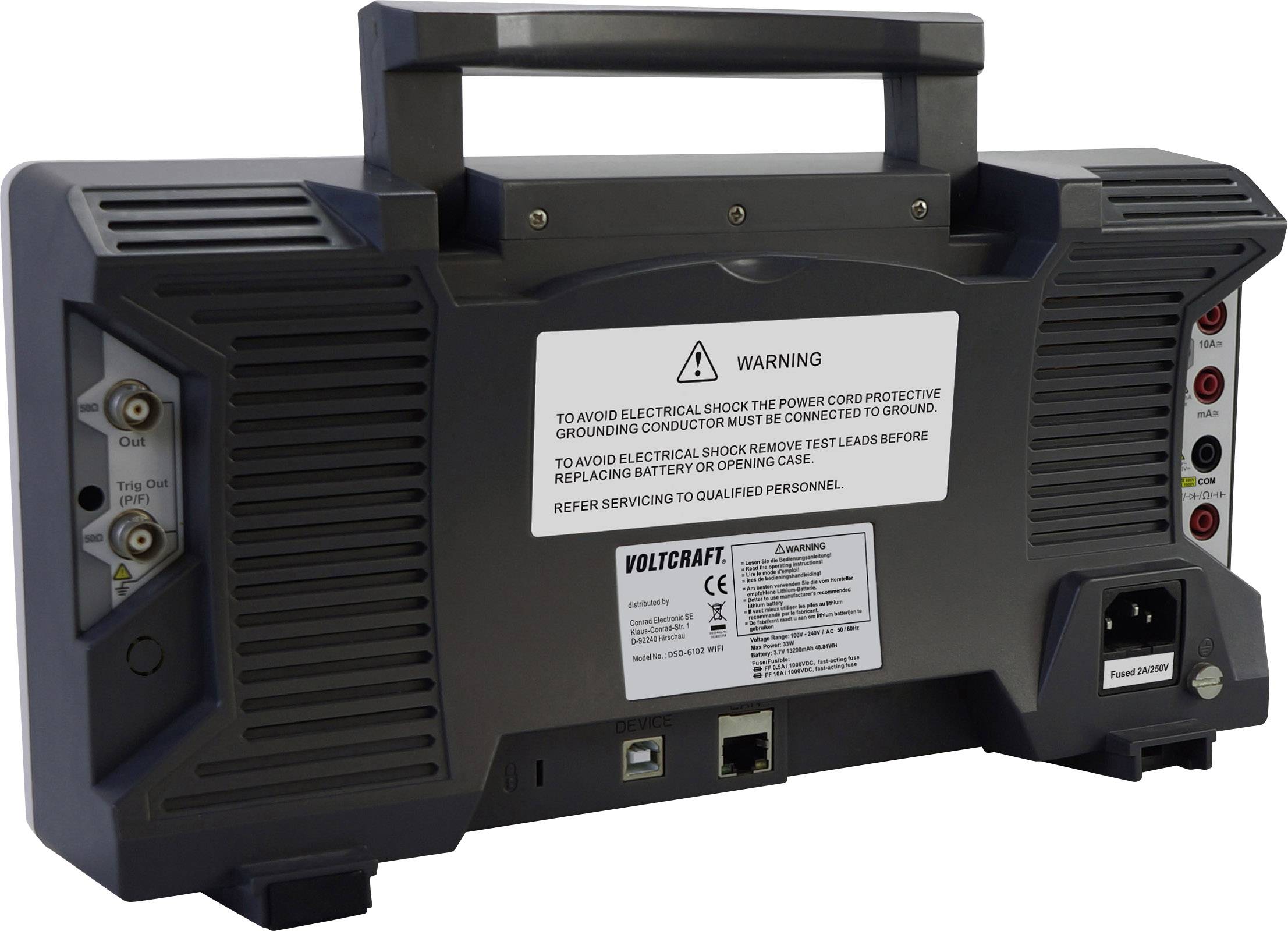

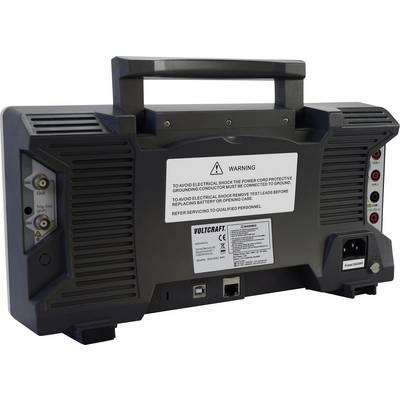

Back panel of a portable measuring device with connection sockets, power switch, and electrical safety warning labels.

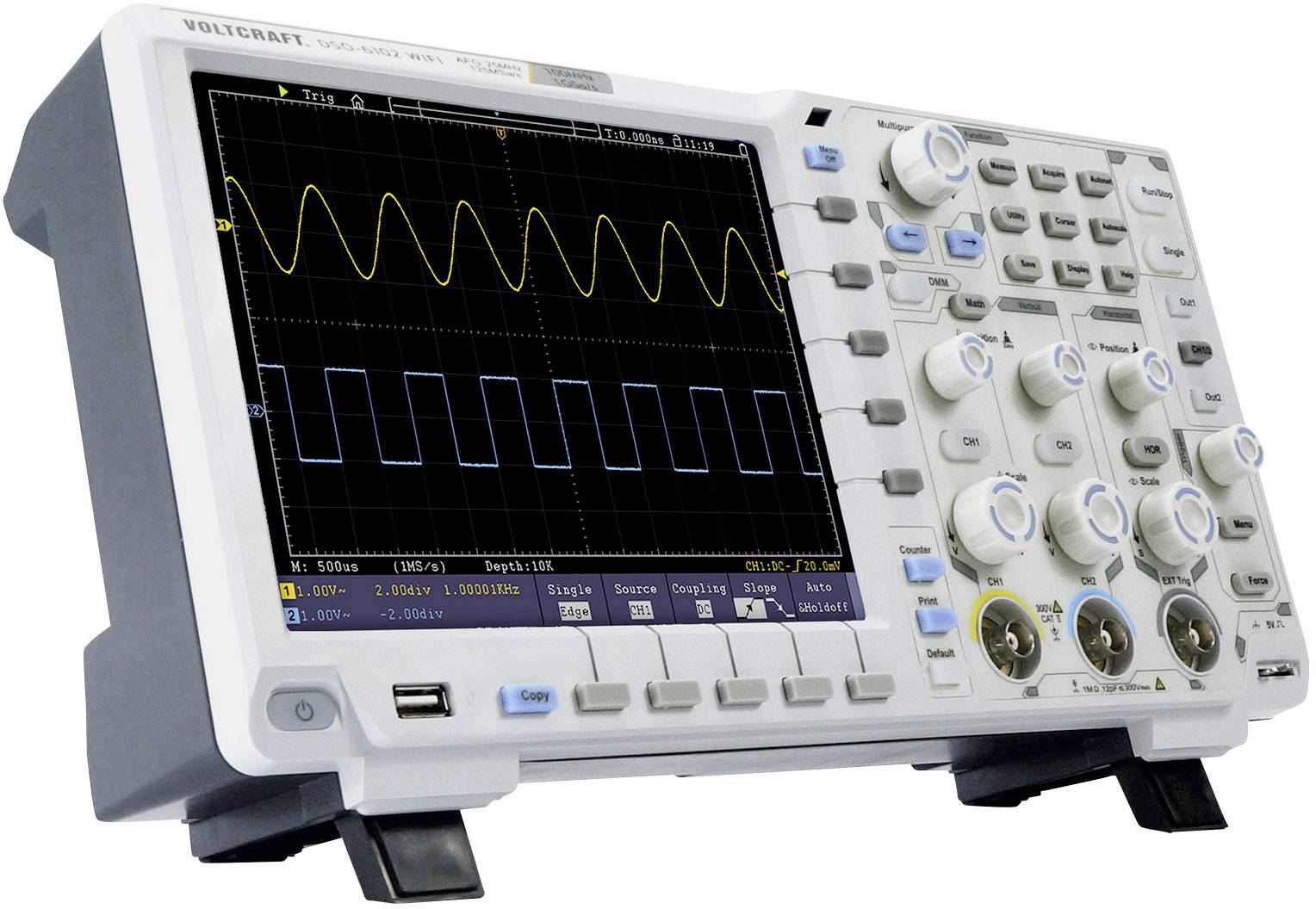

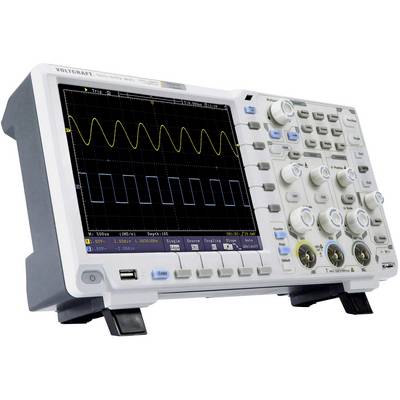

An oscilloscope displays two overlaid signal curves on the screen, one sinusoidal, the other rectangular. Device buttons are positioned on the right.

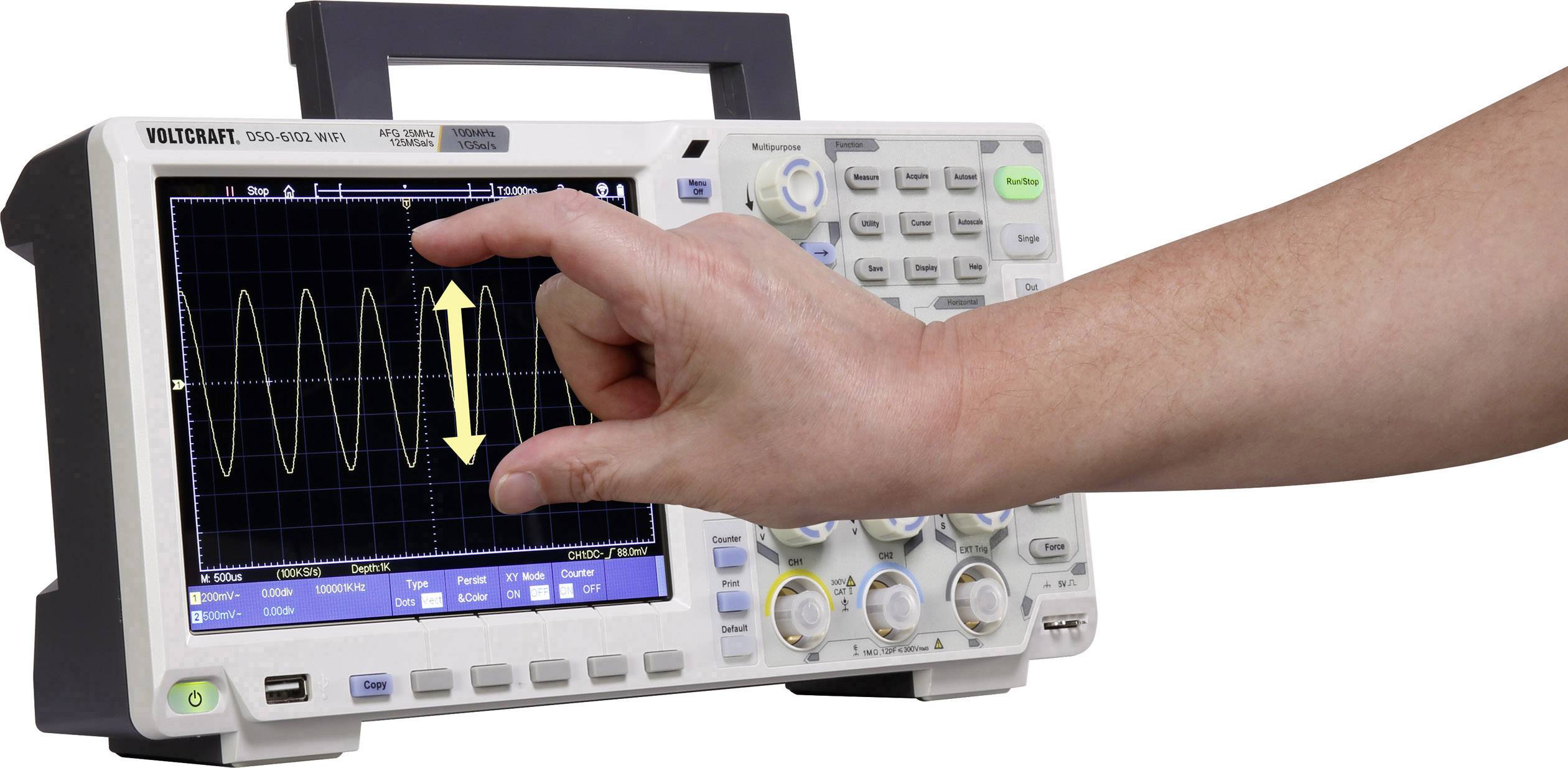

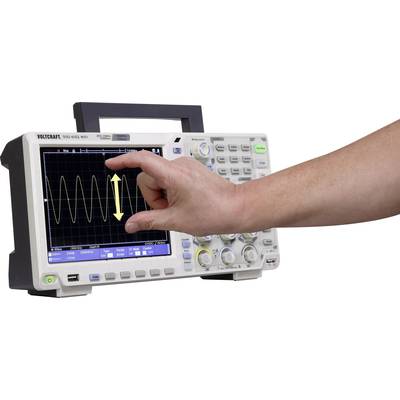

A oscilloscope with a hand pointing to the display. The display shows a wave-like curve with a vertical double-arrow.

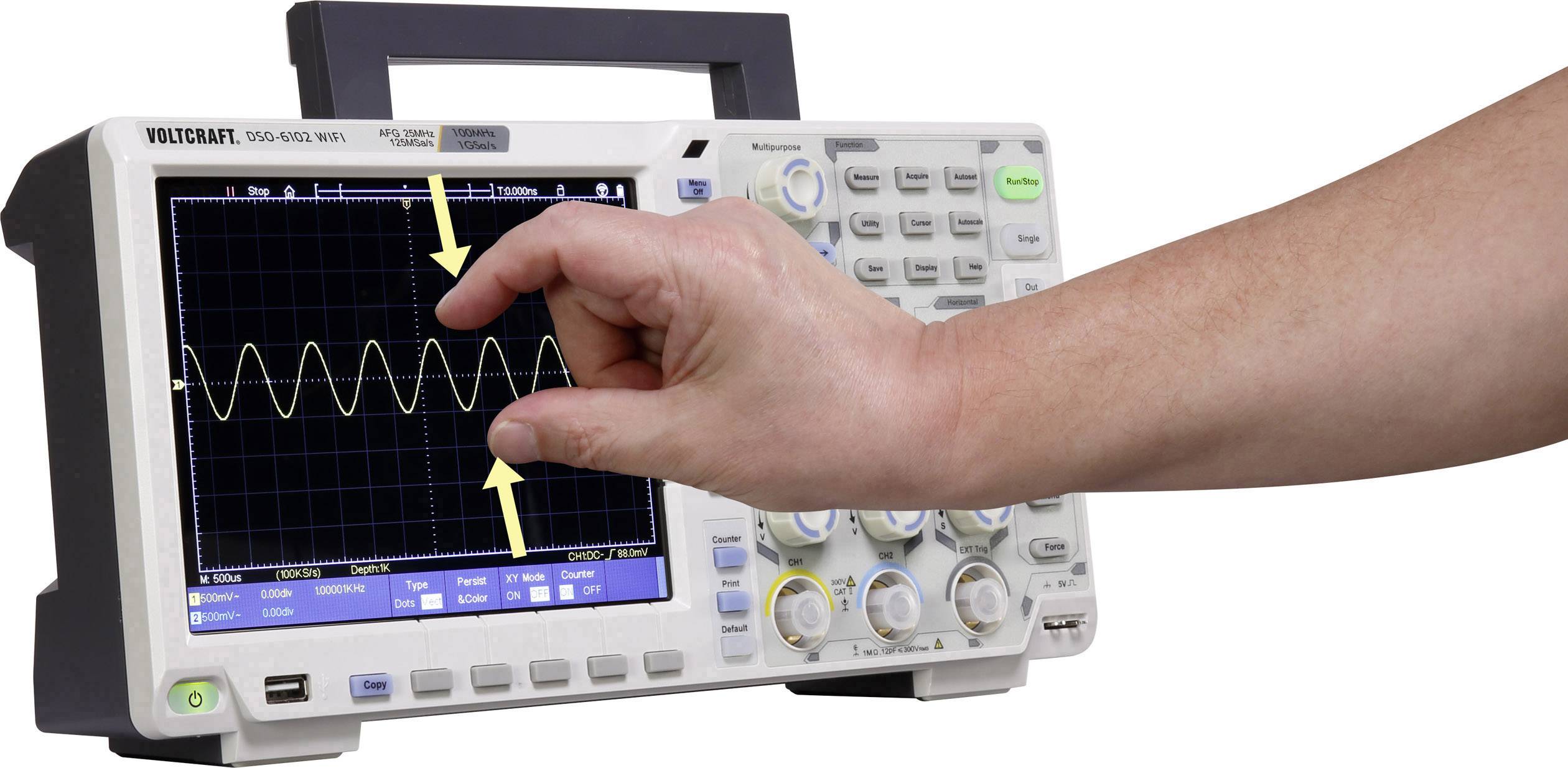

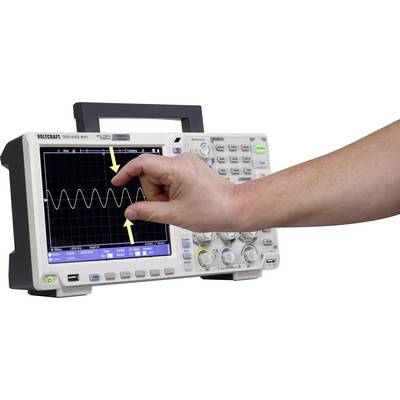

'A hand points to an oscilloscope displaying a sinusoidal voltage curve. Two yellow arrows mark specific sections.'

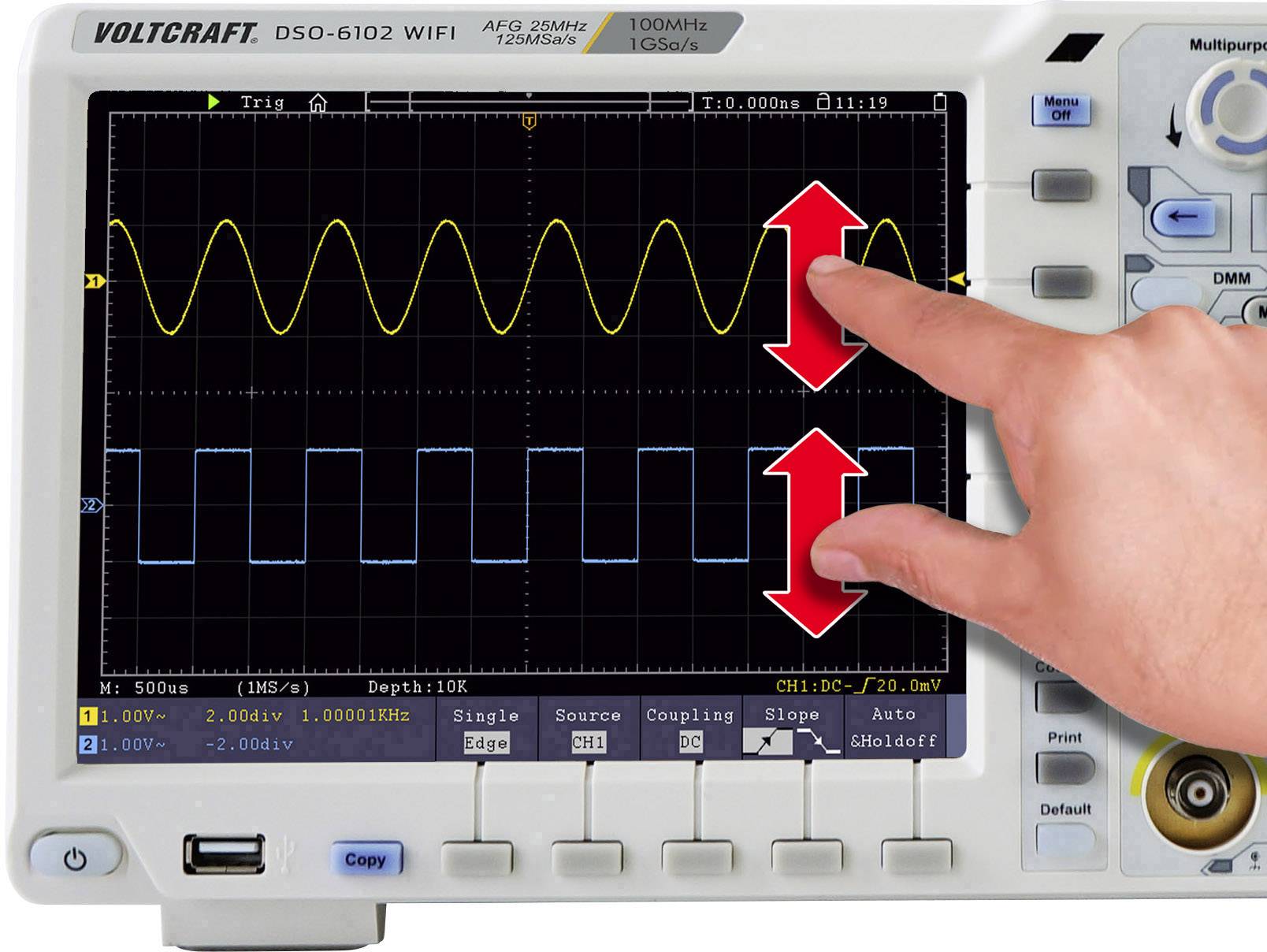

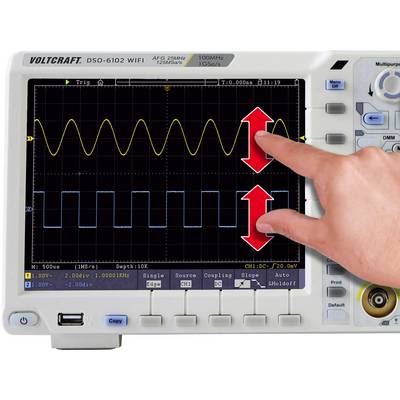

A oscilloscope shows two waveforms. A hand points to a section of the waves to mark differences in height or amplitude.

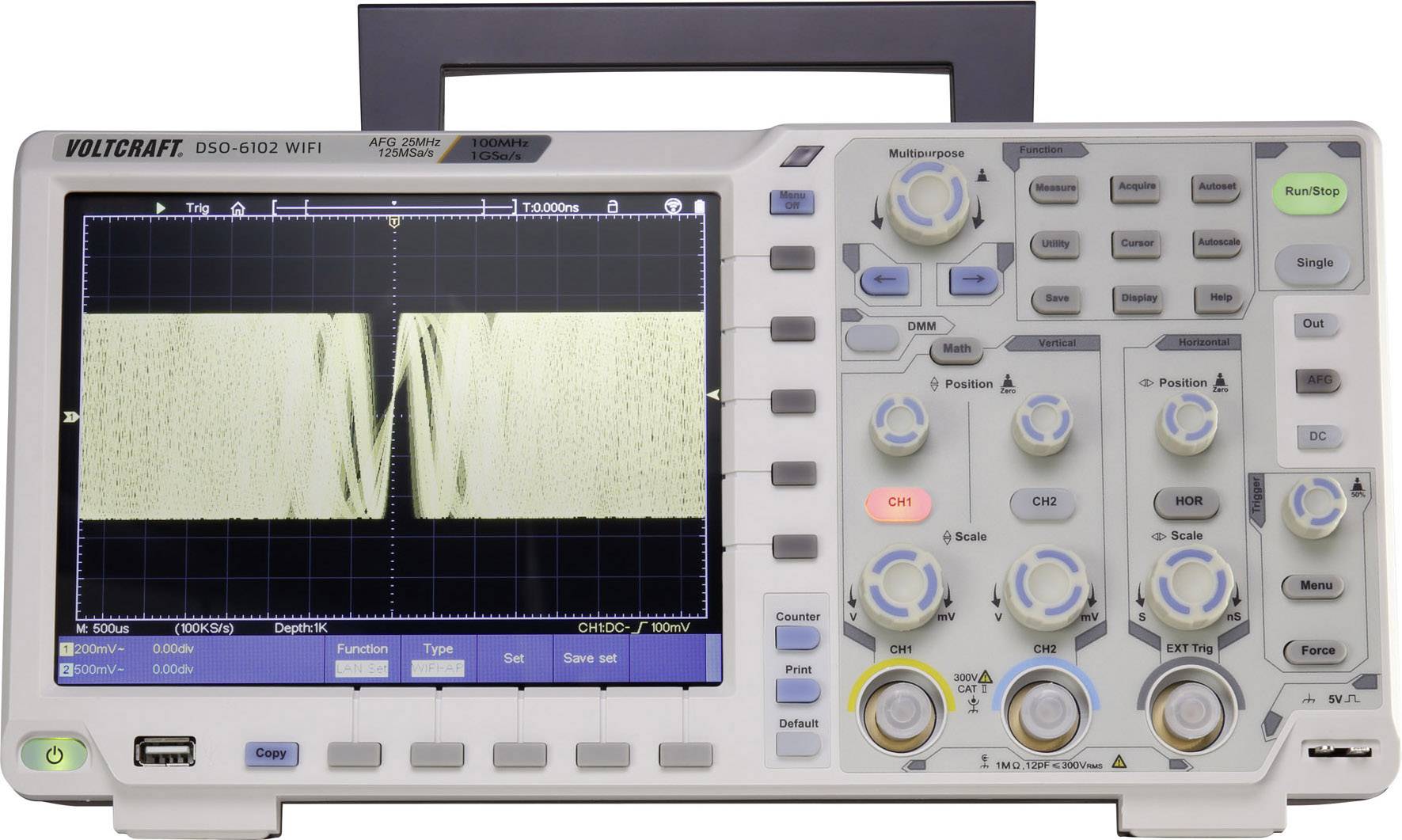

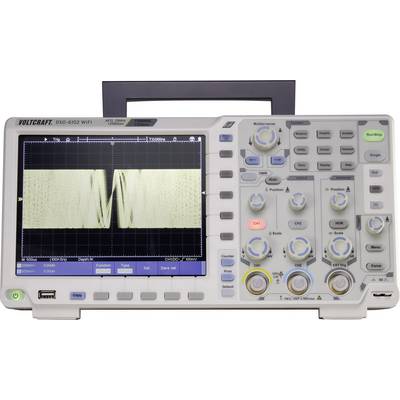

A digital oscilloscope with a screen displaying a waveform. Control and adjustment buttons are located on the right side.

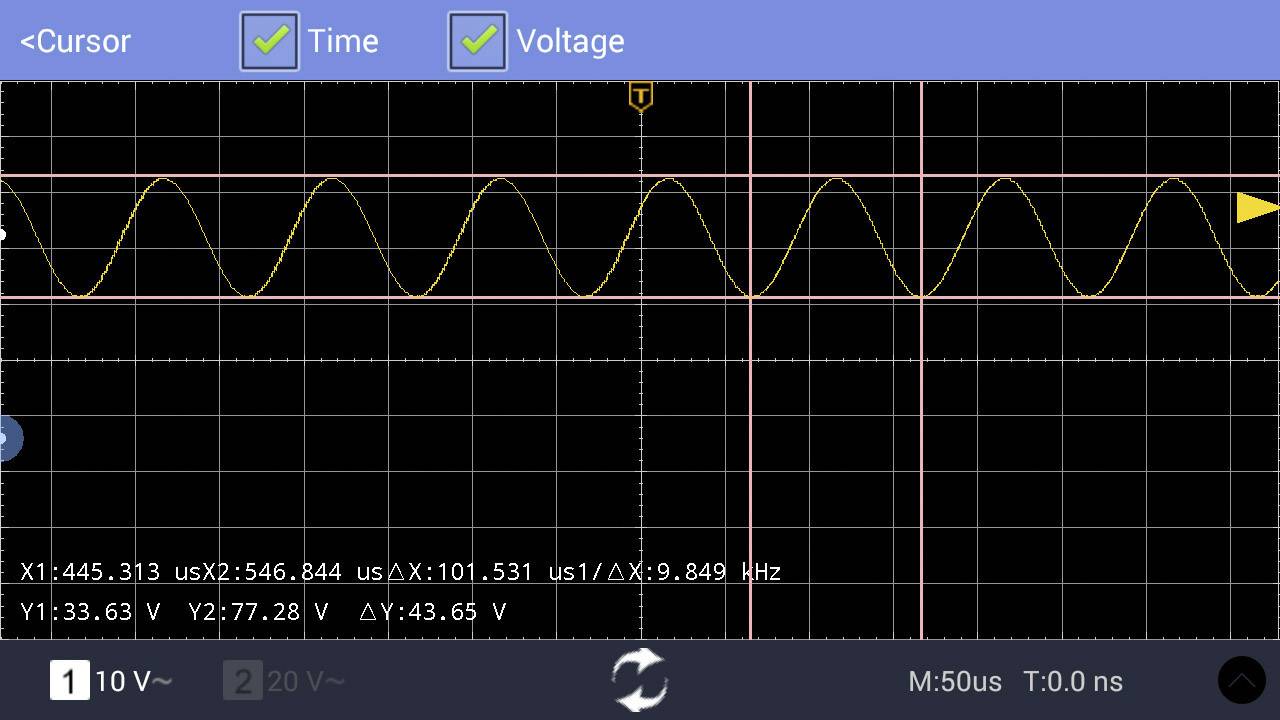

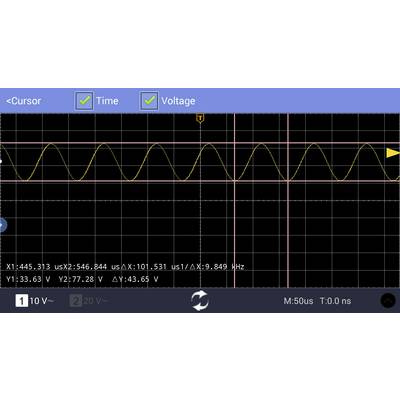

'Oscilloscope display shows a sine wave with markers at X: 101.531 ns and Y: 43.65 V. Time axis is M: 50 µs, T: 0.0 ns.'

Display area of measuring device shows 'MANUAL', 'DC', voltage '−0.4 mV' and 'Δ 4.3 mV'.

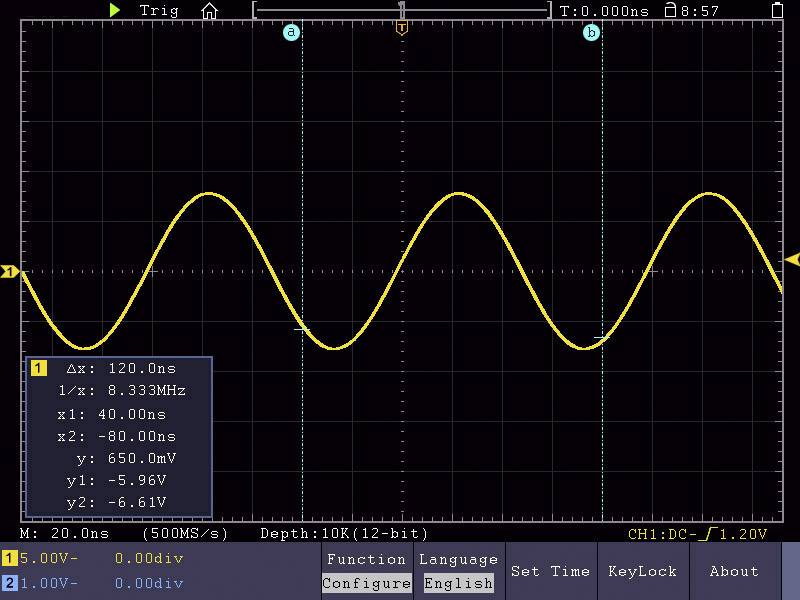

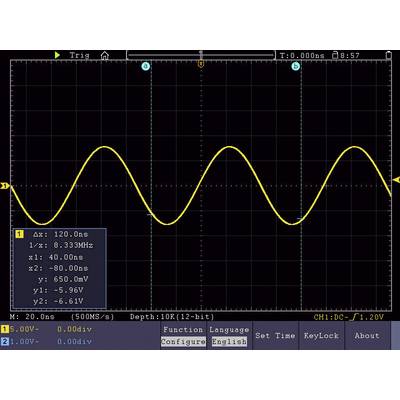

'Oscilloscope shows yellow sine wave over time, markers T1 and T2 set. Delta x: 120.0ns, Delta y: -5.96V. Frequency: 8.333MHz.'

Path 'flash/USER4', selected file: USER4, Last modified: 9 July 2015, 19:21, File size: 2.00 kB, small diagram below.

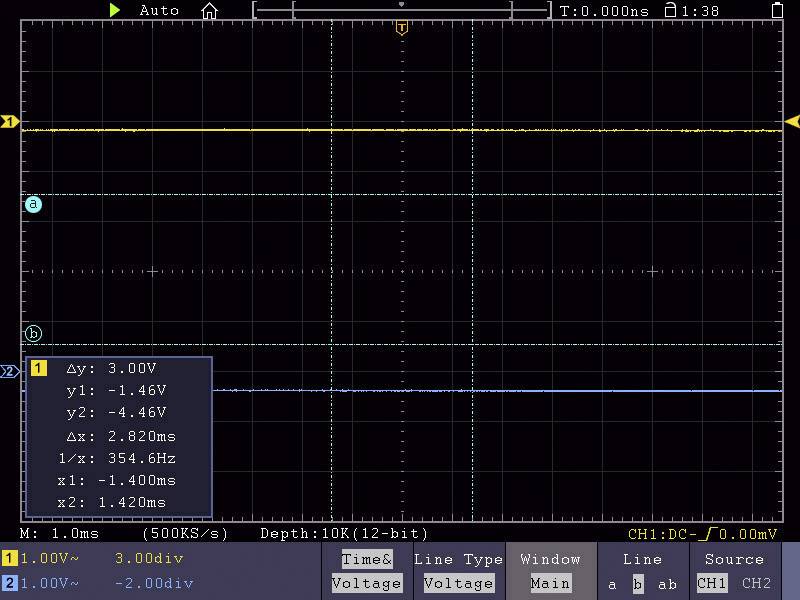

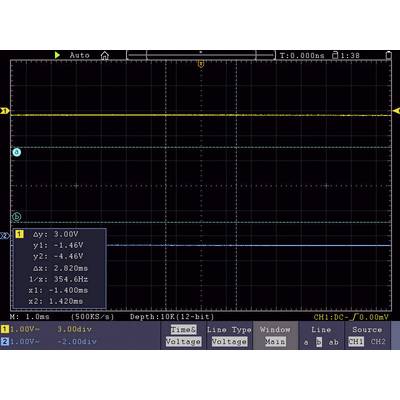

Oscilloscope Measurement: Two voltage waveforms, one constant at 0V, the other varying at -3V, with measurement points and frequencies displayed.

VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital-19

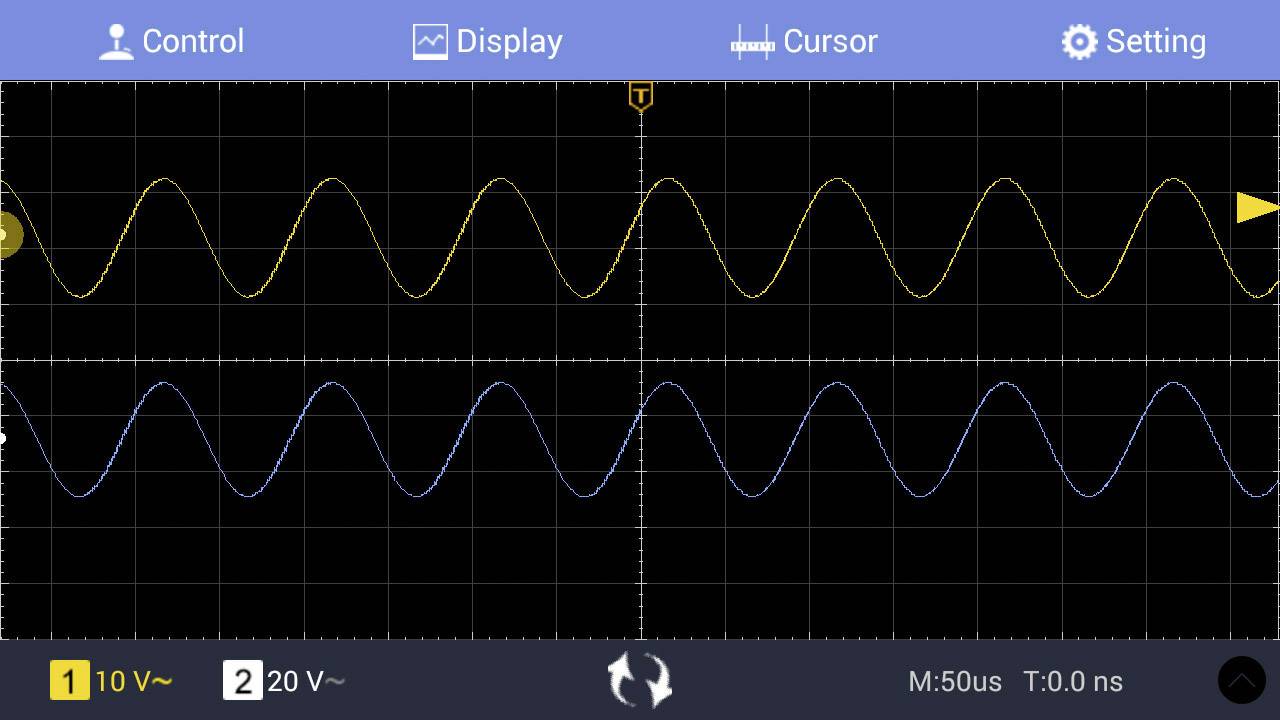

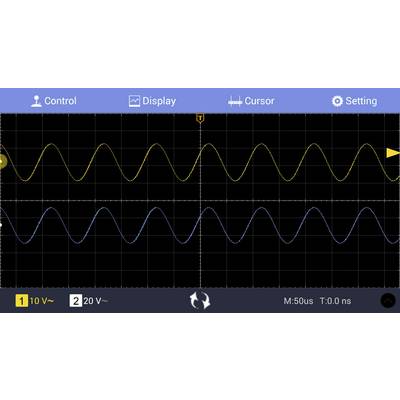

Two waveforms on an oscilloscope display. The yellow wave at 10 V, the blue at 20 V. Measurement values below: M: 50 µs, T: 0.0 ns.

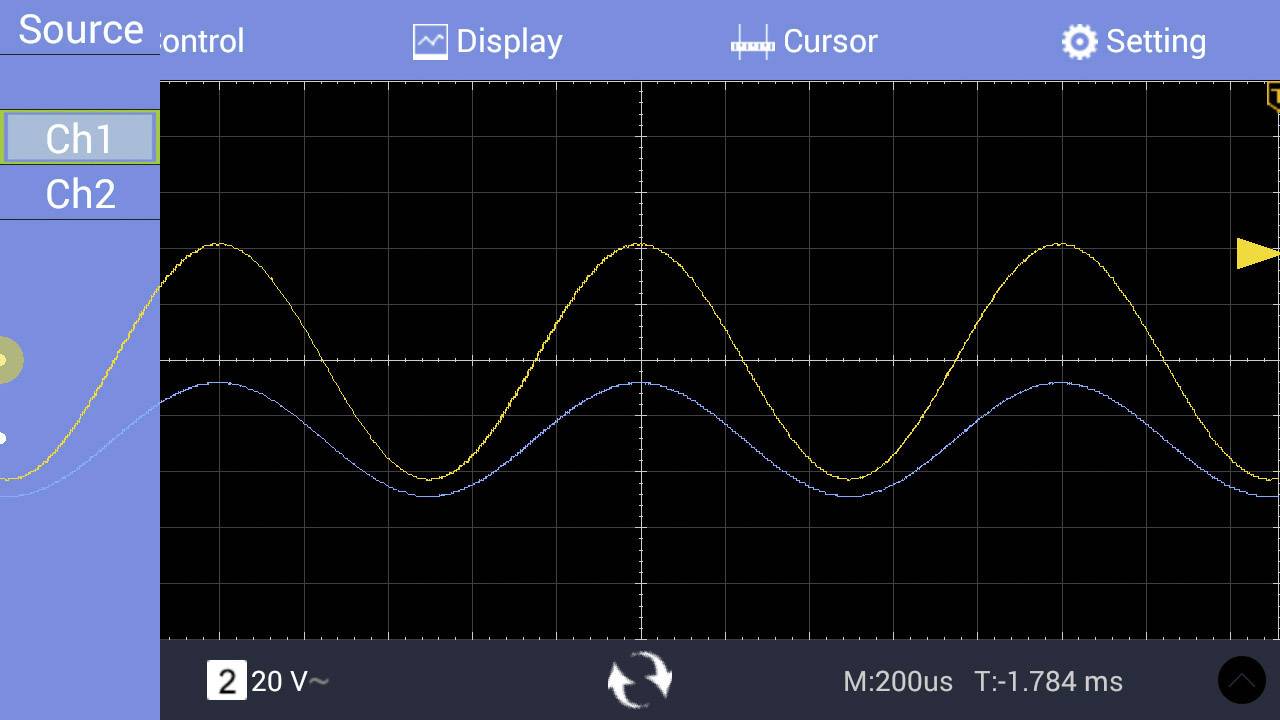

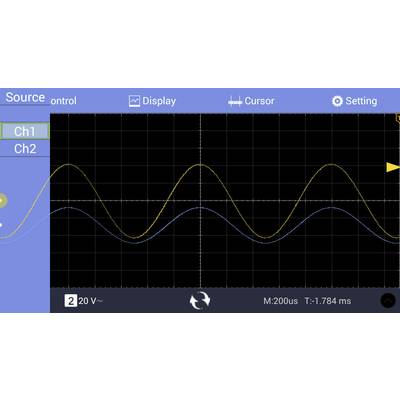

'Oscilloscope shows two sine waves with different amplitudes on channels 1 and 2, blue and yellow lines, on a grid diagram.'

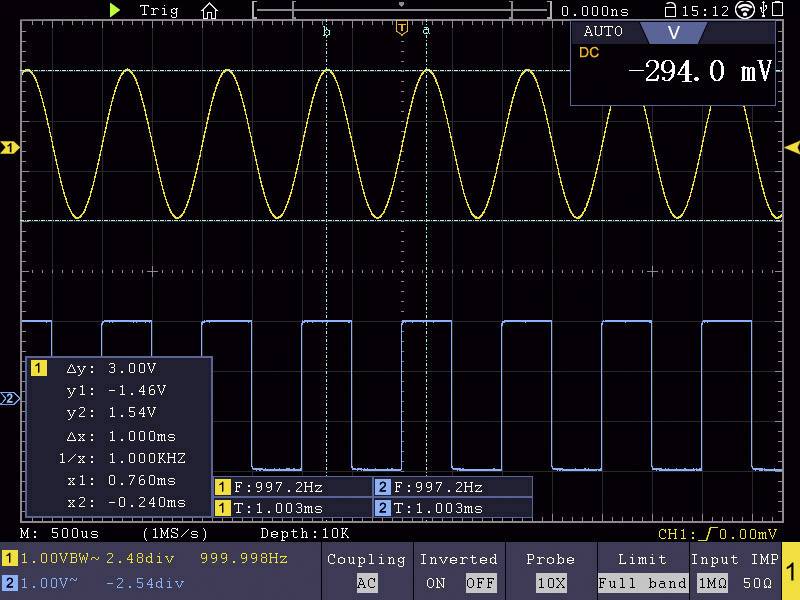

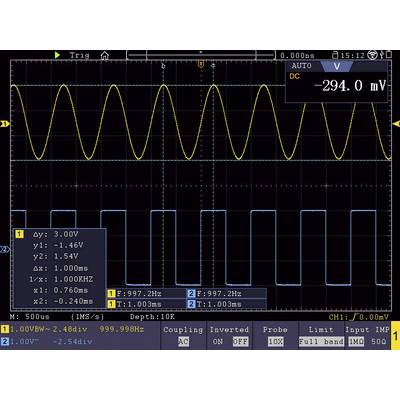

Oscilloscope image shows two signal traces: Yellow sine wave (997.2 Hz) and blue square wave (997.2 Hz). Two voltage differentials.

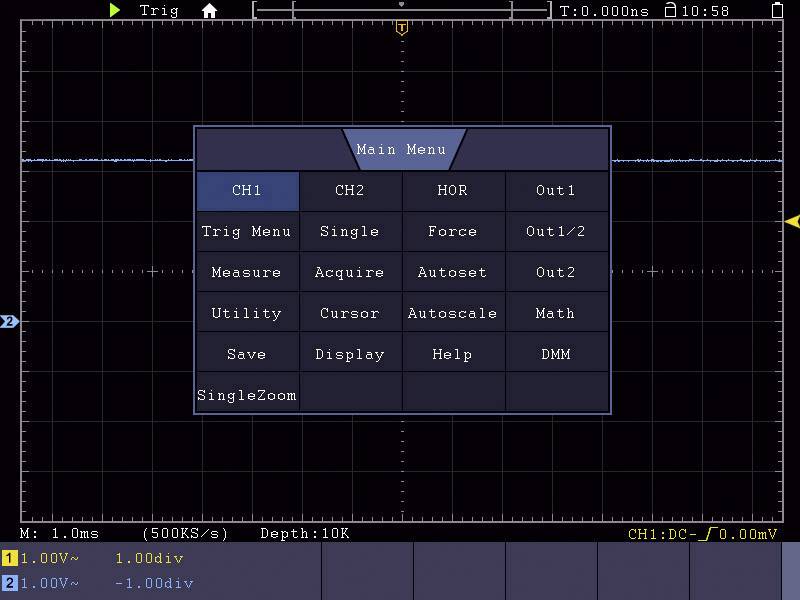

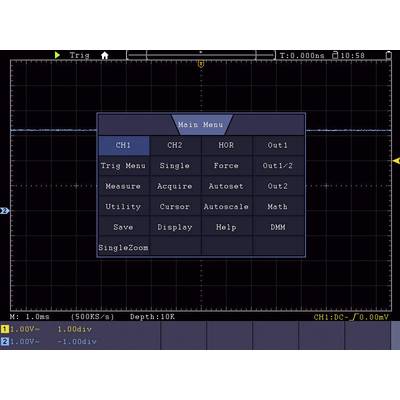

Main screen of an oscilloscope with a menu showing options such as 'Trig Menu', 'Measure', 'Utility', 'Autoscale' and 'Help'.

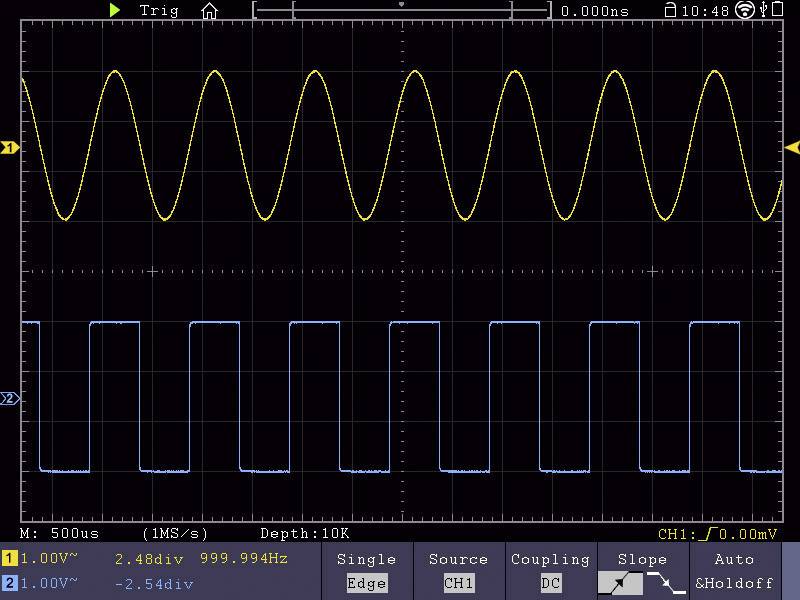

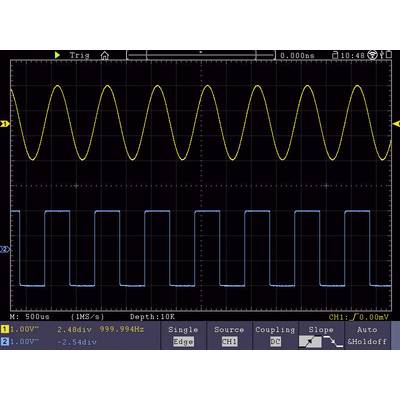

'Oscilloscope display shows two waveforms: yellow sine curve at the top, blue square wave at the bottom, both at approximately 1 kHz.'

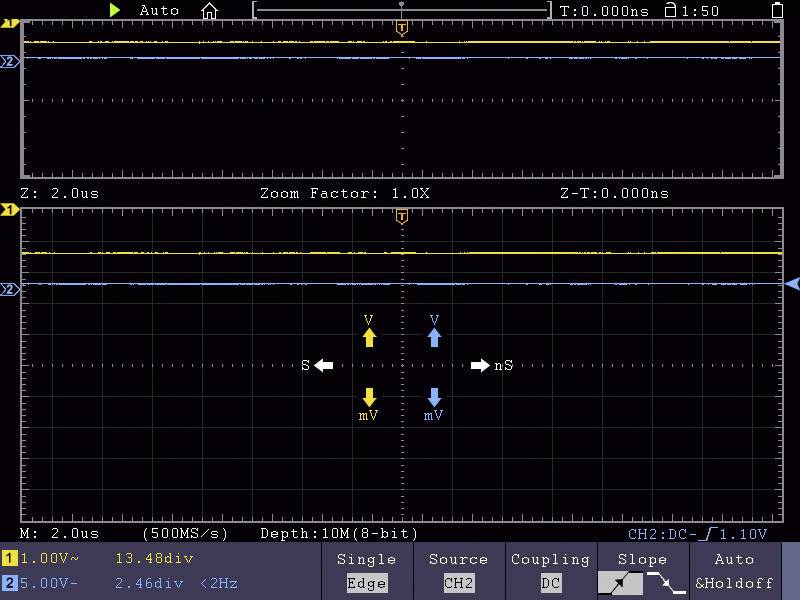

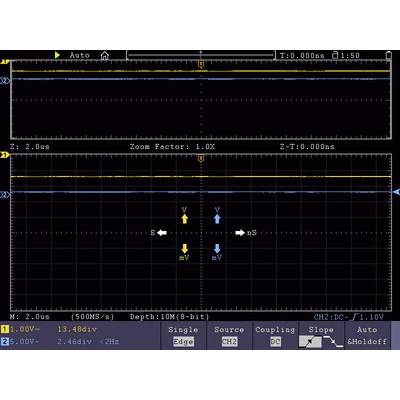

Oscilloscope display with two diagrams; upper curve shows yellow and blue signals, lower zoom view with 'V' and 'mV' arrows.

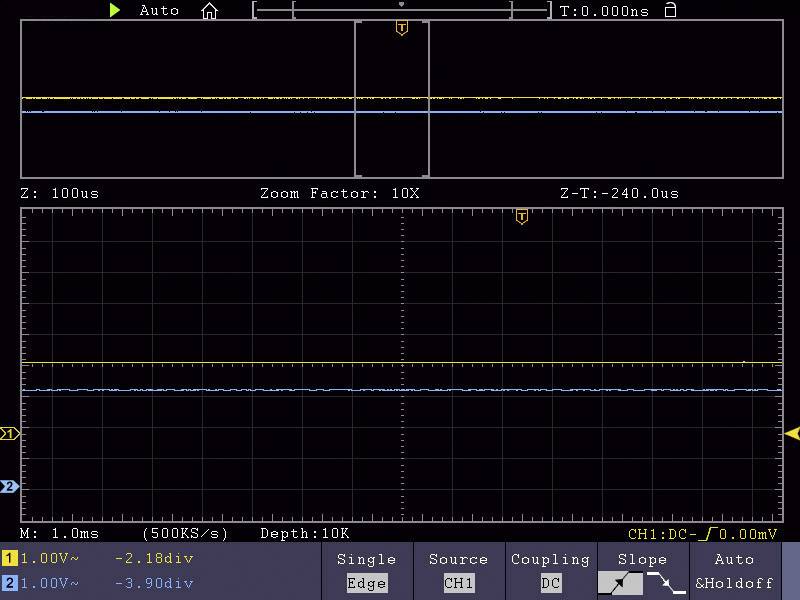

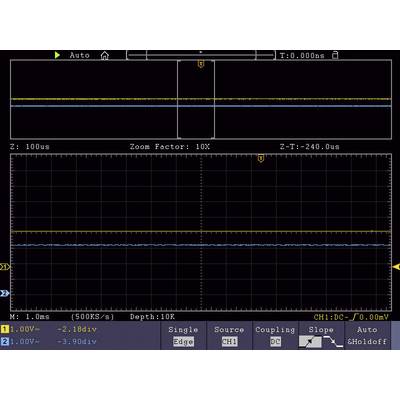

Two-channel oscilloscope display: Upper constant yellow line at 0 V, lower blue line at approximately -3.90 V. Time base 1 ms/div.

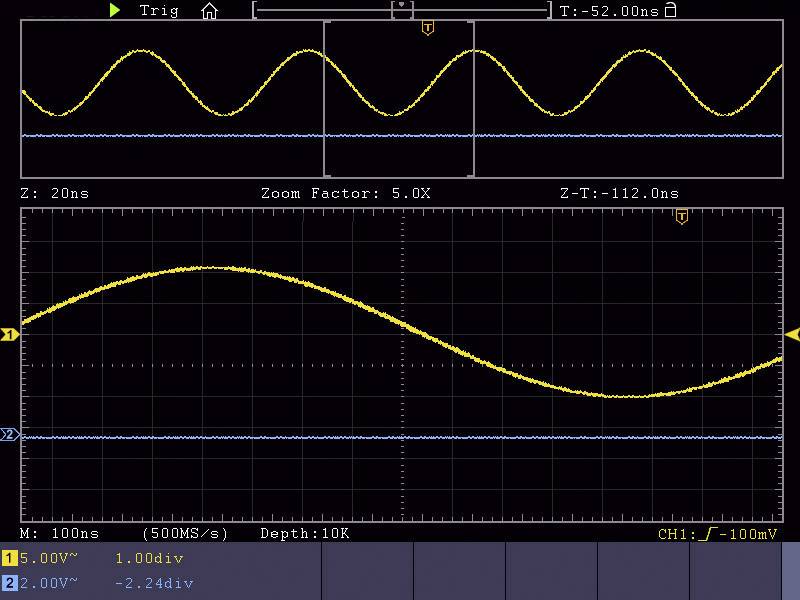

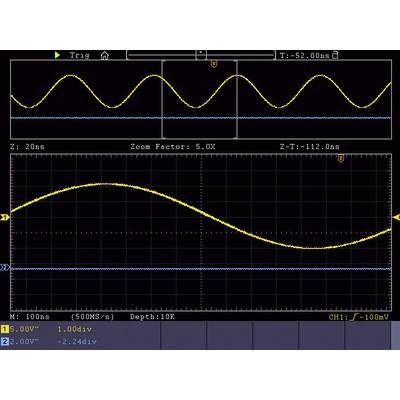

'Oscilloscope display: Two sinusoidal waves. Top: Detail view at 20 ns. Bottom: Overall view, showing larger wavelength.'

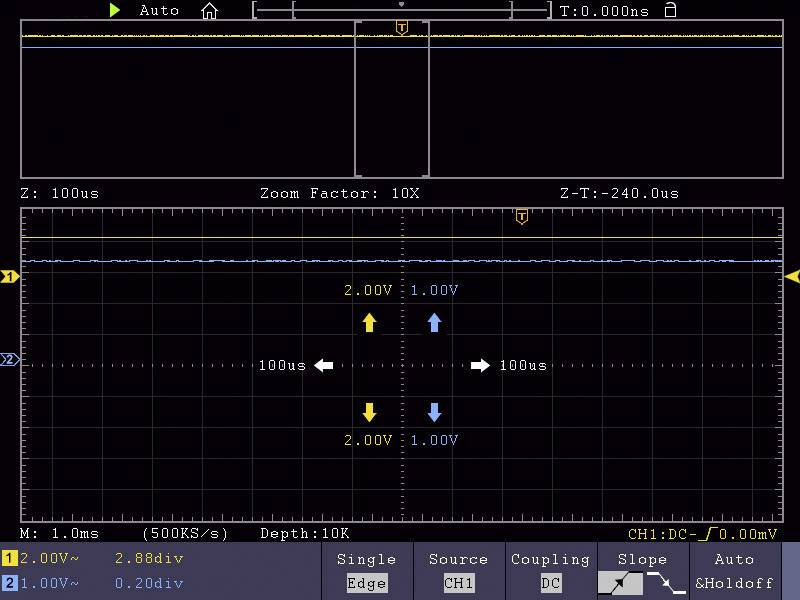

'Oscilloscope display shows two signals: Yellow and Blue. Yellow signal has peak value of 2.88 div, blue signal has peak value of 0.20 div. Time base 100 µs/Div.'

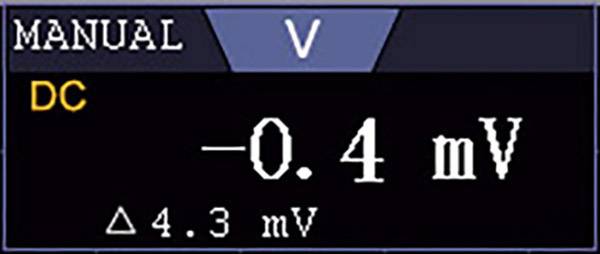

Screen display: Top left 'MANUAL', next to it a blue field with 'V'. Bottom left 'DC', to the right of that '-0.4 mV'. Below that a small 'Δ 4.3 mV'.

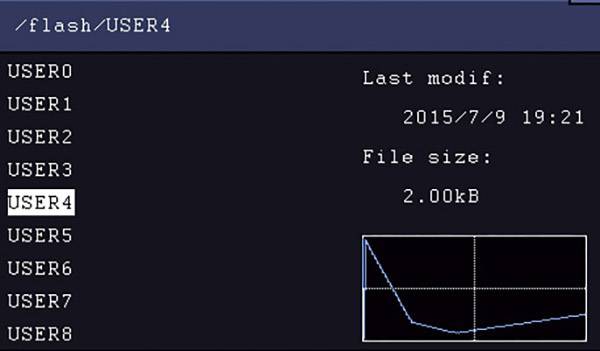

File system display with username. 'USER4' selected. Right side: 'Last modified: 09/07/2015 19:21', 'File size: 2.00 kB'. Diagram below.

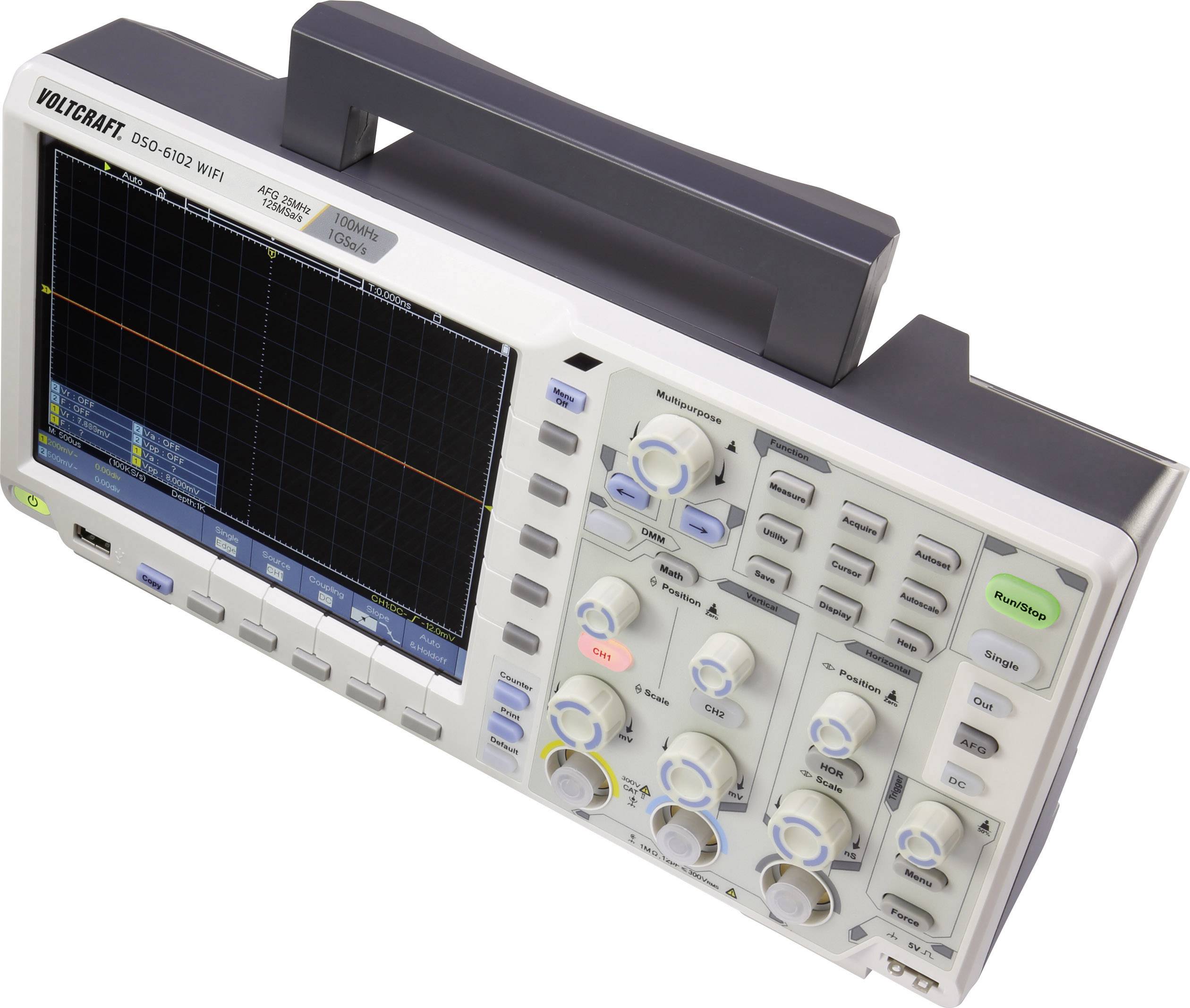

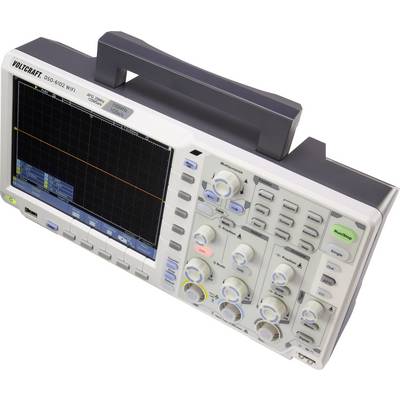

A multi-button oscilloscope with a display showing graphics. Model 'Voltcraft DSO-6102 WIFI' on the device.

1/33

Our service for you

Datasheet (PDF)

Show alternatives

Sales and shipping:

Total (€ 390.76 / piece)

€ 1,015.97

-62 %

€

Report legal concerns

Highlights & Details

DSO-6102 Wi-Fi Digital Storage Oscilloscope

100 MHz bandwidth
8" (20.32cm) 800 x 600 pixel multi-touch screen (smartphone-like zoom function)
Colour temperature mode
Battery- and mains-powered
25 MHz DDS arbitrary waveform generator

Technical specifications

Mathematical operations: + - * / FFT
Refresh rate: 75.000 wfms/s
Rise time: < 3.5 ns
13200 mAh Li-ion battery

Product type: Digital

Bandwidth: 100 MHz

Channel sample rate: 1 GS/s

Displays: Multi-touch 800 x 600 pixels

Resolution: 8 Bit

Screen size: 20,32 cm (8")

Oscilloscope features: Function generator
Multimeter functions
Digital storage (DSO)

Time base: 2 ns/div - 100 s/div

No. of analogue inputs: 2

: Manufacturer's standards (no certificate)

Reading category: CAT II

Vertical deflection: 1 mV/div - 10 V/div

Input impedance: 1 MΩ

Input coupling: DC / AC / GND

Input voltage: 1 MΩ <= 300 Vrms, 50 Ω <= 5 Vrms

Power supply (details): 100–240 V/AC 50/60 Hz, CATII

Dim: (L x W x H) 90 x 340 x 178 mm

Weight: 2674 g

Display: LCD / 800 x 600 p

Width: 340 mm

Height: 178 mm

Length: 90 mm

Interfaces: USB device
USB host
LAN
PG jack socket

Channel memory depth: 40000 KP

Type: DSO-6102WIFI

Documents & Downloads

Datasheet

Datasheet 1534604 VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital

User & Safety Instructions

User & Safety Instructions 1534604 VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital

Conformity certificate

Conformity certificate 1534604 VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital

Warranty Terms

Warranty Terms 1534604 VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital

Download

Download 1534604 VOLTCRAFT DSO-6102WIFI Digital 100 MHz 2-channel 1 GS/s 40000 KP 8 Bit Function generator, Multimeter functions, Digital

Description

The DSO-6102 WIFI has been designed for R&D facilites, laboratories and service engineers. As usual, settings are adjustable either by using the buttons or via touchscreen. Zooming in or screen swiping works pretty much like when using a smarphone or tablet.

Colour temperature view
Recurring waveforms are colour-coded according to how often they are detected.

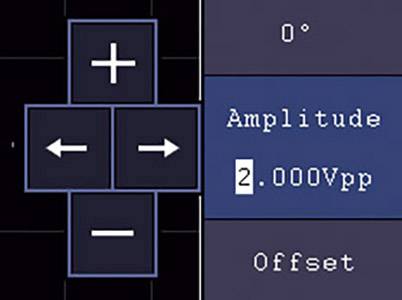

Touch-control function generator
Settings of the 25 MHz 1-channel function generator selectable via buttons or via touchscreen. Also enables generating and saving user-defined waveforms.

Data acquisition and processing
Readings and screen content can be transferred to and stored on a PC via USB, LAN, or Wi-Fi. The built-in multimeter forwards readings to a USB flash drive for futher evaluation (e.g. in Excel)

Built-in digital multimeter and data logger
Safety test lead jacks of the built-in DMM are located on the rear panel. The DDM feature including a datalogger and resistance and capacitance testing make the DOS a good choice for any R&D working environment.

Battery power option
A built-in Li-ion battery powers the DOS if you are called out for a service job, or need to work off mains in the lab.

Features

Colour temperature mode
USB output supports Pict Bridge
Function generator: 25 MHz, 125 MSa/s, 1-channel, 14-bit
Multimeter: 4000 counts, 1000 V/DC, 400 V/AC, 10A/DC, A/AC, 50 nF - 100µF, diode testing, continuity tester.
