Image similar

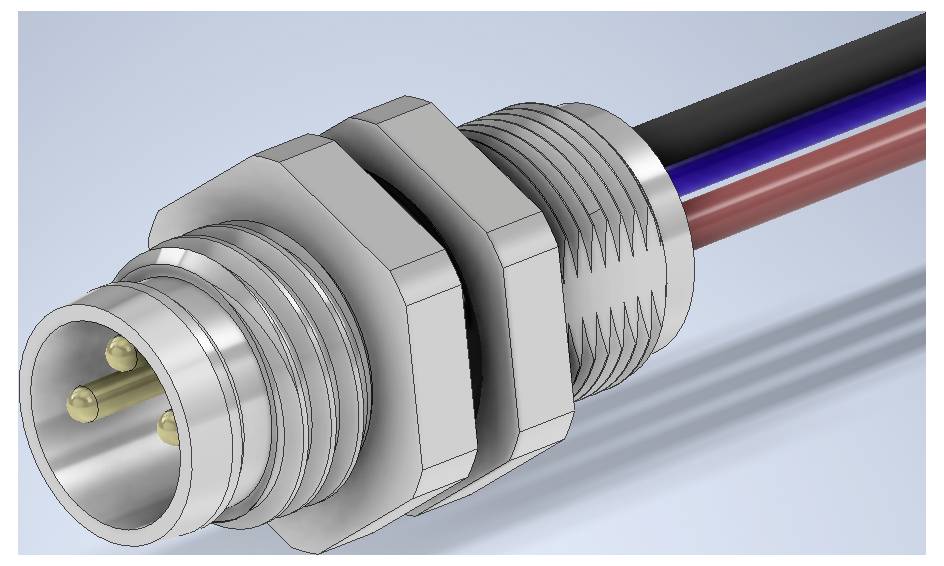

W & P Products 94517 Sensor/actuator recess-mount plug M8 Plug, horizontal mount 30 cm No. of pins (RJ): 3 1 pc(s) Piece
Product type
Sensor/actuator recess-mount plug
Connector type
Plug, horizontal mount
Connection side A
M8 plug, built-in
Connection side B
Cable, open end
No. of pins
3
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 6.99 / piece)
€ 6.99
incl. VAT
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Packaging type
Piece
- Type
881-3-03-1-2281-300-0-217
- Product type
Sensor/actuator recess-mount plug
- Connector type
Plug, horizontal mount
- Connection side A
M8 plug, built-in
- Connection side B
Cable, open end
- No. of pins
3
- Cable length
30 cm
- Nominal voltage
60 V
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Connector cross-section (max.)
0.24 mm²
- Cross-section (sensor/actuator wiring)
0.24 mm²
- Connection
Braid
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuZn
- Contact surface
Gold plated
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Min. temperature
-20 °C
- Max. temperature
+85 °C
- Manufacturer part #
94517
- Content
1 pc(s)
- RoHS-compliant
Yes
- Cross section
0.24 mm²
AWG 24
Documents & Downloads
Datasheet
Datasheet 3743862 W & P Products 94517 Sensor/actuator recess-mount plug M8 Plug, horizontal mount 30 cm No. of pins (RJ): 3 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3743862 W & P Products 94517 Sensor/actuator recess-mount plug M8 Plug, horizontal mount 30 cm No. of pins (RJ): 3 1 pc(s) Piece
