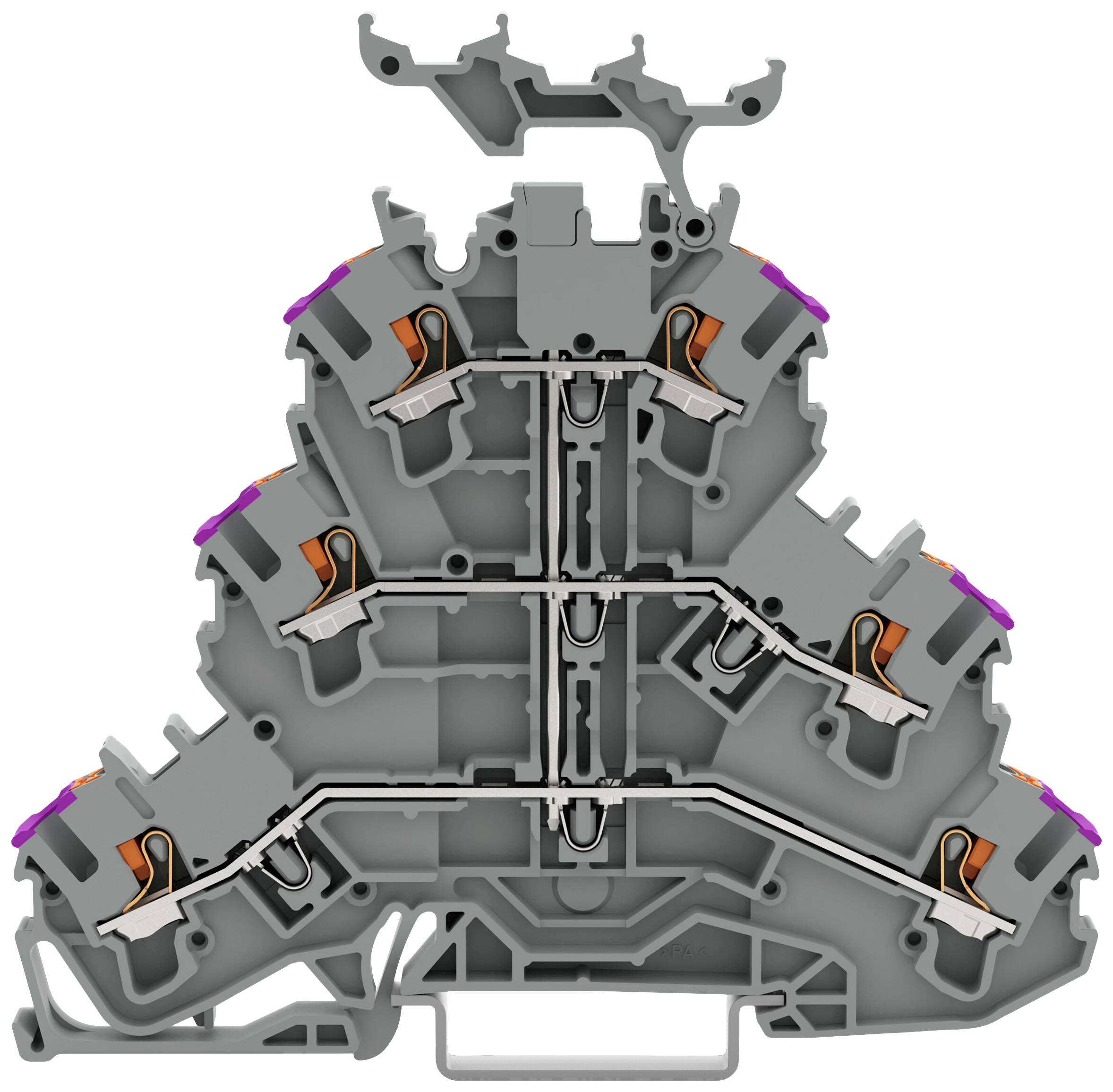

WAGO 2202-3238 Triple port continuity Spring-loaded heavy duty connector Grey 50 pc(s)
Product type
Triple port continuity
Connection
Spring-loaded heavy duty connector
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
24 A
EAN:
Part number:
Item no:
Highlights & Details
Three-tier terminal; with push-button; 6-conductor through terminal
- 2202-3238
Technical specifications
- Product type
Triple port continuity
- Features
+ actuator
+ label
built-in jumper
- Connection
Spring-loaded heavy duty connector
- Cross section (flexible) (min.)
0.25 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.25 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
22
- AWG max.
12
- No. of rows
1
- Pins per row
6
- Number of pins
6
- Factory colour
Grey
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
10 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
2202-3238
- Content
50 pc(s)
- Type
2202-3238
- Dim
(W x H) 5.20 mm x 93.60 mm
- Width
5.20 mm
- Height
93.60 mm
- Connector colour
Grey
