WAGO 734-111 Edge connector (sockets) 50 pc(s)

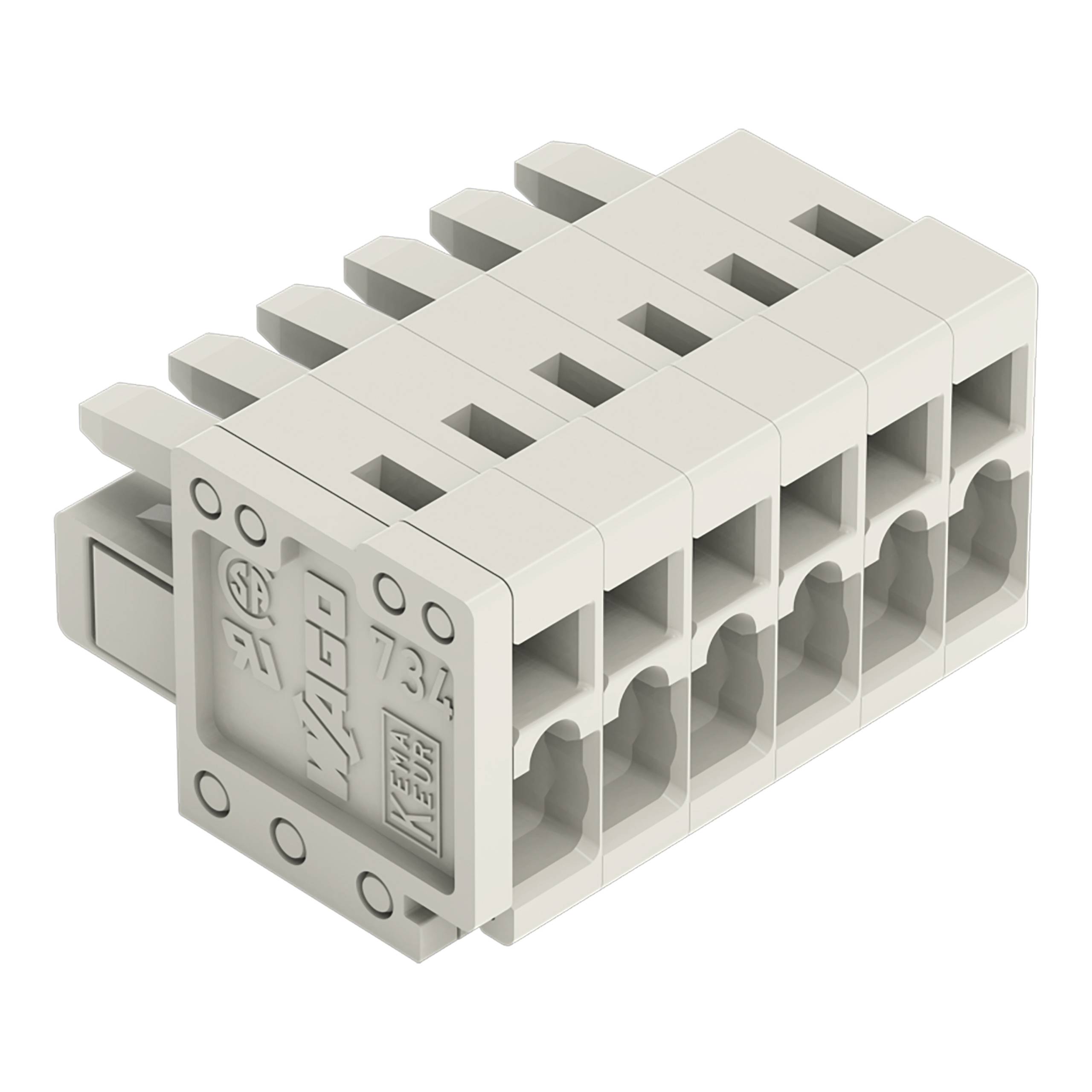

'Plastic electrical connector with six sockets, marked with symbols. Used for joining wires in electrical systems.'

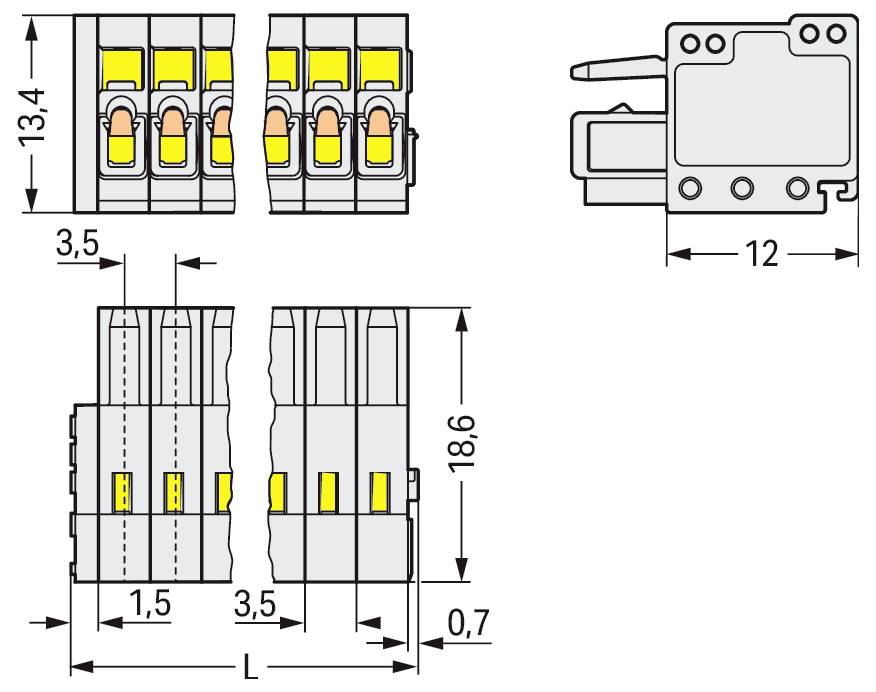

'Technical diagram of an electrical connector showing dimensions: height 18.6mm, width 3.5mm per section, with specific component details.'
1/2
Product type
Edge connector (sockets)
Content
50 pc(s)
Case material
PA
Manufacturer part #
734-111
Type
734-111
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

1-conductor-clip connector CAGE CLAMP®, light GRAY

  • Content 50 pc(s)

Technical specifications

Product type

Edge connector (sockets)

Case material

PA

Manufacturer part #

734-111

Content

50 pc(s)

Type

734-111

Rated surge voltage

2.5 kV

Test current

10 A

Operation

Operating tool

Rated voltage

320 V

Flammability rating

V0

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3635529 WAGO 734-111 Edge connector (sockets) 50 pc(s)

Description

CAGE CLAMP®, light GRAY
