Illustrated is a grey, modular terminal block system with colour-coded connections and labelling, designed for mounting on DIN rails.

Illustrated is a grey, modular terminal block system with colour-coded connections and labelling, designed for mounting on DIN rails.

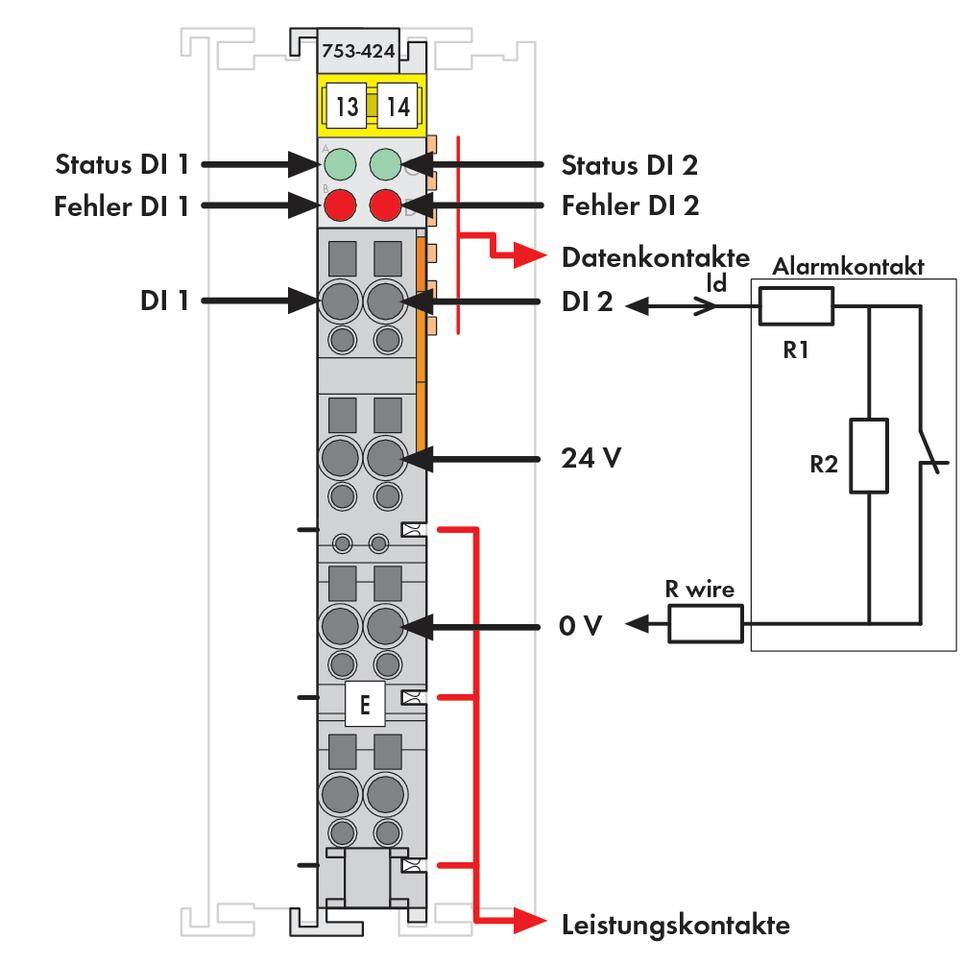

Schematic representation of an electronic module; shows status and error indicators for two digital inputs, data and power contacts, and an alarm contact circuit on the right.

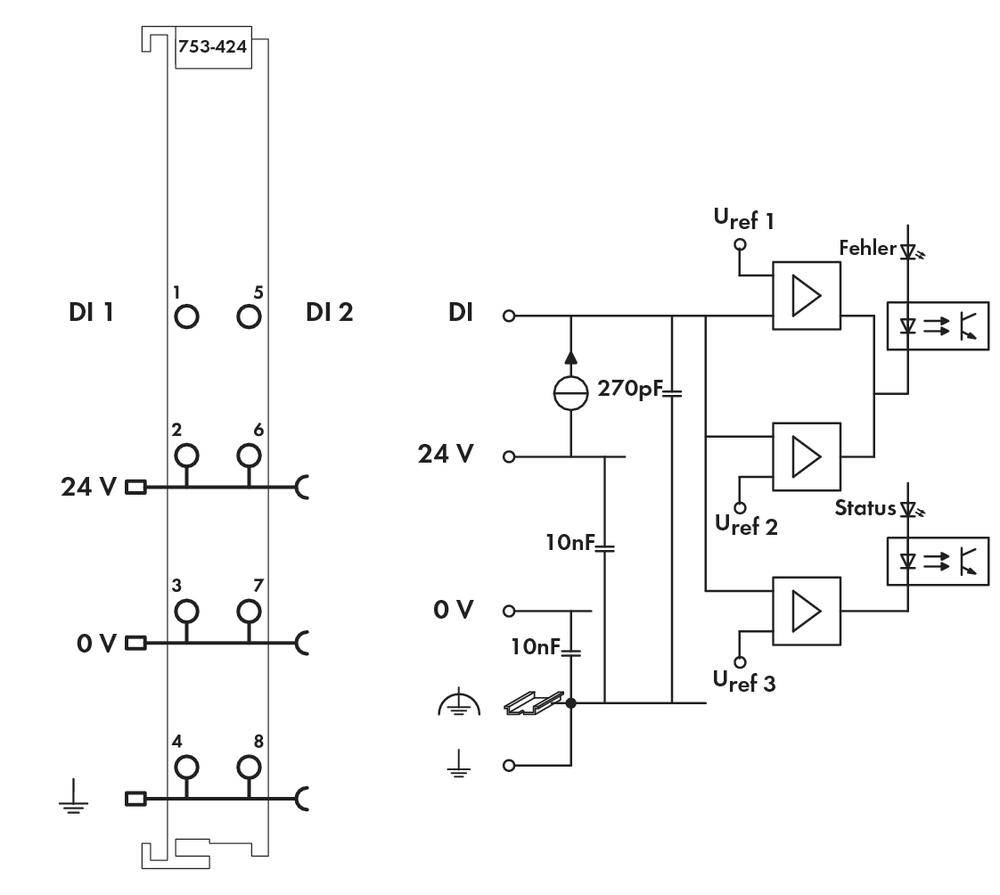

'Circuit diagram shows two circuits: on the left with DI1, DI2, 24V, 0V; on the right with 270pF, 10nF, error and status indicators with LEDs.'

1/3

WAGO

Datasheet (PDF)

Dispatches on Tue, 20 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 70.58 / piece)

€ 70.58

plus VAT.

Report legal concerns

Technical specifications

Color: light gray
Cross-section 0.08 - 2.5 mm²
AWG 28 - 14
Stripping length: 9 - 10 mm
Current consumption: 6 mA
Installation type: TS 35
Protection class: IP20
Operating temperature: 0 to + 55 °C

Product type: PLC intruder alarm

No. of inputs (max.): 2

Operating voltage: 24 V DC

Height: 64 mm

Width: 12 mm

Dim: (W x H x D) 12 x 64 x 100 mm

Manufacturer part #: 753-424

Type: 753-424

Weight: 51 g

Content: 1 pc(s)

Depth: 100 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 192148 WAGO 753-424 PLC intruder alarm

User & Safety Instructions

User & Safety Instructions 192148 WAGO 753-424 PLC intruder alarm

Description

24 V DC, light gray.

This text is machine translated.
