WAGO 756-3206/140-150 Sensor/actuator connector (pre-fab) M23 Socket, right angle 15.00 m No. of pins (RJ): 12 1 pc(s)

EAN:
Part number:
Item no:

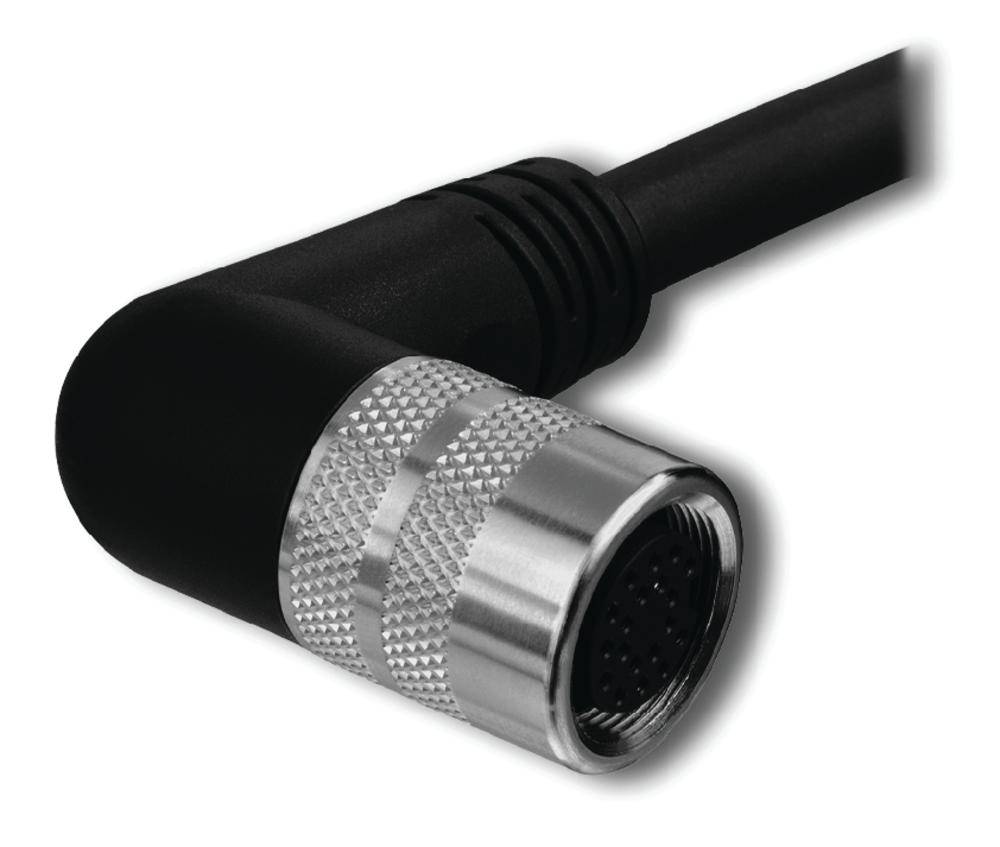

Black, angled round connector with silver metal element, suitable for connecting electronic devices.
14-pin round plug with letters A to U positioned at various points around the circumference.
'Pin A, L: 0.75 mm²; Pin C-J, N-T: 0.34 mm². A: brown, C: white-pink, E: black, G: pink, J: green, L: blue, M: bridged with A, N: pink-brown, O: purple, R: white, S: red, T: grey, U: bridged with L.'
Technical drawing of a pipe connection with dimensions: Length 48.5 mm, Width 20.2 mm, Height 45 mm. Connects at an angle.
1/4
Product type
Sensor/actuator connector (pre-fab)
Connector type
Socket, right angle
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M16 socket, right angle
Datasheet (PDF)
Dispatches on Mon 7 Dec
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 419.00 / piece)
€ 419.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • 14-POL. M16 KABEL, BU WINKLIG, 15.0M
Type

756-3206/140-150

Product type

Sensor/actuator connector (pre-fab)

Connector type

Socket, right angle

Connector standard

Sensor connector

Connection side A

Cable, open end

Connection side B

M16 socket, right angle

No. of pins

12

Cable length

15.00 m

Nominal voltage

300 V

Connection

Open end cable

Thread type connection side

M23

Cable colour

Black

Min. temperature

-5 °C

Max. temperature

+80 °C

Seal type

Screw-on

Manufacturer part #

756-3206/140-150

Content

1 pc(s)

Cable diameter (details)

27.90 mm

Documents & Downloads

Datasheet

Datasheet 546283 WAGO 756-3206/140-150 Sensor/actuator connector (pre-fab) M23 Socket, right angle 15.00 m No. of pins (RJ): 12 1 pc(s)

User & Safety Instructions

User & Safety Instructions 546283 WAGO 756-3206/140-150 Sensor/actuator connector (pre-fab) M23 Socket, right angle 15.00 m No. of pins (RJ): 12 1 pc(s)

Description

For the connection of M8 sensor/actuator boxes, 14-pin M16 socket, angled, open end, 15 m.

This text is machine translated.
