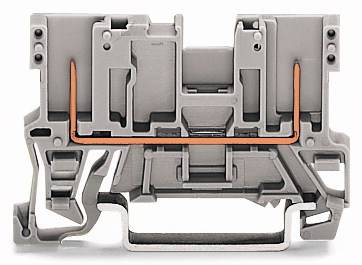

WAGO 769-156 Base terminal 5 mm Pull spring Configuration: L Grey 100 pc(s) Package
Packaging type
Package
Product type
Base terminal
Connection
Pull spring
Nominal current - rounded value
32 A
Content
100 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
2-pin base terminal
- 769-156
Technical specifications
- Packaging type
Package
- Product type
Base terminal
- Connection
Pull spring
- Configuration
L
- Clamp width
5 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Manufacturer part #
769-156
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
769-156

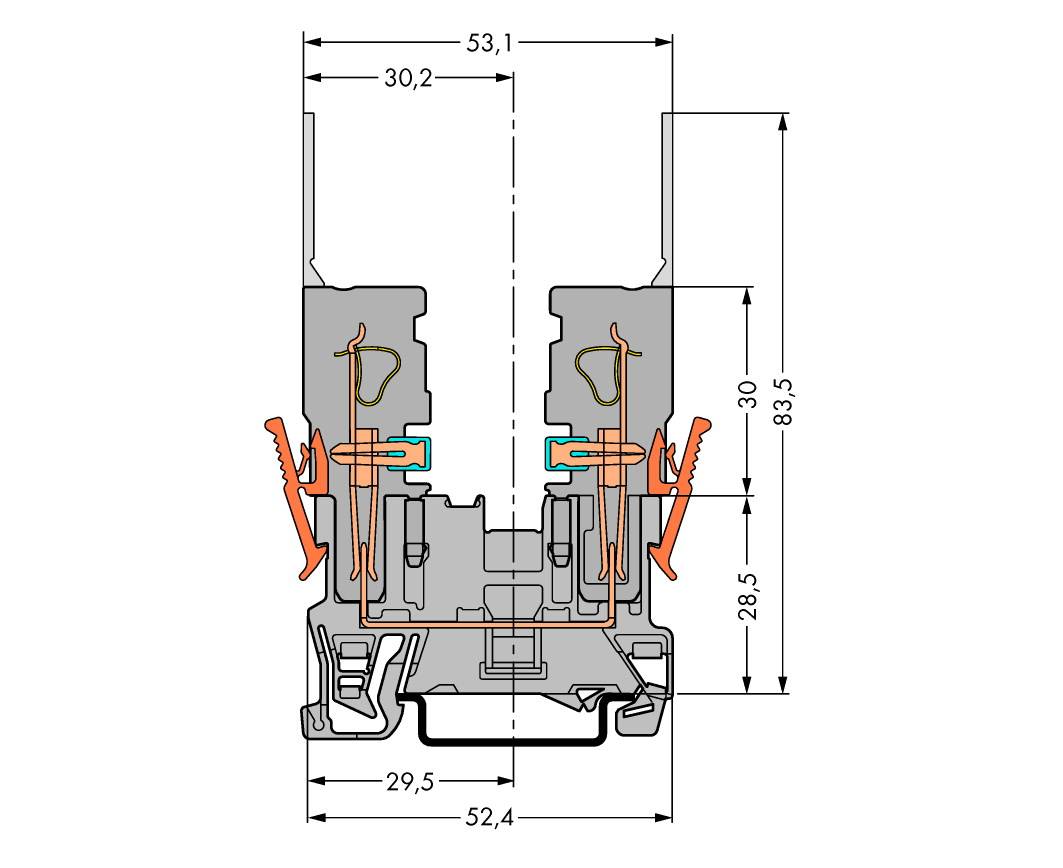

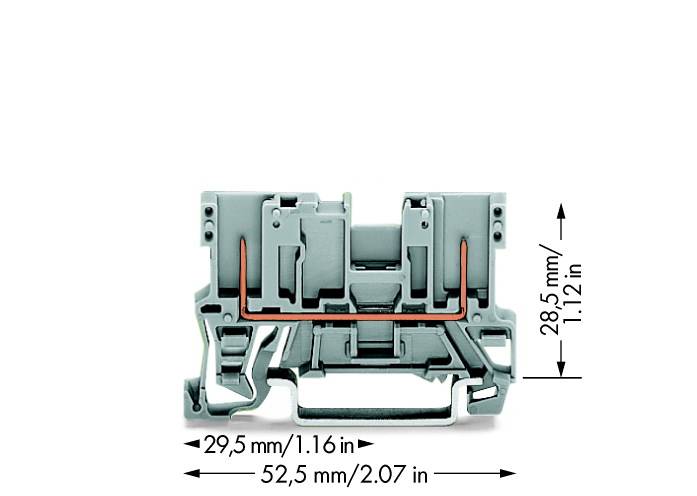

- Dim
(L x W x H) 5 x 5 x 28.50 mm
- Width
5 mm
- Height
28.50 mm
- Length
5 mm
- Contamination level
3
- Weight
4.47 g
- Flammability rating
V0
- Insulation material
Thermoplastic
DIN rail (top hat rail) 35 mm
Grey
5
52.5 mm
28.5 mm
500 V
105-105 °C
V0
TRUE
Plug-in connection
Plug-in connection
1
2
FALSE
Thermoplastic
32 A
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 655638 WAGO 769-156 Base terminal 5 mm Pull spring Configuration: L Grey 100 pc(s) Package
User & Safety Instructions
User & Safety Instructions 655638 WAGO 769-156 Base terminal 5 mm Pull spring Configuration: L Grey 100 pc(s) Package
