Name: WAGO 787-1212 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)
Brand: WAGO
SKU: 1429842
Availability: InStock

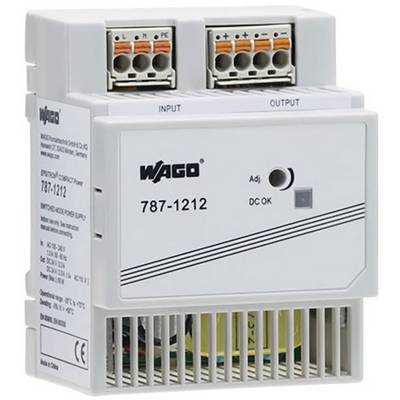

A grey Wago power supply unit with the model number '787-1212', showing input and output terminals along with status indicators.

Circuit diagram of a device with input and output terminals. On the left are PE, L, N, on the right DC+, DC-, separated by a diagonal line.

Switching symbol of a rectifier: Left terminals for PE, L, N; right terminals for DC+, DC-, DC+.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 92.99

€ 89.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Power supply DC 24 V / 2.5 A;

22 V/ 2.5 A
60 W Power
Primary-switched power supply
For devices and systems of protection class II
Input1 -phase
Input voltage range 85 V - 264 V/AC, 125 V - 375 V DC
Connection (components): Jack connector

Technical specifications

Protection type IP20
Ambient temperature -25 °C to +70°C

Nominal input voltage: 100 V/AC
240 V/AC

Type: Synchronised

Product type: Rail mounted PSU (DIN)

Min. input voltage: 85 V AC

Output voltage: 24 V

Input voltage: 85 V - 264 V/AC, 125 V - 375 V DC

Input voltage (max.): 264 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 24 V

No. of outputs: 1 x

Connection: Jack connector

Dim: (L x W x H) 56 x 72 x 90 mm

Weight: 270 g

Output voltage (max.): 22 V

Output voltage (min.): 26 V

Operating temperature (max.): 70 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 787-1212

Content: 1 pc(s)

MTBF: 500000 h

Width: 72 mm

Height: 90 mm

Length: 56 mm

Type: 787-1212

Depth: 89 mm

Connections: Wago 740

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal input voltage

Output voltage (nominal)

Output current (max.) - rounded

Output voltage

Input voltage (max.)

Min. input voltage

Power

Connection

No. of outputs

Max. output current

Output type (power supply units)

Output voltage (max.)

WAGO 787-1212 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:1429842

Fast track dispatch on Thu 5 Nov

9 Piece(s)Conrad Electronic

This article

100 V/AC

24 V

2.5 A

24 V

264 V AC

85 V AC

60 W

Jack connector

1 x

2.5 A

Fixed voltage

22 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

WAGO 787-1001 Rail mounted PSU (DIN) 12 V DC 2 A 24 W No. of outputs:2 x Content 1 pc(s)

Item no:518977

Fast track dispatch on Thu 5 Nov

4 Piece(s)Conrad Electronic

115 V/AC

12 V DC

2 A

DC 10.8 - 18 V can be set

264 V AC

85 V AC

24 W

Spring-loaded terminal

2 x

2 A

Adjustable

18 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

WAGO 787-1002 Rail mounted PSU (DIN) 24 V DC 1.3 A 31.2 W No. of outputs:2 x Content 1 pc(s)

Item no:518978

Fast track dispatch on Thu 5 Nov

6 Piece(s)Conrad Electronic

115 V/AC

24 V DC

1.3 A

DC 22.8 V - 26.4 V can be set

264 V AC

85 V AC

31.2 W

Spring-loaded terminal

2 x

1.3 A

Fixed voltage

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 71.99^*

WAGO 787-1011 Rail mounted PSU (DIN) 12 V DC 4 A 48 W No. of outputs:2 x Content 1 pc(s)

Item no:518979

Dispatches on Fri 18 Dec

Conrad Electronic

115 V/AC

12 V DC

4 A

DC 10.5 V - 15.5 V adjustable

264 V AC

85 V AC

48 W

Spring-loaded terminal

2 x

4 A

Fixed voltage

15.5 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

WAGO 787-1012 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:2 x Content 1 pc(s)

Item no:518980

Fast track dispatch on Thu 5 Nov

9 Piece(s)Conrad Electronic

115 V/AC

24 V DC

2.5 A

DC 22.8 V - 26.4 V can be set

264 V AC

85 V AC

60 W

Spring-loaded terminal

2 x

2.5 A

Fixed voltage

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

WAGO 787-1022 Rail mounted PSU (DIN) 24 V DC 4 A 96 W No. of outputs:2 x Content 1 pc(s)

Item no:518981

Available soon

Conrad Electronic

115 V/AC

24 V DC

4 A

DC 22.8 V - 26.4 V can be set

264 V AC

85 V AC

96 W

Spring-loaded terminal

2 x

4 A

Fixed voltage

26.4 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

WAGO 787-1202 Rail mounted PSU (DIN) 24 V 1.3 A 31.2 W No. of outputs:1 x Content 1 pc(s)

Item no:1429841

Fast track dispatch on Thu 5 Nov

11 Piece(s)Conrad Electronic

100 V/AC

24 V

1.3 A

24 V

264 V AC

85 V AC

31.2 W

Jack connector

1 x

1.3 A

Fixed voltage

26 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

WAGO 787-1216 Rail mounted PSU (DIN) 24 V 4.2 A 100.8 W No. of outputs:1 x Content 1 pc(s)

Item no:1429843

Fast track dispatch on Thu 5 Nov

2 Piece(s)Conrad Electronic

100 V/AC

24 V

4.2 A

24 V

264 V AC

85 V AC

100.8 W

Jack connector

1 x

4.2 A

Fixed voltage

26 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

WAGO 787-1226 Rail mounted PSU (DIN) 24 V 6 A 144 W No. of outputs:1 x Content 1 pc(s)

Item no:1429844

Fast track dispatch on Thu 5 Nov

2 Piece(s)Conrad Electronic

24 V

6 A

24 V

144 W

Jack connector

1 x

6 A

Fixed voltage

26 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 144.99^*

Documents & Downloads

Datasheet

Datasheet 1429842 WAGO 787-1212 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1429842 WAGO 787-1212 Rail mounted PSU (DIN) 24 V 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Description

Primary-switched power supplies, 1-phase

This text is machine translated.

Features

Parallel switching, daisy-Chainable
Galvanically isolated output voltage (SELV) according to EN 60950-1/UL 60950-1
Stage-profile for standards-compliant installation in the distribution boards
Removable front panel and screw devices ideal for installation in the system distributor or device installation alternatives
Plug-in picoMAX ® connection technology (no tools needed)
Galvanically isolated output voltage (SELV) according to EN 60950-1/UL 60950-1

Description

Primary-switched power supplies, 1-phase

This text is machine translated.

Features

Parallel switching, daisy-Chainable
Galvanically isolated output voltage (SELV) according to EN 60950-1/UL 60950-1
Stage-profile for standards-compliant installation in the distribution boards
Removable front panel and screw devices ideal for installation in the system distributor or device installation alternatives
Plug-in picoMAX ® connection technology (no tools needed)
Galvanically isolated output voltage (SELV) according to EN 60950-1/UL 60950-1
