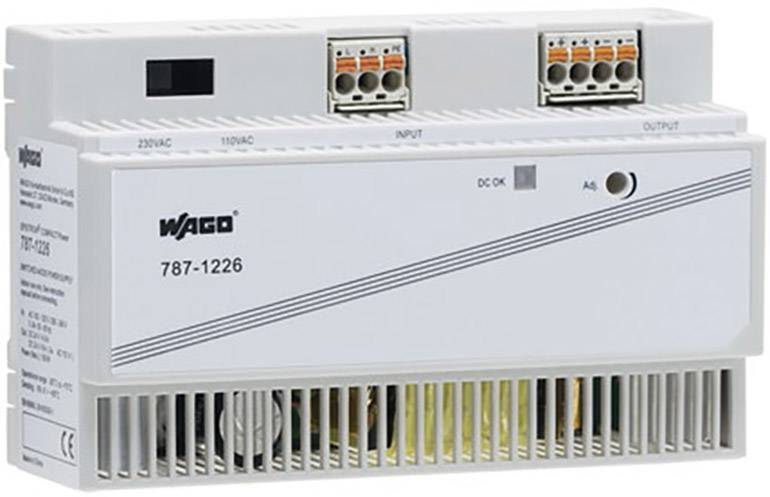

WAGO 787-1226 Rail mounted PSU (DIN) 24 V 6 A 144 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Power supply DC 24 V / 6 A;
- 26 V/ 6 A
- 144 W Power
- Primary-switched power supply
- For devices and systems of protection class II
- Input1 -phase
Technical specifications
- Protection type IP20
- Ambient temperature -25 °C to +70°C
- Type
Synchronised
- Product type
Rail mounted PSU (DIN)
- Output voltage
24 V
- Max. output current
6 A
- Output current (max.) - rounded
6 A
144 W
- Phases
1
- Output voltage (nominal)
24 V
- No. of outputs
1 x
- Dim
(L x W x H) 56 x 144 x 90 mm
- Weight
510 g
- Output voltage (max.)
26 V
- Output voltage (min.)
22 V
- Manufacturer part #
787-1226
- Content
1 pc(s)
- MTBF
500000 h
- Width
144 mm
- Height
90 mm
- Length
56 mm
- Type
787-1226
- Depth
89 mm
- Connections
Wago 740
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1429844 WAGO 787-1226 Rail mounted PSU (DIN) 24 V 6 A 144 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1429844 WAGO 787-1226 Rail mounted PSU (DIN) 24 V 6 A 144 W No. of outputs:1 x Content 1 pc(s)
Description
Primary-switched power supplies, 1-phase
This text is machine translated.
This text is machine translated.
Features
- Parallel switching, daisy-Chainable
- Stage-profile for standards-compliant installation in the distribution boards
- Screw devices for alternative installation in the system distributor or device installation
- Plug-in picoMAX ® connection technology (no tools needed)
- Galvanically isolated output voltage (SELV) according to EN 60950-1/UL 60950-1
