WAGO 832-1204/000-9034 Edge connector (sockets) 12 pc(s)

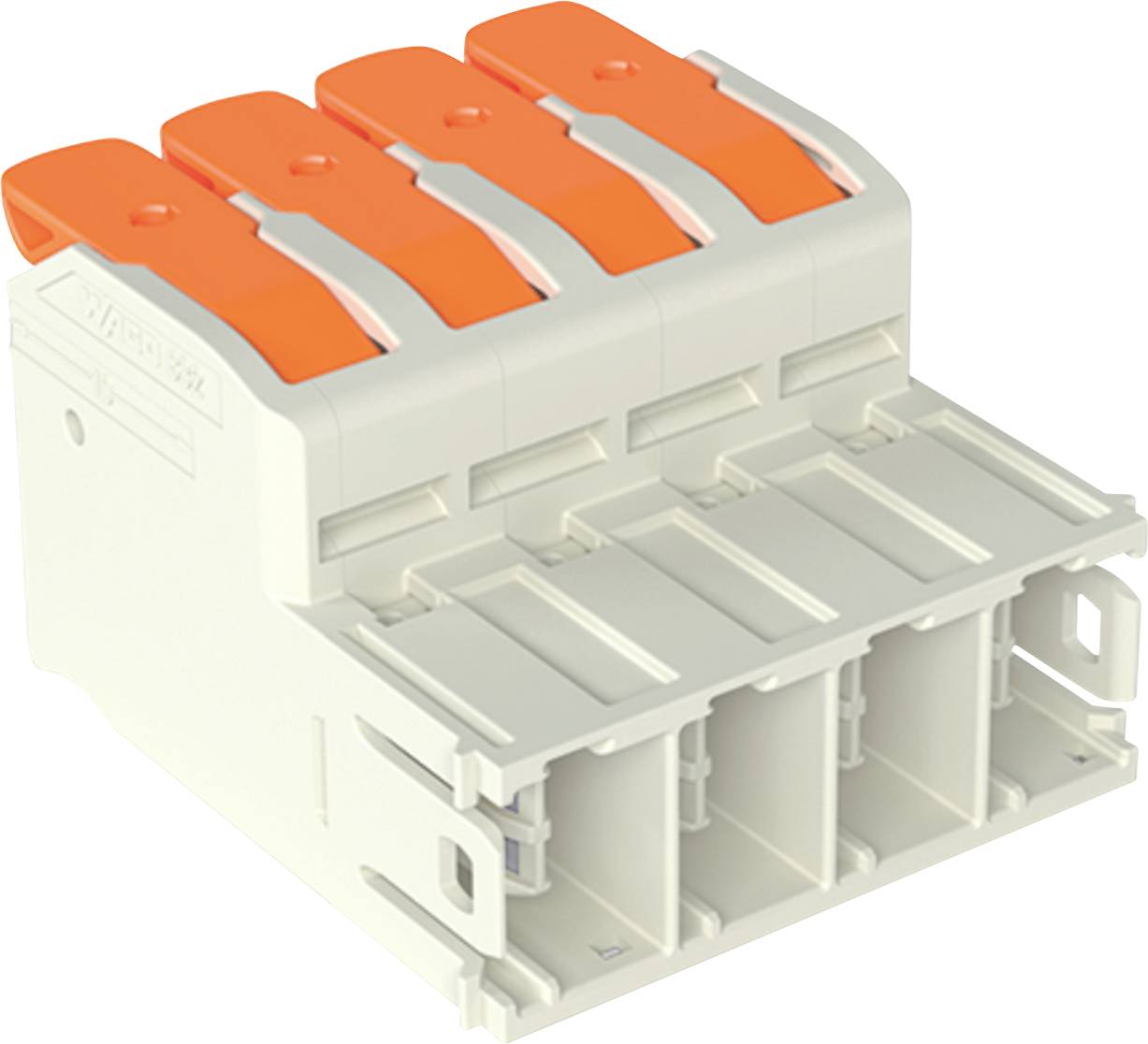

A four-port terminal block with orange levers and gray housing, used for connecting electrical wires safely and securely.
'Electrical connector diagram showing dimensions: 45.2mm height, 46.5mm width, 50.6mm depth, 27.7mm spacing, and 16.5mm other dimension.'
1/2
Product type
Edge connector (sockets)
Content
12 pc(s)
Case material
PA
Manufacturer part #
832-1204/000-9034
Type
832-1204/000-9034
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

1-conductor-pin strip lever push-in CAGE CLAMP®, light GRAY

  • Content 12 pc(s)

Technical specifications

Product type

Edge connector (sockets)

Case material

PA

Manufacturer part #

832-1204/000-9034

Content

12 pc(s)

Type

832-1204/000-9034

Rated surge voltage

8 kV

Test current

76 A

Operation

Lever

Rated voltage

1000 V

Flammability rating

V0

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3636746 WAGO 832-1204/000-9034 Edge connector (sockets) 12 pc(s)

Description

Lever push-in CAGE CLAMP®, light gray

This text is machine translated.
