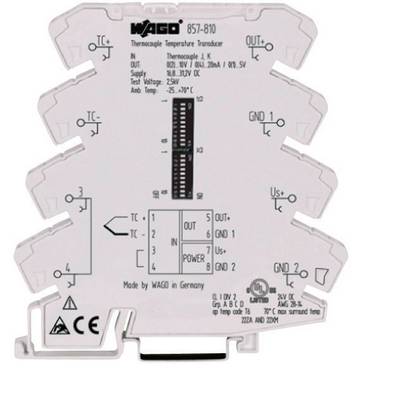

WAGO 857-810 WAGO 857-810 Configurable Temperature Measuring Transducer For Thermocouples Type J And K . 857-810
EAN:
Part number:
Item no:
Type
857-810
Supply voltage
16,8 V - 31,2 V
Input signal
Thermoelemente
Output signal
0 - 20 mA, 4 - 20 mA, 0 - 10 V, 2 - 10 V, 0 - 5 V, 1 - 5 V, 0 - 10 mA, 2 - 10 mA
Temperature range
Type J: -150 - +1200 °C ·Type K: -150 - +1350 °C
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Configurable temperature measuring transducer for thermocouples type J and K .
- JUMPFLEX® measuring transducer
Technical specifications
- Transmission error: < +/- 0.1% of final value
- Type
857-810
- Supply voltage
16,8 V - 31,2 V
- Input signal
Thermoelemente
- Output signal
0 - 20 mA, 4 - 20 mA, 0 - 10 V, 2 - 10 V, 0 - 5 V, 1 - 5 V, 0 - 10 mA, 2 - 10 mA
- Temperature range
Type J: -150 - +1200 °C ·Type K: -150 - +1350 °C
- Load
2 kΩ / 600 Ω
- Dim
(L x W x H) 94 x 6 x 96 mm
- Connection
Spring
- Setting
DIP switch
- Manufacturer part #
857-810
- Width
6 mm
- Height
96 mm
- Length
94 mm
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-25 °C
0.045 kg/m
FALSE
-25-70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 737794 WAGO 857-810 WAGO 857-810 Configurable Temperature Measuring Transducer For Thermocouples Type J And K . 857-810
User & Safety Instructions
User & Safety Instructions 737794 WAGO 857-810 WAGO 857-810 Configurable Temperature Measuring Transducer For Thermocouples Type J And K . 857-810
Description
Configurable temperature measuring transducers for thermocouples type J and K. Configured through DIP switches.
