Walther Werke FW231506SK FW231506SK CEE plug 32 A 5-pin 200 V, 415 V 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 9.49 / piece)
€ 9.49
incl. VAT
14-day return policy included
Highlights & Details
CEE NEO plug classic 32A 5P 6h
- CEE NEO plug classic 32A 5P 6h
- Protection class IP54
- With screwing technology
- This text is machine translated.
Technical specifications
- Voltage according to IEC 60309 (series I) 200/346 V - 240/415 V
- Time setting 6 h
- Colour code: Red
- Protection class (IP) IP54
- Connection technology: Screw terminal
- Cable entry: Screw connection
- With straight plug
- Material: Plastic
- Contact material CuZn
- Surface treatment: Contacts untreated
- Conductor cross-section (rigid): 2.5 - 10 mm²
- Conductor cross-section (flexible): 2.5 - 6 mm²
- Cable diameter 11.9 - 22.2 mm
- Sheath length (L, N) 55 mm
- Sheath length (PE): 65 mm
- Stripped insulation length 9 - 10 mm.
- Max. Torque of screw connection 1.2 Nm
- Min Torque screwed cable gland 4 Nm
- Flammability class of housing: V2
- Flammability class of the contact carrier: V0
- Product type
CEE plug
- Nominal voltage
200 V
415 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
CEE socket (5-pin, 32 A)
IP54

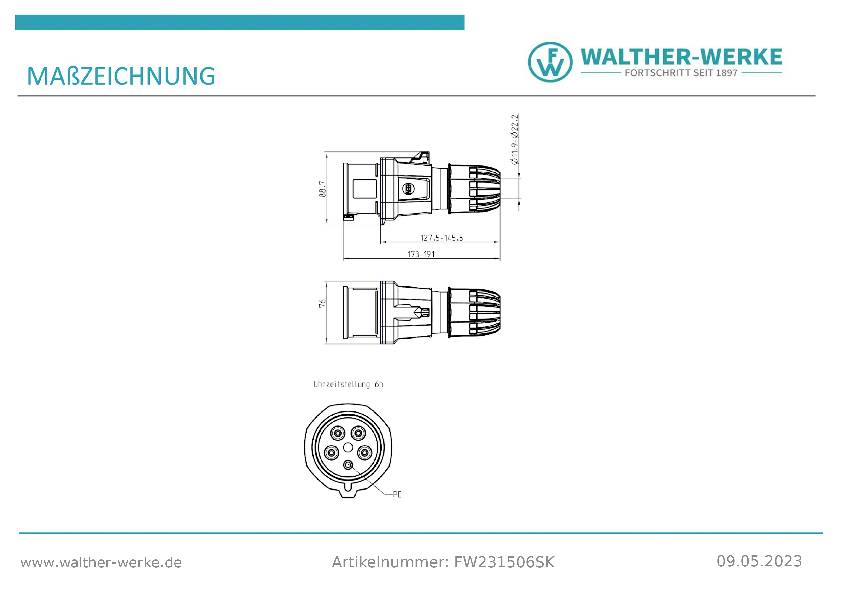

- Dim
(L x W x H) 180 x 70 x 80 mm
- Length
180 mm
- Width
70 mm
- Height
80 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3015695 Walther Werke FW231506SK FW231506SK CEE plug 32 A 5-pin 200 V, 415 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3015695 Walther Werke FW231506SK FW231506SK CEE plug 32 A 5-pin 200 V, 415 V 1 pc(s)
Description
Features
- With screwing technology
- 32A 5P 6H IP54 200/346V - 240/415V~
- With red color ring coding
- Housing made of PA6 material
- With highly heat resistant contact carrier made of PA66 material
- And external screw connection with strain relief clamp
Scope of delivery
- CEE NEO plug classic 32A 5P 6h
- User manual.
